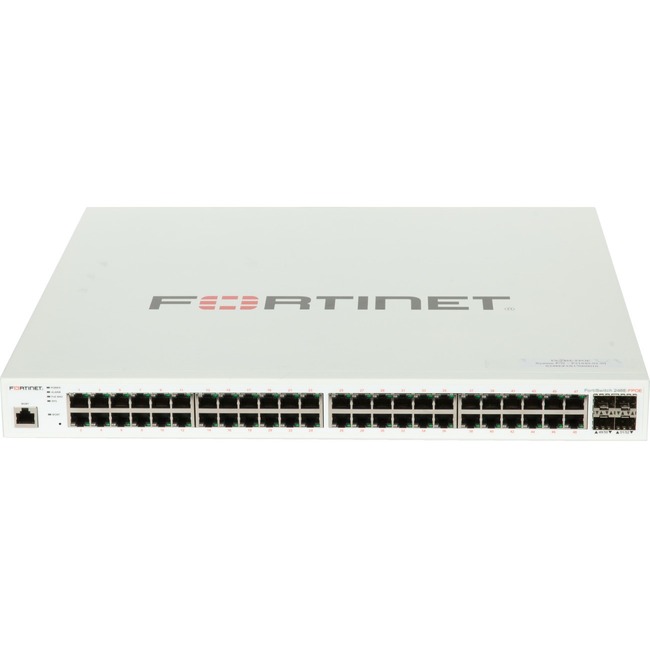

FORTINET FS-248E-FPOE L2/L3 POE+ SWITCH

Security, Performance, and Manageability

The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threatconscious businesses of all sizes

Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single-pane-of-glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch and campus deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.

Security Fabric Integration through FortiLink

FortiLink is an innovative proprietary management protocol that allows our FortiGate Next-Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage.

HIGHLIGHTS | Entry | 100 Series

• Entry level switch
• 8-48 GE ports, PoE+capable
• Desktop to wiring closet
• 2-4 GE SFP uplink ports
• 4x 10GE SFP+ uplink ports

Mid-Range | 200 Series

• Mid-level switch
• 24-48 GE ports, PoE+capable
• Typical wiring closet switch
• 4 GE SFP uplink ports

Premium | 400 Series

• Enterprise switch
• 24-48 GE and Multi-Gig port options, PoE+ and UPOE options
• Larger wiring closet or high throughput requirements
• 4x 10 GE SFP+ uplink ports

Aggregation | 500 Series

• Aggregation switch
• 24-48 GE ports, PoE+capable
• Larger wiring closet or high throughput requirements
• 4x 10 GE SFP+ and 2x 40 GE QSFP uplink ports

DEPLOYMENT OVERVIEW

FortiSwitch is commonly managed and deployed through our FortiGate with FortiLink but can also be deployed and managed in non-FortiGate environments

FortiGate

• Deployment and management via FortiLink
• Security extended from NGFW
• Most common Fortinet deployment model

Non-FortiGate

• Standalone GUI or CLI
• Manage at scale with FortiSwitch Manager
• Industry standard, no Fortinet Security Fabric integration

General Information
Manufacturer	Fortinet, Inc
Manufacturer Part Number	FS248EFPOE
Manufacturer Website Address	http://www.fortinet.com
Brand Name	Fortinet
Product Line	FortiSwitch
Product Series	200
Product Model	FS-248E-FPoE
Product Name	FortiSwitch FS-248E-FPoE Ethernet Switch
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	48
Uplink Port	Yes
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	4 x Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details	48 x Gigabit Ethernet PoE
Media & Performance
Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-X
Network Technology	10/100/1000Base-T
I/O Expansions
Total Number of Expansion Slots	4
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	4
Network & Communication
Layer Supported	3
Networking Standards	IEEE 802.3ba
Networking Standards	IEEE 802.3az
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.3af
Networking Standards	IEEE 802.3bj
Networking Standards	IEEE 802.3bz
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.1s
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.3ae
Networking Standards	IEEE 802.3ad
Networking Standards	IEEE 802.3bm
Networking Standards	IEEE 802.1w
Networking Standards	IEEE 802.3at
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.1ad
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.1D
Networking Standards	IEEE 802.3z
Networking Standards	IEEE 802.1AX
Networking Standards	IEEE 802.1Q
Management & Protocols
Manageable	Yes
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	740 W
Frequency	60 Hz
Frequency	50 Hz
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	2
Power Consumption	855.02 W
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.3"
Depth	16.1"
Weight (Approximate)	13.44 lb
Miscellaneous
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Warranty
Limited Warranty	Lifetime
