ADVANTECH

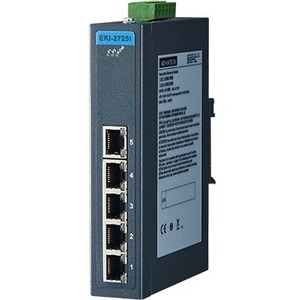

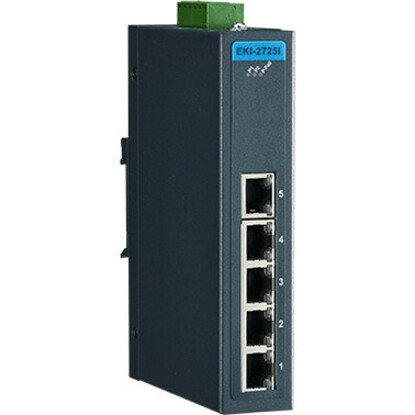

ADVANTECH EKI-2725-CE 5-port Ind. Unmanaged GbE Switch
Mfg Part Number: EKI-2725-CE , Item #: 2840462
Image may not reflect the actual item.
Price: $209.99
Quantity:
In Stock: 155
In Stock: 155
No Sales Tax except these states
, PO and Wire.
Manufacturer Warranty Policy:
The EKI-2725 supports Gigabit Ethernet. The power is a +12 ~ 48 V DC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2725 has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2725 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.
Main Specification
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | EKI-2725-CE |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Series | EKI-2000 |
| Product Model | EKI-2725 |
| Product Name | 5-port Ind. Unmanaged GbE Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Form Factor | Wall Mountable |
| Height | 5.5" |
| Width | 1.2" |
| Depth | 3.7" |
| Number of Ports: | 5 x RJ45 | |
| Data Rate: | 10 Mb/s, 100 Mb/s, 1 Gb/s | |
| Interface Type: | Ethernet, SFP | |
| Supply Voltage - Min: | 12 V | |
| Supply Voltage - Max: | 48 V | |
| Minimum Operating Temperature: | - 10 C | |
| Maximum Operating Temperature: | + 60 C | |
| Power Consumption: | 2.5 W | |
| Dimensions: | 140 mm x 95 mm x 30 mm |
