CHELSIO

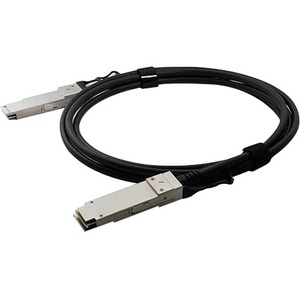

CHELSIO QTAPCABLE28-2M TWINAX 100GB PASSIVE CABLE - 2-METER
Mfg Part Number: QTAPCABLE28-2M , Item #: 2839354
Image may not reflect the actual item.
Price: $216.35
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 01, 2024
No Sales Tax except these states
, PO and Wire.
Chelsio's QTAPCABLE28-2M 100Gb/s QSFP28 to QSFP28 Direct Attach Twinaxial Passive cables are designed and certified for use with Chelsio's 100 Gigabit Ethernet Unified Wire adapters. These Twinaxial cables offer a cost- effective and power-efficient cabling solution for high-speed data applications.
The Chelsio QTAPCABLE28-2M 2meter copper cable is compatible with Chelsio's T6- based Unified Wire adapters. The T6 adapters support PCI Express 3.0 host bus interface, and are optimized for storage, cloud computing, HPC, virtualization and other datacenter applications. The sixth-generation T6 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP, iSCSI, FCoE, iWARP RDMA, IPsec, TLS/SSL, DTLS and SMB 3.X crypto processing. As a result, the system benefits from higher bandwidth, lower latency and reduced power consumption.
The Chelsio QTAPCABLE28-2M 2meter copper cable is compatible with Chelsio's T6- based Unified Wire adapters. The T6 adapters support PCI Express 3.0 host bus interface, and are optimized for storage, cloud computing, HPC, virtualization and other datacenter applications. The sixth-generation T6 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP, iSCSI, FCoE, iWARP RDMA, IPsec, TLS/SSL, DTLS and SMB 3.X crypto processing. As a result, the system benefits from higher bandwidth, lower latency and reduced power consumption.
Main Specification
| General Information | |
| Manufacturer | Chelsio Communications |
| Manufacturer Part Number | QTAPCABLE28-2M |
| Manufacturer Website Address | http://www.chelsio.com |
| Brand Name | Chelsio |
| Product Model | QTAPCABLE28-2M |
| Product Name | Twinax 100Gb Passive Cable |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Twinaxial |
| Cable Length | 6.56 ft |
| Connector Type on First End | QSFP28 Network - Male |
| Connector on First End Details | 1 x QSFP28 Network - Male |
| Connector Type on Second End | QSFP28 Network - Male |
| Connector on Second End Details | 1 x QSFP28 Network - Male |
| Device Supported | Router |
| Device Supported | Server |
| Device Supported | Hub |
| Device Supported | Network Device |
| Device Supported | Switch |
| American Wire Gauge | 30 AWG |
| Data Transfer Rate | 100 Gbit/s |
| Features | Passive |
| Features | Crosstalk Protection |
| Miscellaneous | |
| Compatibility | Chelsio Communications Adapters:
|
| Environmentally Friendly | Yes |
| Country of Origin | Malaysia |
