SEASONIC

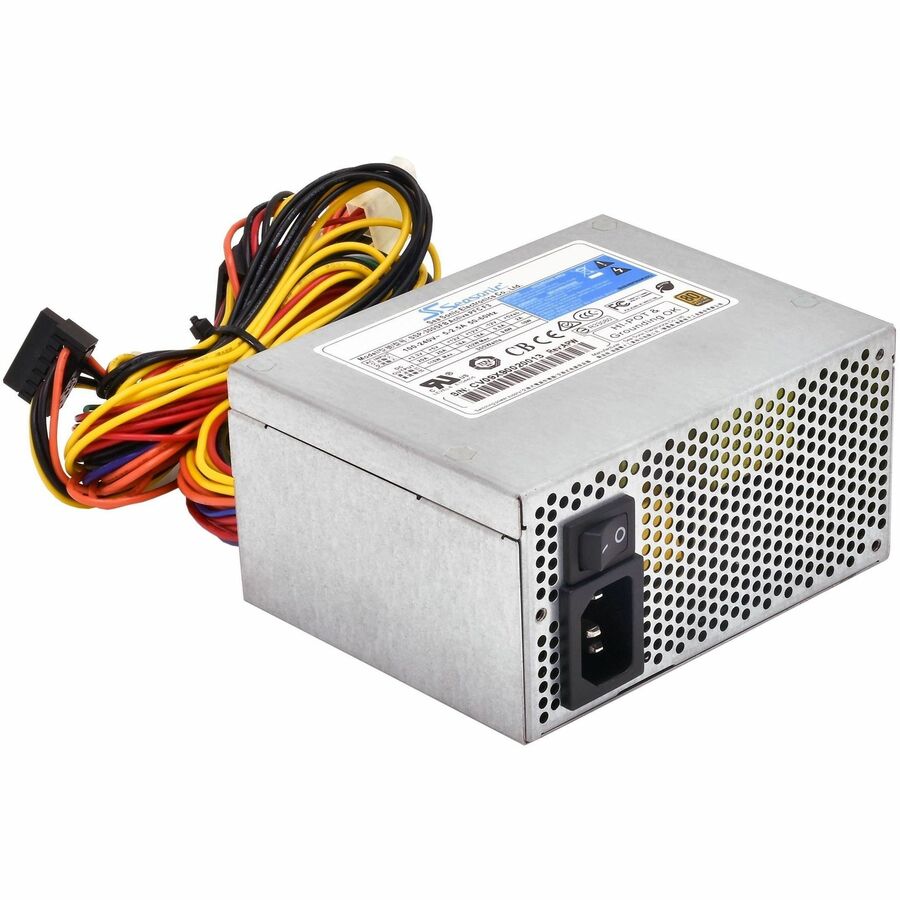

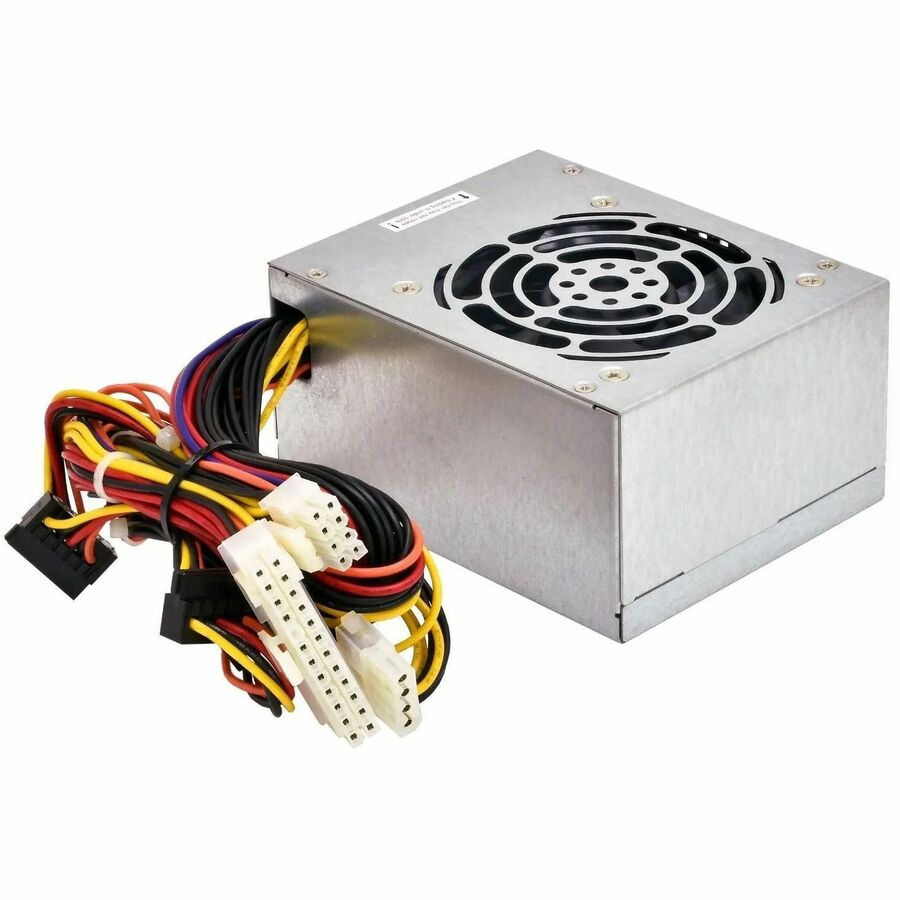

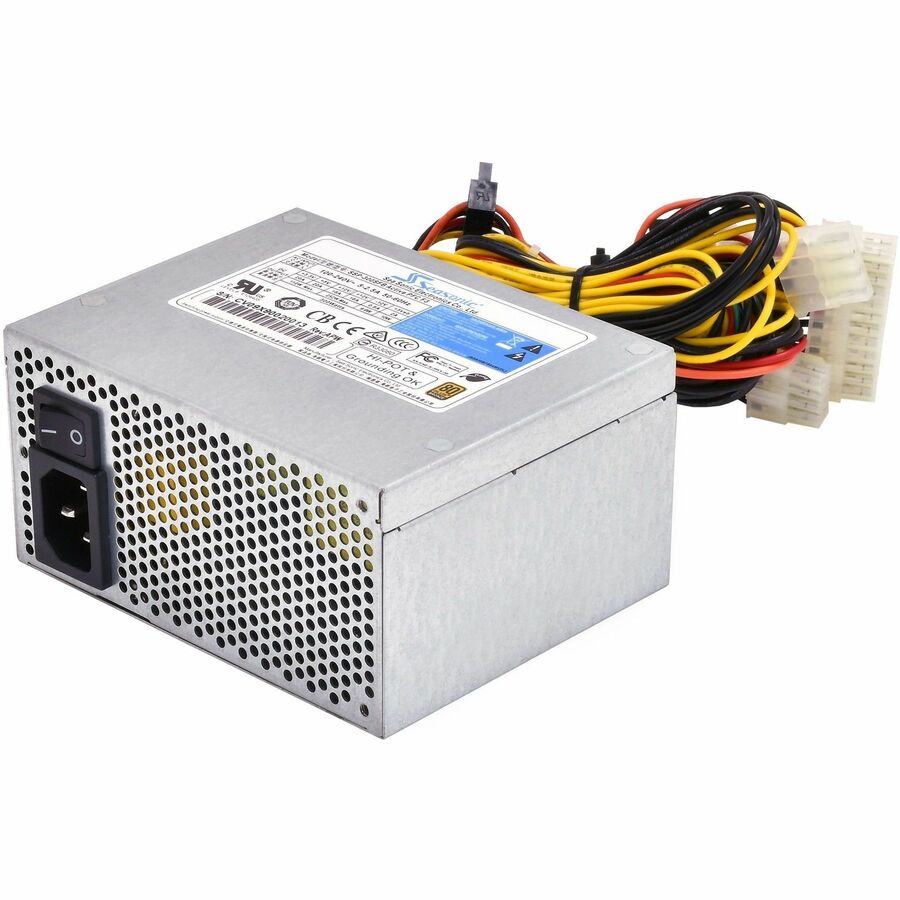

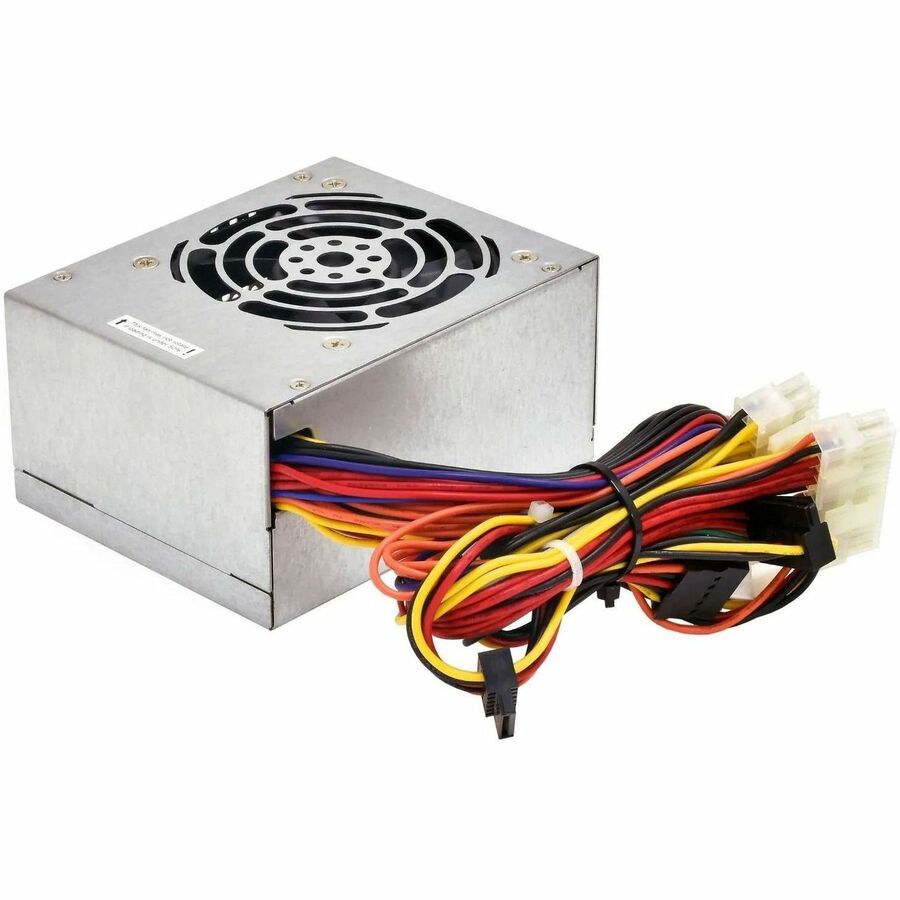

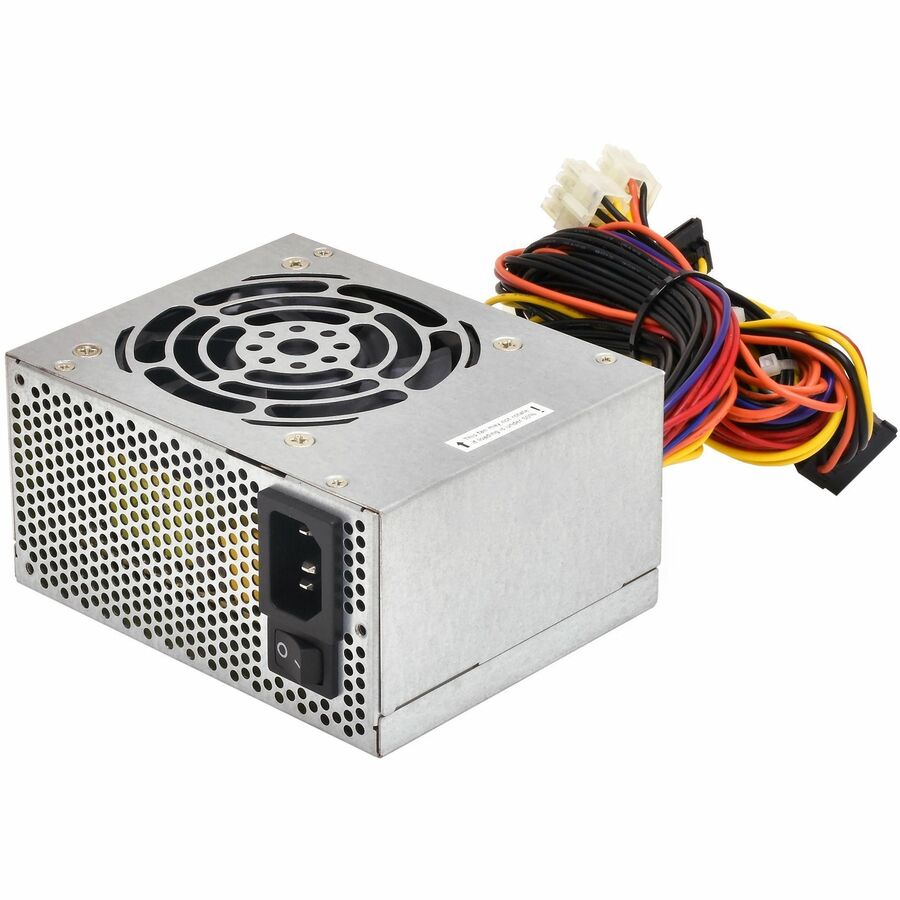

Seasonic SSP-300SFB 300W 80 PLUS Bronze SFX 12 V v.2.31 Power Supply w/ Active PFC F3
Mfg Part Number: SSP-300SFB , Item #: 2831137
Image may not reflect the actual item.
Price: $82.62
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Nov 03, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Sea Sonic Electronics Co., Ltd |
| Manufacturer Part Number | SSP-300SFB |
| Manufacturer Website Address | http://www.seasonicusa.com |
| Brand Name | Seasonic |
| Product Series | SFX |
| Product Model | SSP-300SFB |
| Product Name | SFX SSP-300SFB 300W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | SFX12V |
| Specification Compliance | ATX12V |
| Efficiency | 85% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Diameter | 80 mm |
| Protection Type | Over Voltage |
| Protection Type | Inrush Current |
| Protection Type | Over Power |
| Protection Type | Short Circuit |
| Features | Low Noise |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Number of +12V Rails | 2 |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 3.3 V DC |
| Output Voltage | -12 V DC |
| Output Voltage | 5 V SB |
| Output Voltage | 12 V DC |
| Output Voltage | 5 V DC |
| Output Voltage Detail | 12 V DC @ 18 A |
| Output Voltage Detail | 5 V DC @ 20 A |
| Output Voltage Detail | -12 V DC @ 0.8 A |
| Output Voltage Detail | 3.3 V DC @ 20 A |
| Output Voltage Detail | 5 V SB @ 2 A |
| Output Power | 300 W |
| Input Frequency | 63 Hz |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 2.5" |
| Width | 4.9" |
| Miscellaneous | |
| Certifications & Standards |
|
| Energy Efficiency Certification | 80 Plus Bronze |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
Specifications
- Mfr Part Number: SSP-300SFB
- Features:
- SATA-ready
- High efficiency and reliability
- Low ripple and noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- Fanless Mode (up to 30 % system load)
- Type:Â SFX 12 V v.2.31
- Total Power: 300 W
- Input:
- Current: 100A max.
- Frequency: 47 - 63 Hz
- Power Factor Correction: 95% typical
- Efficiency: >85Â %
- MTBF: >100,000 hours
- Output: +3.3V @ 14A, +5V @ 17A, +12V1 @ 18A, +12V2 @ 18A,  -12V @ 0.8A, +5VSB @ 2A
- Connector: Main Power -Â ATX 12V;Â Peripherals - SATA, HDD
- Safety: CB, CUL, CCC, TUV
- EMI/EMC: BSMI, CE, FCC, RCM
- Dimension (WxLxH):Â 125.0 x 100.0 x 63.5Â mm
