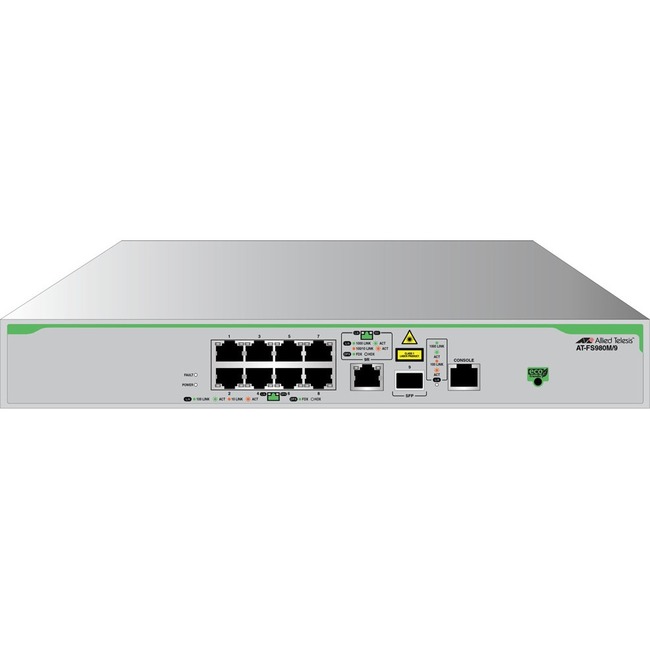

ALLIED TELESIS AT-FS980M/9-10 8X10/100T PORTS AND 1XGGB/SFP COMBO PORT FIXED AC PS US PWR CORD

Allied Telesis CentreCOM FS980M switches feature centralized network management via Allied Telesis Autonomous Management Framework™ (AMF), and a redundant system with Virtual Chassis Stacking (VCStack™). These high-performing switches deliver flexible uplink connectivity and lower management costs.

Overview

FS980M switches provide high-performance Fast Ethernet connectivity right where you need it-at the network edge. Flexible and robust, the FS980M series provide total security and management features for enterprises of all sizes. They also support video surveillance and Point of Sale (POS) applications.

Reduce network running costs by automating and simplifying many dayto-day tasks-an FS980M is the ideal AMF edge switch when an AMF Master switch is available in the network.

With both copper and Power over Ethernet (PoE) models, the FS980M Series has the ideal solution for your network. All models are available with 8, 16, 24 and 48 × 10/100TX Fast Ethernet ports. PoE models support the IEEE 802.3at (PoE+) standard, delivering up to 30 Watts of power per port for video surveillance and security applications. The dual power supply model provides system and PoE redundancy to maximize network and end-point uptime.

Key Features | Allied Telesis Autonomous Management Framework™(AMF)

• AMF is a sophisticated suite of management tools that provides a simplified approach to network management. Common tasks are automated, or made so simple, that your network can run without the need for highly-trained and expensive network engineers. Powerful features like centralized management, auto-backup, autoupgrade, auto-provisioning and auto-recovery enable Plug-and-Play networking and zero-touch management.
• AMF secure mode increases network security with management traffic encryption, authorization, and monitoring.
• The FS980M can function as an AMF edge switch when an AMF Master switch is available in the network.

EPSRingTM

• Ethernet Protection Switched Ring (EPSRing) allows several FS980M switches to join a protected ring, capable of recovery within as little as 50ms. This feature is perfect for high availability in enterprise networks.

Layer 3 Routing

• The FS980M Series provides static IPv4 routing at the edge of the network, as well as support for RIPv1 and RIPv2.

VCStackTM

• FS980M/28, FS980M/28PS, FS980M/52, FS980M/52PS , FS980M/28DP models.
• Create a VCStack of up to four units with 2 Gbps of stacking bandwidth per each unit. VCStack provides a highly-available system in which network resources are spread out across stacked units, minimizing the impact should any unit fail.

General Information
Manufacturer	Allied Telesis, Inc
Manufacturer Part Number	AT-FS980M/9-10
Manufacturer Website Address	http://www.alliedtelesis.com
Brand Name	Allied Telesis
Product Line	CentreCOM
Product Series	FS980M
Product Model	FS980M/9
Product Name	CentreCOM FS980M/9 Ethernet Switch
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	8
Uplink Port	Yes
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	1 x Gigabit Ethernet TP/SFP Combo
Port/Expansion Slot Details	8 x Gigabit Ethernet Network
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Network Technology	1000Base-X
I/O Expansions
Total Number of Expansion Slots	1.0
Expansion Slot Type	SFP (mini-GBIC)
Shared SFP Slot	Yes
Number of SFP Slots	1
Network & Communication
Layer Supported	3
Networking Standards	IEEE 802.1v
Networking Standards	IEEE 802.1x
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.1w
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.1D
Networking Standards	IEEE 802.1ab
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.2
Networking Standards	IEEE 802.1Q
Networking Standards	IEEE 802.1AX
Networking Standards	IEEE 802.3z
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.3ad
Management & Protocols
Manageable	Yes
Power Description
Frequency	50 Hz
Frequency	60 Hz
Power Source	Power Supply
Number of Power Supplies Installed	1
Power Consumption	6.30 W
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Form Factor	Wall Mountable
Height	1.7"
Width	13"
Depth	8"
Weight (Approximate)	4.41 lb
Miscellaneous
Package Contents	CentreCOM FS980M/9 Ethernet Switch US Power Cord
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
