B+B SmartWorx/Advantech

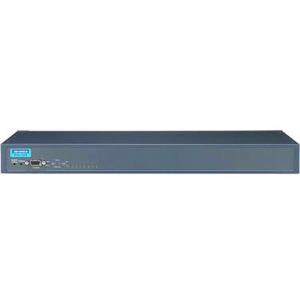

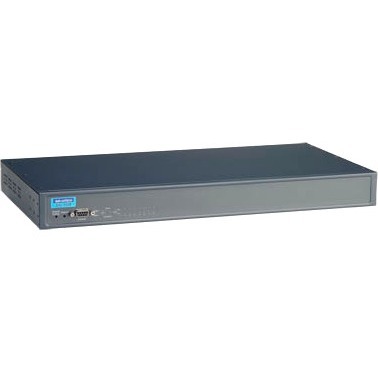

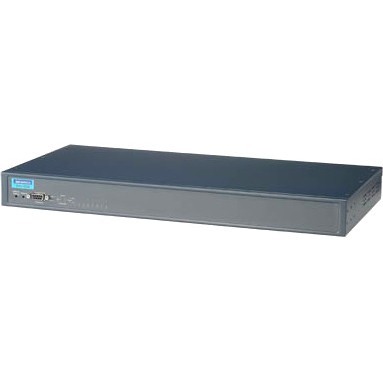

B+B SmartWorx/Advantech EKI-1528-CE 8-PORT RS232/422/485 SERIAL SERVER, 2 ETH, -10~60C
Mfg Part Number: EKI-1528-CE , Item #: 2814305
Image may not reflect the actual item.
Price: $943.38
Quantity:
More to Come
Last Updated: Jul 19, 2025
No Sales Tax except these states
, PO and Wire.
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can't connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.
Main Specification
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | EKI-1528-CE |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Name | 8-port RS-232/422/485 Serial Device Server |
| Packaged Quantity | 1 |
| Product Type | Device Server |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Management Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of Serial Ports | 8 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 10.2" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 5 Year |
