NETGEAR

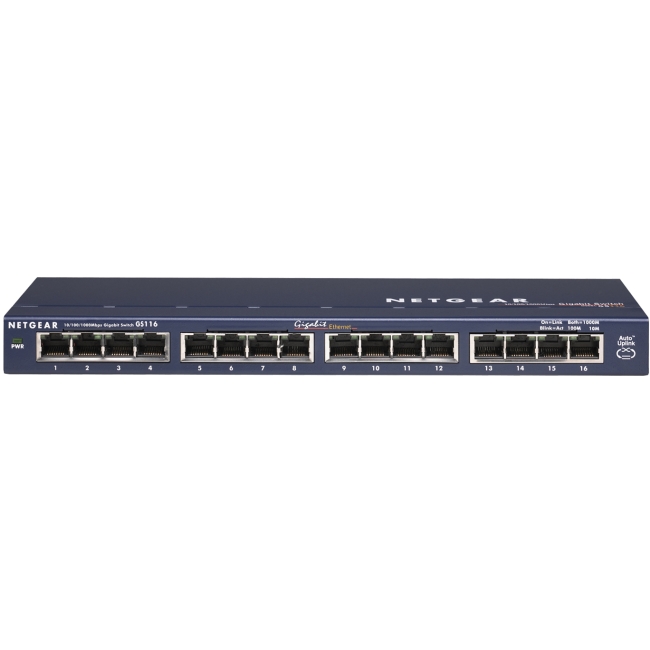

GS116NA Netgear ProSafe GS116 16-port Gigabit Ethernet Switch

Mfg Part Number:  GS116NA
Image may not reflect the actual item.
Price: $118.00
Quantity:
In Stock: 129
Last Updated: Apr 30, 2025
No Sales Tax except these states
, PO and Wire.

Now you can have a powerful, high-speed network on a small scale. NETGEAR's GS116 Gigabit Ethernet Switch lets you build a system that provides a full, dedicated 1000 Mbps connections so you can move very large files across your network instantly. The standardsbased GS116 helps to protect your existing and future network infrastructure investments by painlessly integrating other 10, 100, and 1000 Mbps devices. This potent switch is ideal for workgroups or quickly upgrading workstations to full Gigabit speed, plus it's packed with ease-of-use features to simplify your workday experience. It's compact design fits neatly into small work spaces and, since it's self-cooling without a fan, it runs silently and unobtrusively.

Main Specification
General Information
Manufacturer Netgear, Inc
Manufacturer Part Number GS116NA
Manufacturer Website Address http://www.netgear.com
Brand Name Netgear
Product Line ProSafe
Product Model GS116
Product Name ProSafe GS116 16-port Gigabit Ethernet Switch
Product Type Ethernet Switch
Interfaces/Ports
Total Number of Network Ports 16
Number of Network (RJ-45) Ports 16
Port/Expansion Slot Details 16 x Gigabit Ethernet Network
Media & Performance
Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 5
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Network & Communication
Layer Supported 2
Power Description
Power Source Power Adapter
Power Consumption 25 W
Physical Characteristics
Height 1.1"
Width 11.2"
Depth 4.1"
Weight (Approximate) 2 lb
Miscellaneous
Package Contents
  • ProSafe GS116 16-port Gigabit Switch
  • Wall-mount kit
  • AC adapter
  • Installation guide
  • Warranty/Support information card
Additional Information
  • Latency (100 to 100 Mbps): 40 µ (max)
  • Latency (1000 to 1000 Mbps): 10 µ (max)
  • Acoustic Noise: 0 dB

Compatibility:

  • Network software (e.g., Windows, Linux, Mac OS)
Certifications & Standards
  • IEEE 802.3i: 10BASE-T Ethernet
  • IEEE 802.3u: 100BASE-TX Fast Ethernet
  • IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
  • IEEE 802.1p
  • WWR scheduling

Safety Agency Approvals:

  • CE Mark
  • Commercial UL listed (UL 1950)
  • C-Tick

Electromagnetic Compliance:

  • CE mark
  • Commercial FCC Part 15 Class A
  • EN 55 022 (CISPR 22)
  • Class A VCCI
  • Class A C-Tick
System Requirements
  • UTP Category 5 or better cables
  • Network card for each PC or server
Warranty
Limited Warranty Lifetime
product information

General Information
Manufacturer Netgear Inc
Manufacturer Part Number GS116NA
Manufacturer Website Address www.netgear.com
Product Name GS116 16-port Gigabit Ethernet Switch
Marketing Information

Now you can have a powerful, high-speed network on a small scale. NETGEAR's GS116 Gigabit Ethernet Switch lets you build a system that provides a full, dedicated 1000 Mbps connections so you can move very large files across your network instantly. The standardsbased GS116 helps to protect your existing and future network infrastructure investments by painlessly integrating other 10, 100, and 1000 Mbps devices. This potent switch is ideal for workgroups or quickly upgrading workstations to full Gigabit speed, plus it's packed with ease-of-use features to simplify your workday experience. It's compact design fits neatly into small work spaces and, since it's self-cooling without a fan, it runs silently and unobtrusively.
Product Type Ethernet Switch
Interfaces/Ports
Interfaces/Ports 16 x 10/100/1000Base-T LAN
Interfaces/Ports Details 16 x RJ-45 10/100/1000Base-T Auto-sensing/Auto MDI/MDI-X LAN
Media & Performance
Connectivity Media Category 5 UTP
Data Transfer Rate
  • 10Mbps Ethernet Half-duplex
  • 20Mbps Ethernet Full-duplex
  • 100Mbps Fast Ethernet Half-duplex
  • 200Mbps Fast Ethernet Full-duplex
  • 1Gbps Gigabit Ethernet Half-duplex
  • 2Gbps Gigabit Ethernet Full-duplex
    		•
    Performance
  • 32Gbps Bandwidth Non-blocking
  • 14800pps Forwarding Rate 10Mbps Port(s)
  • 148000pps Forwarding Rate 100Mbps Port(s)
  • 1488000pps Forwarding Rate 1Gbps Port(s)
    		•
    I/O Expansions
    Expansion Slots Not Applicable
    Slot Details Not Applicable
    Modules Not Applicable
    Network & Communication
    Switching Method Store-and-forward
    Supported Layers 2 Switching
    Stackable Not Applicable
    Address Table 8K MAC Addresses
    Management & Protocols
    Management Not Applicable
    Memory
    Memory 512KB Buffer Memory per Port
    Controls/Indicators
    Status Indicators
  • Power, activity and link indicators for each port
  • Link and speed indicators built into each RJ-45 port
    		•
    Power Description
    Input Voltage 5 V DC Device
    Input Current 5 A @ 5V DC
    Power Consumption 25 W Maximum
    Environmental Conditions
    Temperature 0 °C (32 °F) to 40 °C (104 °F) Operating
    Humidity 10% to 90% Non-condensing Operating
    Thermal Dissipation 38.8 BTU/h
    Physical Characteristics
    Form Factor
  • Wall-mountable
  • Desktop
    		•
    Dimensions 1.06" Height x 11.22" Width x 4.06" Depth
    Shipping Dimensions 4.5" Height x 6.6" Width x 13.6" Depth
    Weight 2 lb
    Shipping Weight 3.9 lb
    Miscellaneous
    Package Contents
  • 16-port Gigabit Switch GS116
  • Wall-mount kit
  • AC adapter
  • Installation guide
  • Warranty/Support information card
    		•
    Additional Information
  • Latency (100 to 100 Mbps): 40 µ (max)
  • Latency (1000 to 1000 Mbps): 10 µ (max)
  • Acoustic Noise: 0 dB

    • Compatibility:

  • Network software (e.g., Windows, Linux, Mac OS)
    		•
    System Requirement
  • UTP Category 5 or better cables
  • Network card for each PC or server
    		•
    Certifications & Standards
  • IEEE 802.3i: 10BASE-T Ethernet
  • IEEE 802.3u: 100BASE-TX Fast Ethernet
  • IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
  • IEEE 802.1p
  • WWR scheduling

    • Safety Agency Approvals:

  • CE Mark
  • Commercial UL listed (UL 1950)
  • C-Tick

    • Electromagnetic Compliance:

  • CE mark
  • Commercial FCC Part 15 Class A
  • EN 55 022 (CISPR 22)
  • Class A VCCI
  • Class A C-Tick
    		•
    Manufactures Warranty
    Standard Warranty 5 Year(s)
    Parts Warranty/Labor 2 Year(s) - Power Adapter
