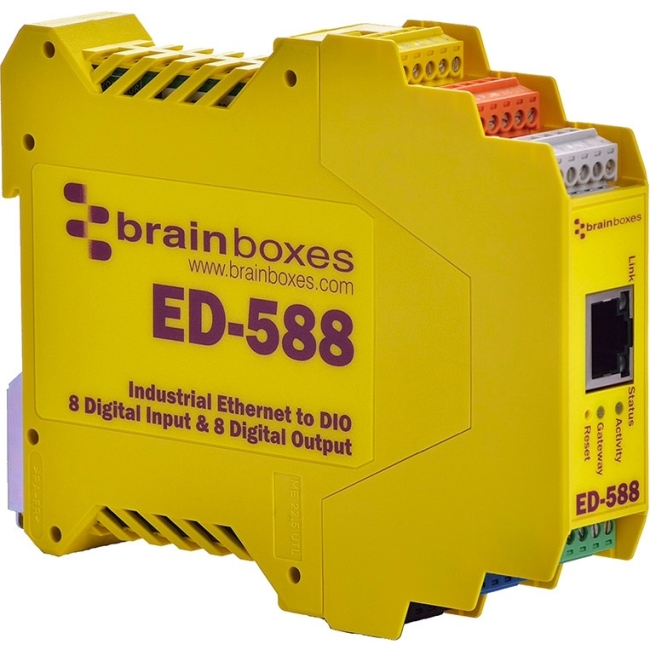

BRAINBOXES ED-588-X50M ENET 8DIGITAL INPUTS PLUS 8PK OF 50PRODUCTS 1CD 1MANUAL

Mfg Part Number:  ED-588-X50M
Image may not reflect the actual item.
Price: $13,249.95 + Free Shipping
Quantity:
More to Come
Last Updated: Oct 13, 2025
No Sales Tax except these states
, PO and Wire.

Ethernet to DIO device: 8 non-isolated digital input channels and 8 digital output channels. Outputs each group of 4 lines has its own common rail. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'.

The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.

The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices.

The outputs are good for driving hot and cold resistive loads, capacitive loads and inductive loads and are especially suited for loads with high inrush currents such as cold bulbs/lamps and motors. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..

Main Specification
General Information
Manufacturer Brainboxes Limited
Manufacturer Part Number ED-588-X50M
Manufacturer Website Address http://www.brainboxes.com
Brand Name Brainboxes
Product Model ED-588
Product Name Ethernet to 8 Digital Inputs and 8 Digital Outputs + RS485 Gateway
Product Type Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports 1
Network (RJ-45) Yes
USB No
Parallel Port No
Management Port No
Number of Network (RJ-45) Ports 1
Media & Performance
Media Type Supported Twisted Pair
Network & Communication
Ethernet Technology Fast Ethernet
Network Technology 10/100Base-T
Power Description
Power Source DC
Physical Characteristics
Form Factor Rail-mountable
Height 0.9"
Width 5.1"
Depth 4"
Weight (Approximate) 4.87 oz
Miscellaneous
Package Contents
  • Ethernet to 8 Digital Inputs and 8 Digital Outputs + RS485 Gateway
  • Installation CD Including Manual
  • Quick Start Guide
Additional Information
  • IO Protocols: Modbus TCP or DCON ASCII (over TCP or Virtual COM port)
  • Watchdog: When device comms is lost, outputs can be set to predetermined state
  • Power On Values: Outputs can be set to predetermined values on power on
  • Safe Values: When Input triggered, outputs can be automatically set to predetermined value
  • Input Logic Level 0: -30.0V to +1.0V
  • Input Logic Level 1: +2.0V to +30V
  • Input Latches: Triggered by user programmable positive or negative edges, stays true until acknowledged
  • Input Counter: User progammable- counts positive or negative transitions up to 200Hz
  • Digital Output Type: Open drain transistor, protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min
  • Maximum Output Load Voltage: 30 VDC
  • Maximum Output Current Sink: 0.85A per channel
  • Network Protocols: ICMP, IP, TCP, DHCP, HTTP
  • Protection: 1500V Magnetic Isolation between ports and network
  • Max Input 35 Volts
  • Operating Temperature Range: -30 °C to +80 °C / -22 °F to +176 °F
  • Industrial Standard: Yes
  • Storage Temperature: -40 °C to +85 °C / -40 °F to +185 °F
  • Galvanic Isolation: No

Operating Systems

  • Microsoft Windows 10
  • Suitable for any device with a Web Browser
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Windows Server 2012
  • Raspberry Pi
  • Android
  • Windows Server 2008 R2
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • iOS
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Mac OS X
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows 2000
  • Linux
Certifications & Standards
  • CE
  • CCC-Mark
  • C-Tick
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin United Kingdom
Warranty
Limited Warranty Lifetime
