UBIQUITI
UBIQUITI NBE-5AC-GEN2-US 5 GHZ NANOBEAM AC GEN2
Mfg Part Number: NBE-5AC-GEN2-US , Item #: 2810858
, PO and Wire.

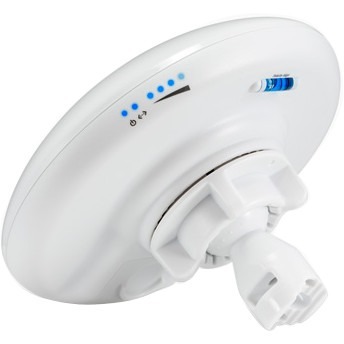

Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
Management Wi-Fi Radio
The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoBeam® AC features enhanced protection against ESD events.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna "Beam" Performance
The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC's excellent beam directivity provides the best performance in high-noise environments.
Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Advanced Software Technology
Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Plug and Play Installation

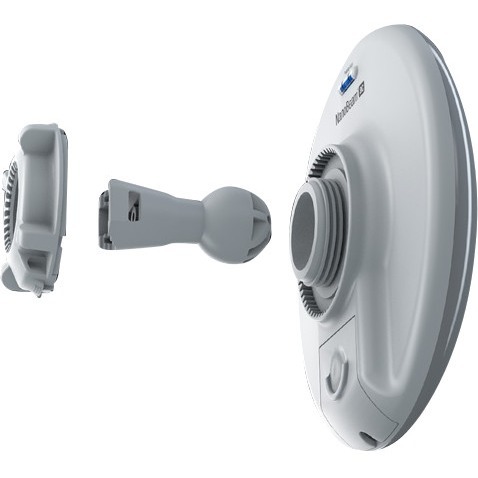

The NanoBeam® AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
| General Information | |
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | NBE-5AC-GEN2-US |
| Manufacturer Website Address | http://www.ui.com |
| Brand Name | Ubiquiti |
| Product Line | NanoBeam AC Gen2 |
| Product Model | NBE-5AC-GEN2 |
| Product Name | NanoBeam AC Gen2 NBE-5AC-GEN2 Wireless Bridge |
| Product Type | Wireless Bridge |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ac |
| Frequency Band | 5 GHz |
| Outdoor Antenna Range | 9.3 Mile |
| Wireless Transmission Speed | 450 Mbit/s |
| Interfaces/Ports | |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE (RJ-45) Port | No |
| PoE PD Port | Yes |
| VGA | No |
| HDMI | No |
| USB | No |
| Powerline | No |
| Management Port | No |
| Physical Characteristics | |
| Form Factor | Pole-mountable |
| Form Factor | Wall Mountable |
| Height | 4.9" |
| Width | 7.4" |
| Depth | 7.4" |
| Weight (Approximate) | 1.17 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
