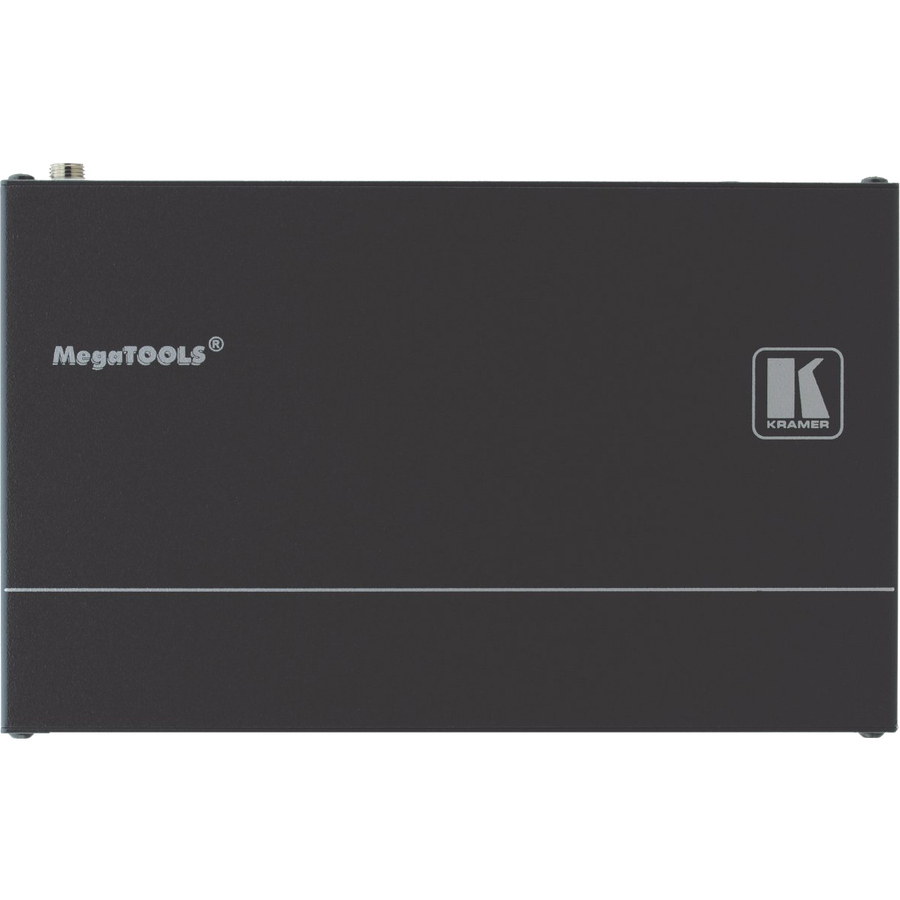

Image may not reflect the actual item.
MAP Price: $412.00
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 30, 2025
No Sales Tax except these states
, PO and Wire.
The VS-211UHD is an automatic switcher for 4K@60Hz (4:2:0) HDMI and analog audio signals. The VS-211UHD automatically switches one of two HDMI inputs to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher-priority video signal is detected. It also supports Kramer's Step-in over HDMI technology.
- Max. Data Rate - 8.91Gbps (2.97Gbps per graphic channel) with 4K UHD support.
- Max. Resolution - 4K@60Hz (4:2:0).
- Step-In Over HDMI Technology.
- HDTV Compatible.
- Active Switching - Selectable manual or fast auto switching according to last connected or preset priority.
- Compliance - HDMI 1.4, HDCP and DVI 1.0.
- HDMI 1.4 Support - Deep Color, 3D, up to 7.1 uncompressed audio channels, ARC (supported on Input 1 only).
- HDMI ARC De-embedding - From output to balanced stereo audio line, uncompressed.
- Automatic Video Input Detection & Selection.
- Auto Power Off - When no HDMI input for 10 seconds (selectable).
- Selectable HDCP Switching.
- EDID Configuration Options.
- Default EDID.
- Contact Closure - For remote manual switching override.
- Audio Embedding/De-embedding.
- Analog Audio Input Per Port.
- Lock Button
- Firmware Upgrade - Over RS-232, mini-USB.
- Software Support - Protocol 3000, EDID Designer, K-Upload via RS-232.
- Varied Control Options - Front panel buttons, contact closure, IR, RS-232 Protocol 3000.
Main Specification
| General Information | |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | 20-90054190 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Brand Name | Kramer |
| Product Line | MegaTOOLS |
| Product Model | VS-211UHD |
| Product Name | 2x1 4K60 4:2:0 HDMI Auto Switcher |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 2 |
| Device Supported | Speaker |
| Device Supported | Computer |
| Device Supported | Display |
| Number of Displays Supported | 1 |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 1 |
| Physical Characteristics | |
| Height | 1" |
| Width | 7.4" |
| Depth | 4.5" |
| Weight (Approximate) | 14.11 oz |
