KRAMER 91-000037 TBUS Enclosure - Black

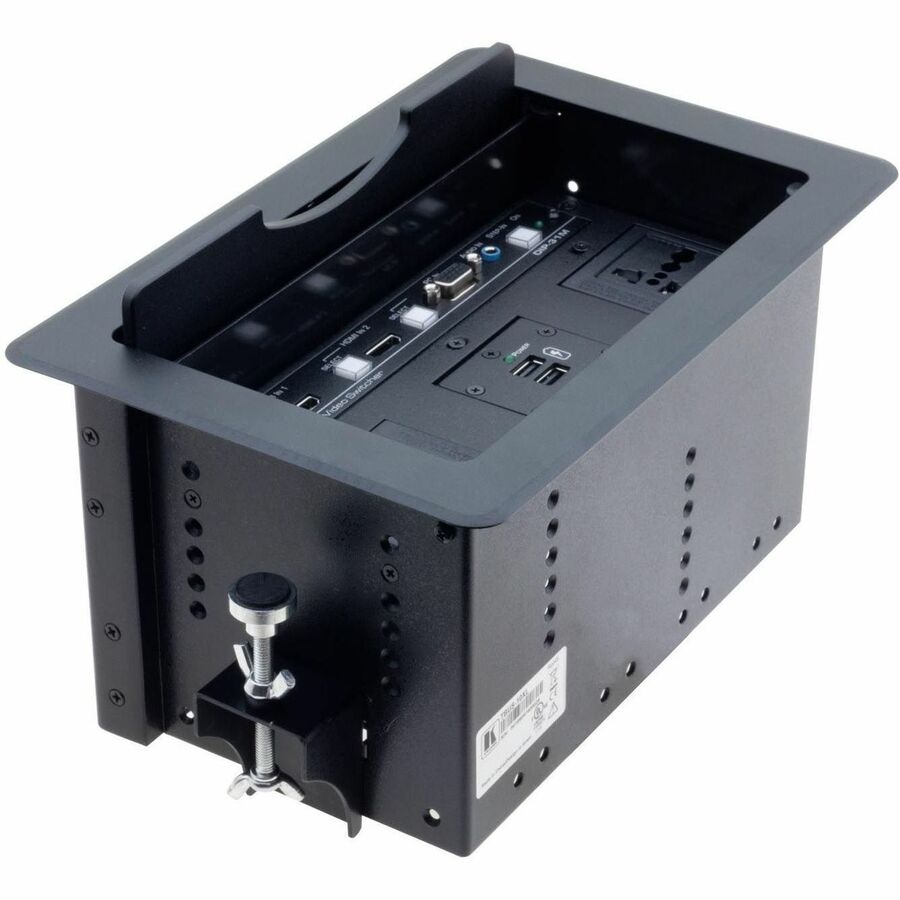

The TBUS-10xl is the enclosure of a new modular system with a manually retracting lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.

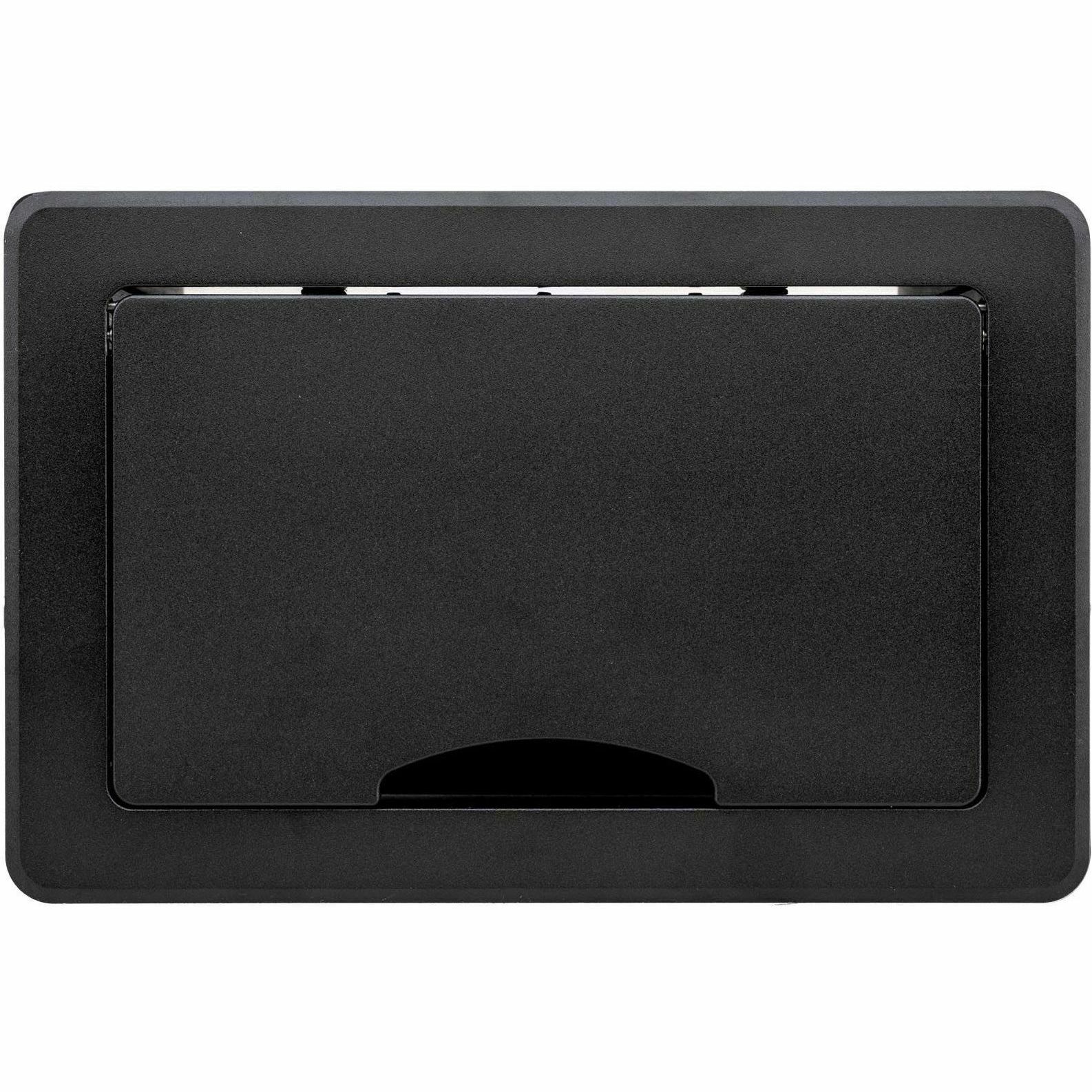

• Cover - Manually opens & closes.
• Inner Frames - T10F-22M can accommodate a combination of up to 2 power sockets, 2 inserts, 1 opening for a Kramer MegaTOOL SID-X1N; T10F-33 contains 3 power sockets and 3 inserts.
• Power Sockets - 11 different "TS" single and 10 dual power socket options are available to accommodate the power requirements worldwide.
• Power Cord - 8 different "C-AC" single power cords (and 3 "Y" power cords) for each power socket. UL and CE qualified.
• Connector Depth - Adjustable.
• Installation Requirement - Table cutout of 245mm x 154mm (9.65" x 6.07").
• Dimensions - Top plate: 171.6mm x 261mm (6.8" x 10.3") W, D.
• Weight - TBUS-10xl: 1.35kg (2.8lbs) approx.; table clamps: 0.25kg (0.6lbs) approx.
• Accessories - TBUS clamps (part of the TBUS enclosure), cut-out template, template screws, self-locking ties.
• Options - Inner frames, passive wall plates and interfaces, power socket kits, power cord, T-2INSERT kit, T-RC-8IR kit, T-RC-76 kit, T-RC-78 kit, Kramer K-Able Box (furniture-mounted cable extension).
