MOBILE MARK MAG-1575-2C-BLK-120 GPS ONLY, MAG MOUNT, 10 FEET
Mfg Part Number: MAG-1575-2C-BLK-120 , Item #: 2778183
, PO and Wire.

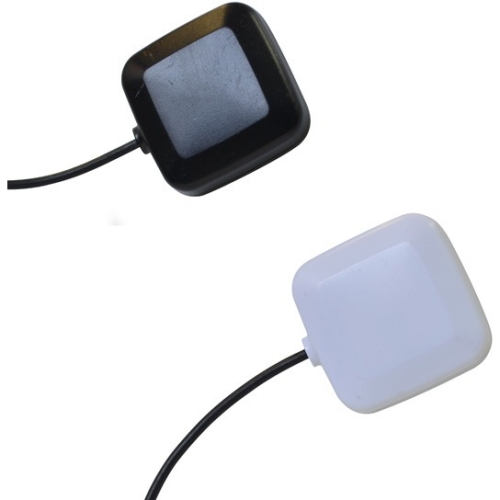

Mobile Mark's GPS Magnet Mount Antennas complements MobileMark's full range of GPS Mobile antennas with a convenient and portable mounting option. The magnet mount style allows the antennas to be moved from from car-to-car, and its small size makes it easy to transport.
The antenna design is very small, less than 2 inches (5 cm) overall,but still contains a small powerful magnet. The magnet can be attached to the roof, hood or trunk of any metal vehicle or flat surface. The cable would then be routed to the GPS receiver, typically through a vehicle window.
The antenna provides durability and weatherproofing, using a sealed polycarbonate case. When not in use, the antenna can easily be removed.
Although the antenna could be mounted on any surface, the antenna should ideally be placed on metal at least 5" (127 mm) across. This will provide the maximum GPS operation.
GPS performance is provided by a 26 dB low noise amplifier, with 5dBi of antenna gain. Power required for the GPS amplifier is either2.7 or 5 VDC. The power is supplied through the cable along with the GPS signal. Most GPS receivers will provide the needed power for the amplifier circuit without modifications.
The antenna is rated IPx5 for water ingress protection. The standard cable supplied with the Magnet Mount antenna is 10 feet (3 meters)of RG-174. Standard connector supplied is an SMA Plug (Male).
Different connectors can be supplied if requested, please consult your sales representative for availability.
Additional Mobile Mark GPS antennas include Surface Mount and Window Mount.
MultiBand antennas that combine GPS with other wireless applications are also available in a wide variety of mounting styles including additional Mag-mount options.
| General Information | |
| Manufacturer | Mobile Mark, Inc |
| Manufacturer Part Number | MAG-1575-2C-BLK-120 |
| Manufacturer Website Address | http://www.mobilemark.com |
| Brand Name | Mobile Mark |
| Product Series | MAG |
| Product Model | 1575 |
| Product Name | Magnetic Mount GPS Antenna |
| Product Type | Antenna |
| Technical Information | |
| Operating Frequency Range | 1575.42 MHz |
| Antenna Gain | 26 dB |
| Interfaces/Ports | |
| Connector Type | SMA |
| Physical Characteristics | |
| Product Color | Black |
| Height | 0.56" |
| Width | 1.75" |
| Depth | 2" |
| Form Factor | Magnetic Mount |
| Miscellaneous | |
| Application/Usage | GPS |
| Environmentally Friendly | Yes |
