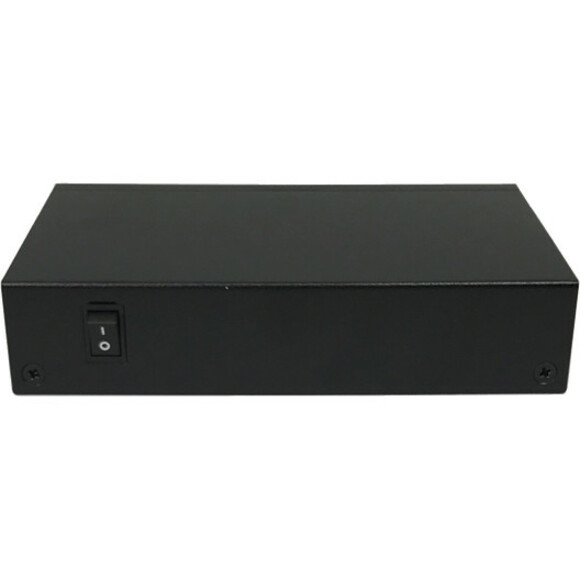

Image may not reflect the actual item.
Price: $68.41
+ Free Shipping
Quantity:
More to Come
Last Updated: May 06, 2025
No Sales Tax except these states
, PO and Wire.
The SG4P1TE is a 5 port Gigabit 10/100/1000Base-T Ethernet unmanaged switch supporting 4 high power 802.3af/802.3at PoE+ ports with a total PoE budget of 60W. Each PoE+ port can be controlled manually to support either 10/100/1000Mbps at the standard Ethernet distance of 100m or set to 10Mbps to support range extension to a maximum of 180m (range dependent on cable quality). The compact size of the SG4P1TE makes it ideal for users with limited space. It is an excellent solution for network devices that require high-power such as indoor and outdoor surveillance equipment and access points.
Key Features and Benefits:
- Compliant with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE 802.3af, IEEE 802.3at
- Support Link-on cable length power saving and link-down power saving
- N-way auto-negotiation
- Alert system notification when PoE Power passes 50w and is close to the power budget
- Dip switch to place selceted port into Extended range mode at 10mbps
- Fanless Design
Main Specification
| General Information | |
| Manufacturer | Amer Networks, Inc |
| Manufacturer Part Number | SG4P1TE |
| Manufacturer Website Address | http://www.amermounts.com |
| Brand Name | Amer |
| Product Model | SG4P1TE |
| Product Name | 5 port Gigabit with 4 port PoE+ Range Extend Unmanaged Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Uplink Port | Yes |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Uplink |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Adapter |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1" |
| Width | 3" |
| Length | 4.8" |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
