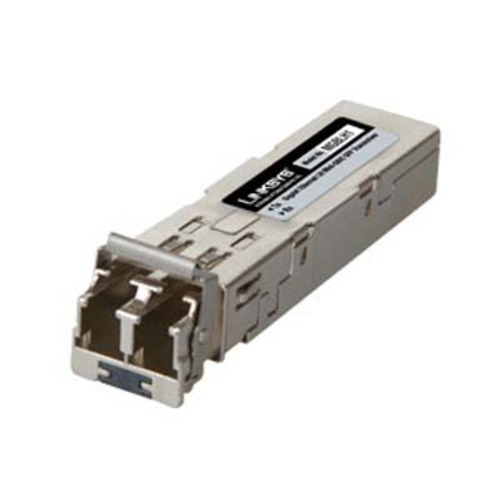

Image may not reflect the actual item.
Price: $261.81
+ Free Shipping
Quantity:
In Stock: 12
Last Updated: May 01, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | MGBLH1 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Model | MGBLH1 |
| Product Name | MGBLH1 Gigabit LH Mini-GBIC SFP Transceiver |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Optical Network |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 1000Base-LH Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LH |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 0.3" |
| Width | 0.5" |
| Depth | 2.2" |
| Weight (Approximate) | 0.05 lb |
| Miscellaneous | |
| Additional Information | Optical Wave Length: 1310 nm |
MODEL- MGBLH1 VENDOR- LINKSYS
FEATURES- Gigabit Ethernet 1000BaseT Mini-GBIC SFP Transceiver
This module inserts into the mini-GBIC port on either the SR2024
or SR224G, creating new Gigabit ports. This module is hot-
swappable, meaning you can connect it even when the switch is
running.
-- SPECIFICATIONs --------------------------------------
STANDARDS - Compliant with Specifications of SFP Transceiver MSA Spec.
CABLE TYPE- Wavelength: 1300 nm (1310nm TYP, 1290-1355nm,)
MMF : Core: 50 or 62.5um, Modular Bandwidth 500MHz/km
Cable Distance: 550 to 2000m
SMF: Core: 50 um, Modular Bandwidth 500MHz/km
Cable Distance: 550m
POWER- 3.3 V 160-200mA (supplied by mini-GBIC port)
Surge Current 30 mA
Dissipation : 530 mW (TYP. 830 Max.)
Transmitter Spec.Power : -5 ~ 0 dBm
Receiver Spec. -22 ~ -3 dBm
SIZE - 0.33" x 0.53" x 2.22" WT.- 0.85 oz.
www.linksys.com
