APC

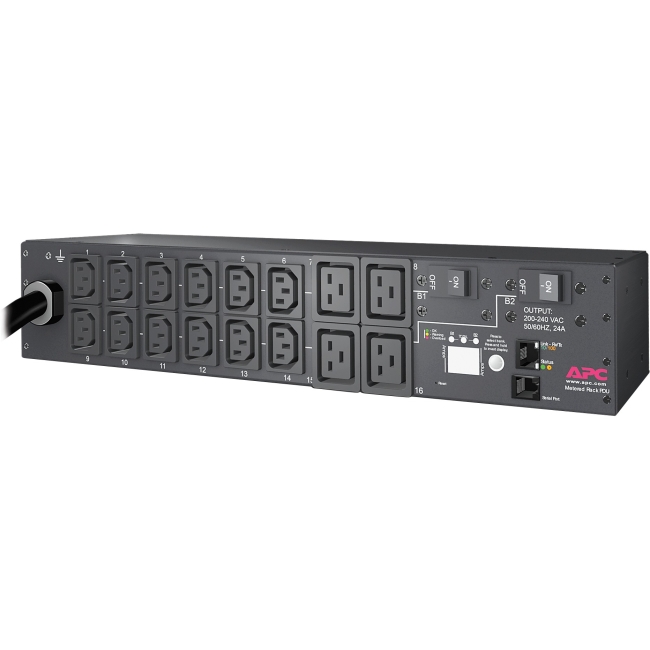

APC AP7811B RACK PDU METERED 2U 30A 208V 12 C13S & 4 C19
Mfg Part Number: AP7811B , Item #: 2759141
Image may not reflect the actual item.
Price: $937.00
Quantity:
In Stock: 19
Last Updated: Apr 30, 2025
No Sales Tax except these states
, PO and Wire.
APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles AP7811B offers real-time remote monitoring and user-defined alarms which helps prevent potential circuit overloads that can cause accidental power loss to critical equipment Easily access, configure, and monitor this metered PDU from remote locations A network management interface provides standards-based management via Web, SNMP, and Command Line Interface This Metered PDU from APC provides (12) IEC C13 and (4) IEC C19 outlets to supply power to rack equipment Active current measurements (amps), User-customizable alarms and warnings and Embedded log memory to record/review/report historic data to local user An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH) Easy to mount this Horizontal PDU in racks or enclosures and occupies 2U of rack Space Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP7811B |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Metered Rack |
| Product Name | Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Plug/Connector Type | NEMA L6-30P |
| Plug/Connector Detail | 1 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 200 V |
| Input Voltage | 208 V |
| Input Voltage | 230 V |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Cord Length | 12 ft |
| Height | 3.5" |
| Width | 17.5" |
| Depth | 4.4" |
| Weight (Approximate) | 7.41 lb |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|CSA|PSE|UL Listed |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH free of SVHC | Yes |
| Mercury Free | Yes |
| Lead Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7811B_ROHS_DECLARATION&p_FileName=AP7811BKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562847&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562847&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
