Panduit JBX3510WH-A SINGLE GANG LOW VOLTAGE OUTLET BOX W/ ADH FOR SCREW-ON FACEPLATES
Mfg Part Number: JBX3510WH-A , Item #: 2742390
Image may not reflect the actual item.
Price: $21.90
Quantity:
More to Come
Last Updated: Dec 13, 2025
No Sales Tax except these states
, PO and Wire.

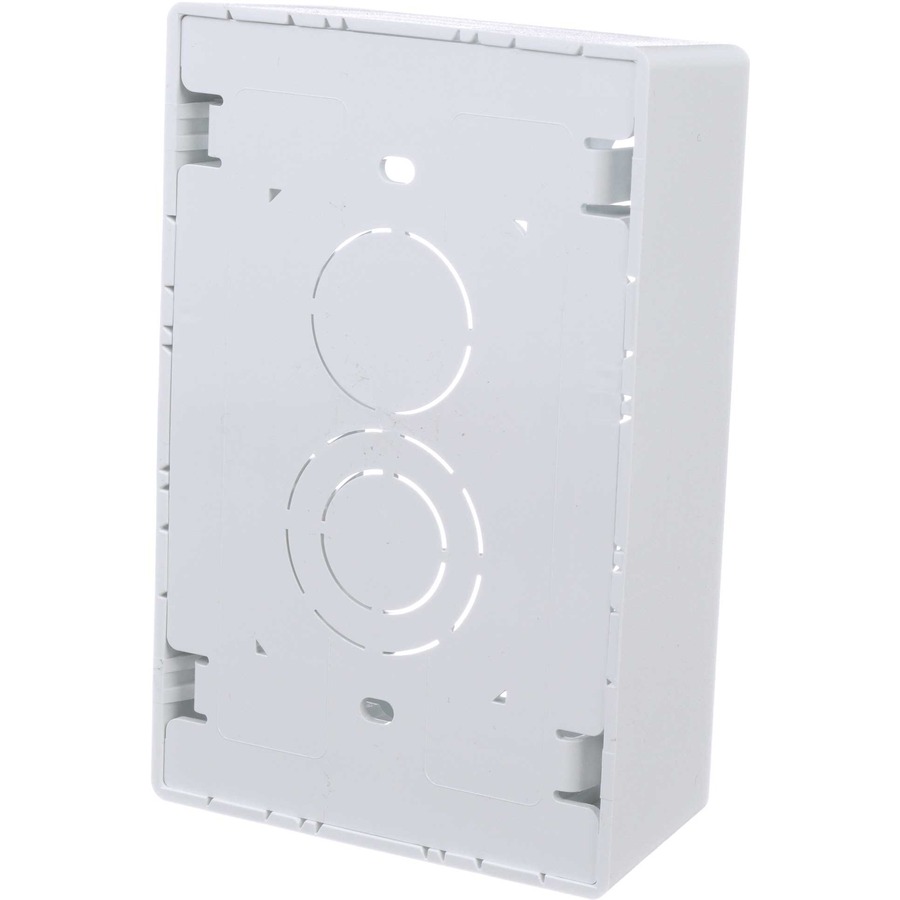

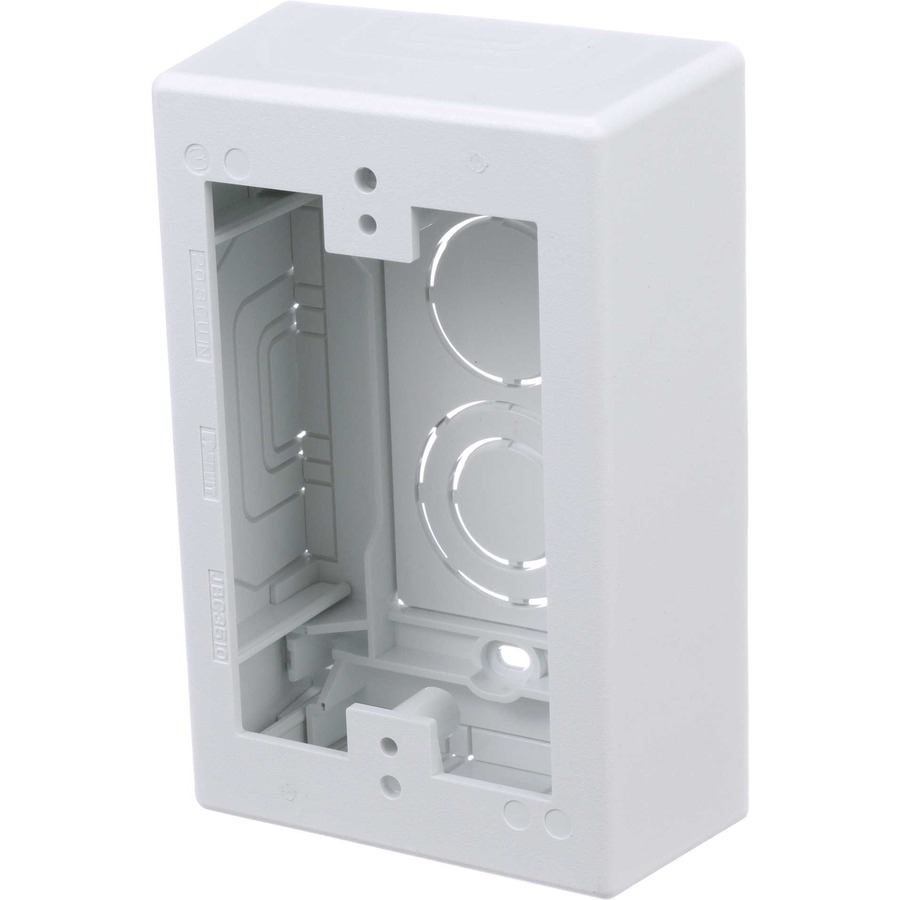

The low voltage junction box for surface raceway is a one gang snap together outlet box designed for low voltage applications. It is made to be used with the T45 or LD profile raceway. It accepts Pan-Way® Screw-On Faceplates or any NEMA standard single gang faceplate. It measures 5 inches L x 3.26 inches W x 1.62 inches H (127.1mm x 82.7mm x 41.1mm). It is made of PVC material and is white.
Main Specification
| General Information | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | JBX3510WH-A |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | Pan-Way |
| Product Name | Surface Raceway Low Voltage Junction Box, White |
| Packaged Quantity | 1 Pack |
| Product Type | Cable Organizer |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Polyvinyl Chloride (PVC) |
| Height | 1.62" |
| Width | 3.26" |
| Length | 5" |
| Miscellaneous | |
| Compatibility | T45 or LD profile raceway |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Type | Power Rated Surface Mount Boxes |
| Material | - |
| Color | White |
| Size | - |
| Maximum Bundle Diameter | - |
| Tensile Strength | - |
| Duct External Width | 82.7 mm |
| Duct External Height | 127.1 mm |
