BLACK BOX

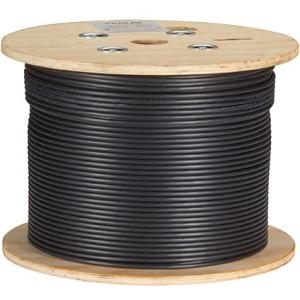

BLACK BOX C6ABC51S-BK-1000 1000FT CAT6A SHLD BULK CABLE F/UTP PLENUM BLACK
Mfg Part Number: C6ABC51S-BK-1000 , Item #: 2741705
Image may not reflect the actual item.
Price: $1,418.42
+ Free Shipping
Quantity:
In Stock: 5
Last Updated: Jul 01, 2025
No Sales Tax except these states
, PO and Wire.
Black Box CAT6A 650-MHz Solid Ethernet Bulk Shielded Cable provides transmission performance beyond 650MHz exceeding the industry standards and ETL Verified for supporting the operation of 10Gig Ethernet applications (10GBASE-T). This cabling provides support for high-bandwidth applications such as data centers and other data-intensive or backbone requirements.
- PREMIUM CABLING SOLUTION CONSTRUCTED TO EXCEED CAT6A INDUSTRY STANDARDS
- TESTED TO 650MHZ, SURPASSING THE CAT6A INDUSTRY STANDARD OF 500MHZ
- CMP RATED JACKETING FOR USE IN DUCTS, PLENUMS, AND SPACES USED FOR ENVIRONMENTAL AIR
- SOLID WIRE PROVIDES LESS FLEXIBILITY BUT BETTER ELECTRICAL CHARACTERISTICS AND LOWER ATTENUATION, MAKING IT IDEAL FOR LONG BACKBONE OR HORIZONTAL/VERTICAL RUNS
- ETL VERIFIED FOR COMPONENT-LEVEL PERFORMANCE AND AS PART OF OUR CAT6A CHANNEL
- CONSTRUCTED FROM INTERNAL SEPARATOR, FEP INSULATION, DIELECTRIC TAPE, DRAIN WIRE, ALUMINUM/MYLAR TAPEA CENTER ISOLATION MEMBER MAINTAINS PAIR SEPARATION FOR OPTIMAL NEXT PERFORMANCE
- CAT6A UTP COMES WITH 0.271" OUTSIDE DIAMETER
- § TESTED UP TO 650 MHZ
- FOIL SHIELD CONSTRUCTION VIRTUALLY ELIMINATES ALIEN CROSSTALK
- SUPPORTS IEEE 802.3 AND 10GBASE-T, AND TIA 568-C.2. ETL TESTED
- § TAA COMPLIANT
Main Specification
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | C6ABC51S-BK-1000 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | GigaTrue |
| Product Name | GigaTrue Cat.6a (F/UTP) Network Cable |
| Package Type | Bulk |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector on First End Details | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Connector on Second End Details | Bare Wire |
| Shielding | Yes |
| Jacket Type | CMP |
| Jacket Type | Plenum |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| American Wire Gauge | 23 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Number of Pairs | 4 |
| Features | Halogen Free |
| Features | Near End Cross Talk (NEXT) |
| Features | Alien Cross Talk (AXT) |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Bare Copper |
| Insulation Material | Fluorinated Ethylene Propylene (FEP) |
| Shielding Material | Aluminum Mylar Foil |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Material Details | bare copper - conductor |
| Weight (Approximate) | 48.30 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
