BELDEN
BELDEN 2413 010U1000 Multi-Paired Cables CAT6+ 4PR U/UTP CMP BOX
Mfg Part Number: 2413 010U1000 , Item #: 2721583
Image may not reflect the actual item.
Price: $1,295.41
Quantity:
In Stock: 2
Last Updated: Jan 26, 2026
No Sales Tax except these states
, PO and Wire.

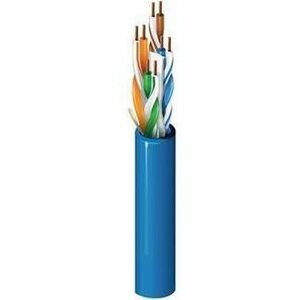

Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket
Main Specification
| General Information | |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 2413010U1000 |
| Manufacturer Website Address | http://www.belden.com |
| Brand Name | Belden |
| Product Name | Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMP |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6+ |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Shielding | No |
| Jacket Type | CMP |
| Jacket Type | FT6 |
| Jacket Type | CMP-LP |
| Jacket Type | CL3P-LP |
| Jacket Type | CL3P |
| Jacket Type | Plenum |
| Device Supported | Network Device |
| American Wire Gauge | 23 AWG |
| Data Transfer Rate | 1 Gbit/s |
| Number of Pairs | 4 |
| Features | Attenuation to Crosstalk Ratio (ACR) |
| Features | Attenuation Crosstalk Ratio Far-end (ACR-F) |
| Features | Bendable |
| Features | PoE+ |
| Features | PoE++ |
| Features | Minimized Near-End Crosstalk (NEXT) |
| Features | PoE |
| Features | Power-sum Equal Level Far-End Crosstalk (PSELFEXT) |
| Features | Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF) |
| Features | Power Sum Attenuation to Crosstalk Ratio (PSACR) |
| Features | Power-sum Near End Crosstalk (PSNEXT) |
| Features | Equal Level Far End Crosstalk (ELFEXT) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Jacket Color | Black |
| Insulation Color | White/Brown Stripe |
| Insulation Color | White/Orange Stripe |
| Insulation Color | White/Green Stripe |
| Insulation Color | Orange |
| Insulation Color | White/Blue Stripe |
| Insulation Color | Brown |
| Insulation Color | Blue |
| Insulation Color | Green |
| Product Material | Bare Copper |
| Insulation Material | Fluorinated Ethylene Propylene (FEP) |
| Insulation Material | Polyolefin |
| Insulation Material | Flame Retardant Polyolefin (FRPO) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Material | Low Smoke Polyvinyl Chloride (LS PVC) |
| Jacket Material | Flamarrest |
| Material Details | Bare Copper - Conductor PVC - Outer Jacket |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | China Restriction of Hazardous Substances 2 (China RoHS 2) |
