Image may not reflect the actual item.
Price: $15,232.46
Quantity:
More to Come
Last Updated: Jun 27, 2025
No Sales Tax except these states
, PO and Wire.

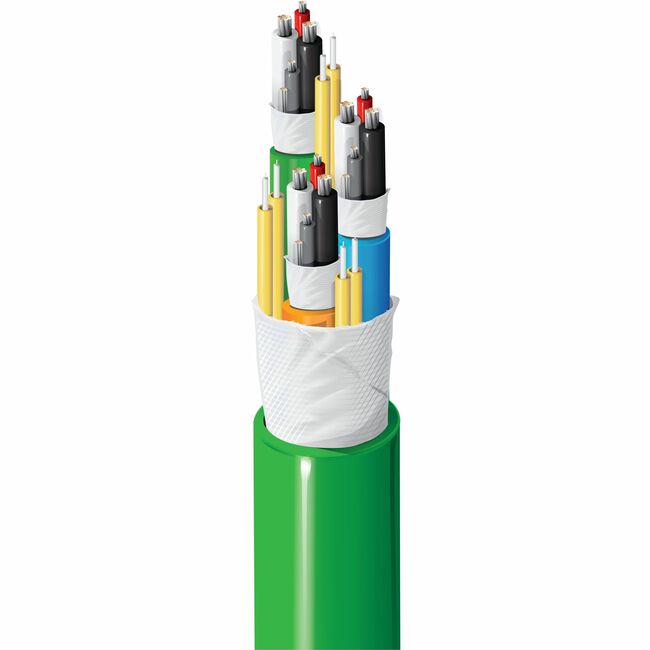

3-Channel SMPTE Stadium Cable, 6 Single Mode Fiber, 6 TC Conductor (19x30) 18 AWG and 6 TC Conductor (7x32) 24 AWG, FEP Insulation, Beldfoil Shield, PVDF Jacket, Plenum
Main Specification
| General Information | |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 7824P0051000 |
| Manufacturer Website Address | http://www.belden.com |
| Brand Name | Belden |
| Product Name | Fiber Optic Network Cable |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Fiber Optic Mode | Single-mode |
| Fiber Optic Cable Core/Cladding Specification | 900 µm |
| Fiber Category | OS2 |
| Fiber Count | 6 |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Shielding | Yes |
| Cable Listing | CMP |
| Jacket Type | CMP |
| Jacket Type | CSA FT6 |
| Jacket Type | Plenum |
| Device Supported | Camera |
| Device Supported | Network Device |
| American Wire Gauge | 24 AWG |
| Number of Conductors | 6 |
| Features | Bendable |
| Features | Stranded |
| Physical Characteristics | |
| Color Family | Multicolor |
| Product Color | Blue |
| Product Color | Yellow |
| Product Color | Orange |
| Product Color | Red |
| Product Color | Gray |
| Product Color | Dark Green |
| Product Color | White |
| Product Color | Black |
| Product Color | Green |
| Color Details | Conductor:
Yellow - Fiber |
| Product Material | Polyvinyl Chloride (PVC) |
| Product Material | Tinned Copper |
| Insulation Material | Fluorinated Ethylene Propylene (FEP) |
| Shielding Material | Beldfoil |
| Shielding Material | Aluminum-polyester Foil |
| Shielding Material | Tinned Copper |
| Jacket Material | Polyvinylidene Fluoride (PVDF) |
| Material Details | Tinned Copper - Conductor Tinned Copper - Drain Wire Polyvinyl Chloride (PVC) - Buffer |
| Miscellaneous | |
| Environmentally Friendly | Yes |
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
