LANTRONIX

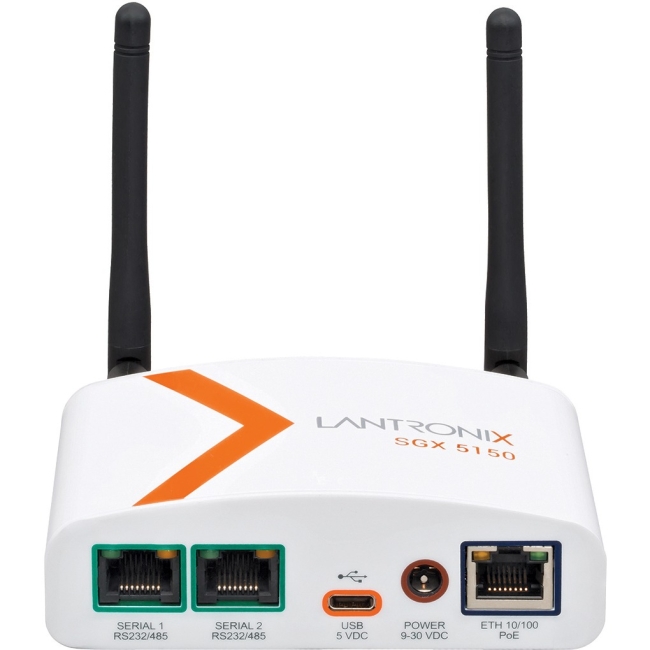

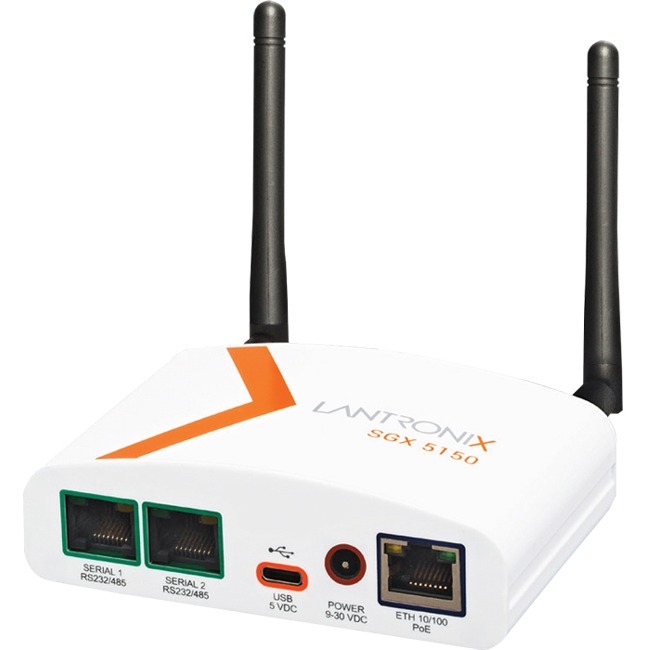

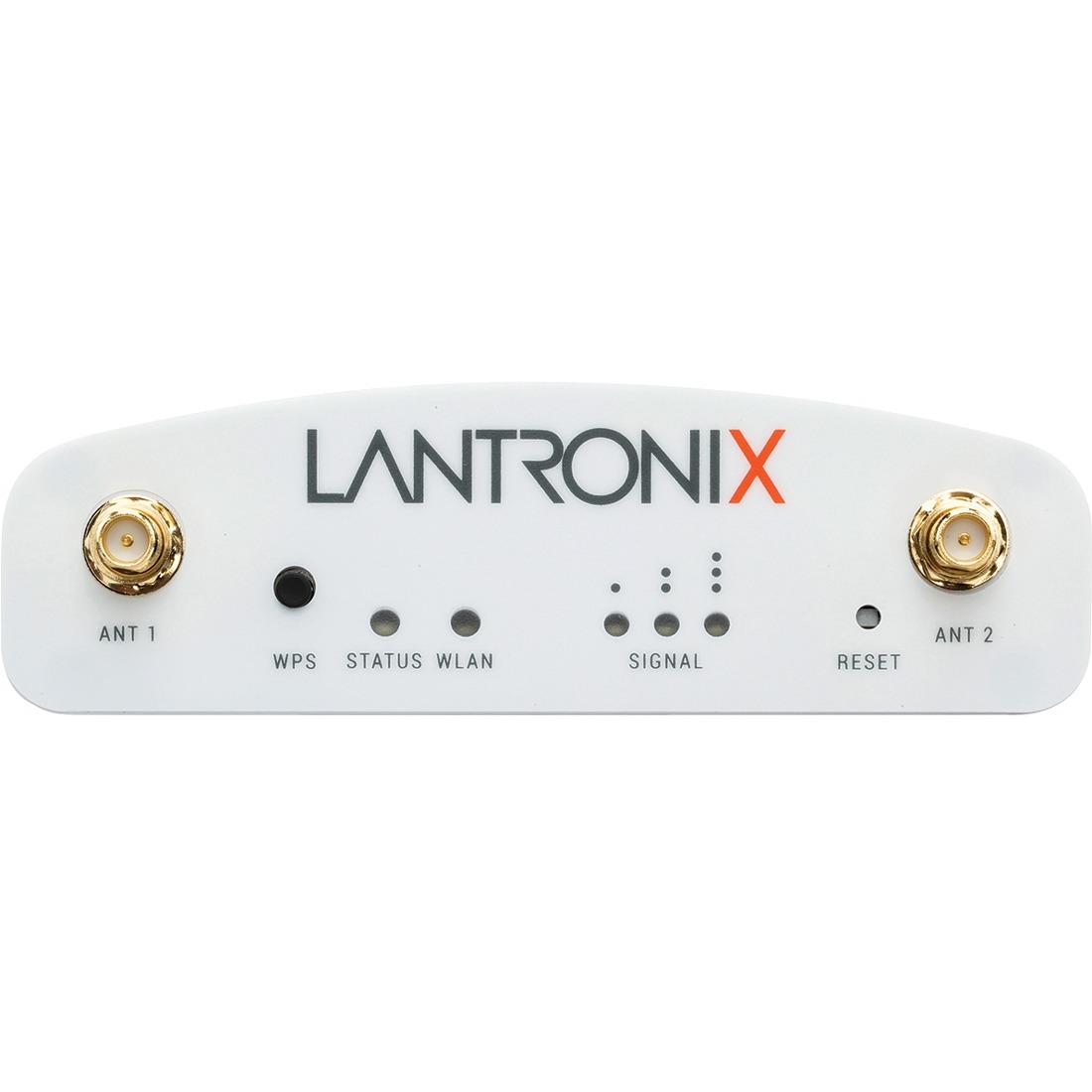

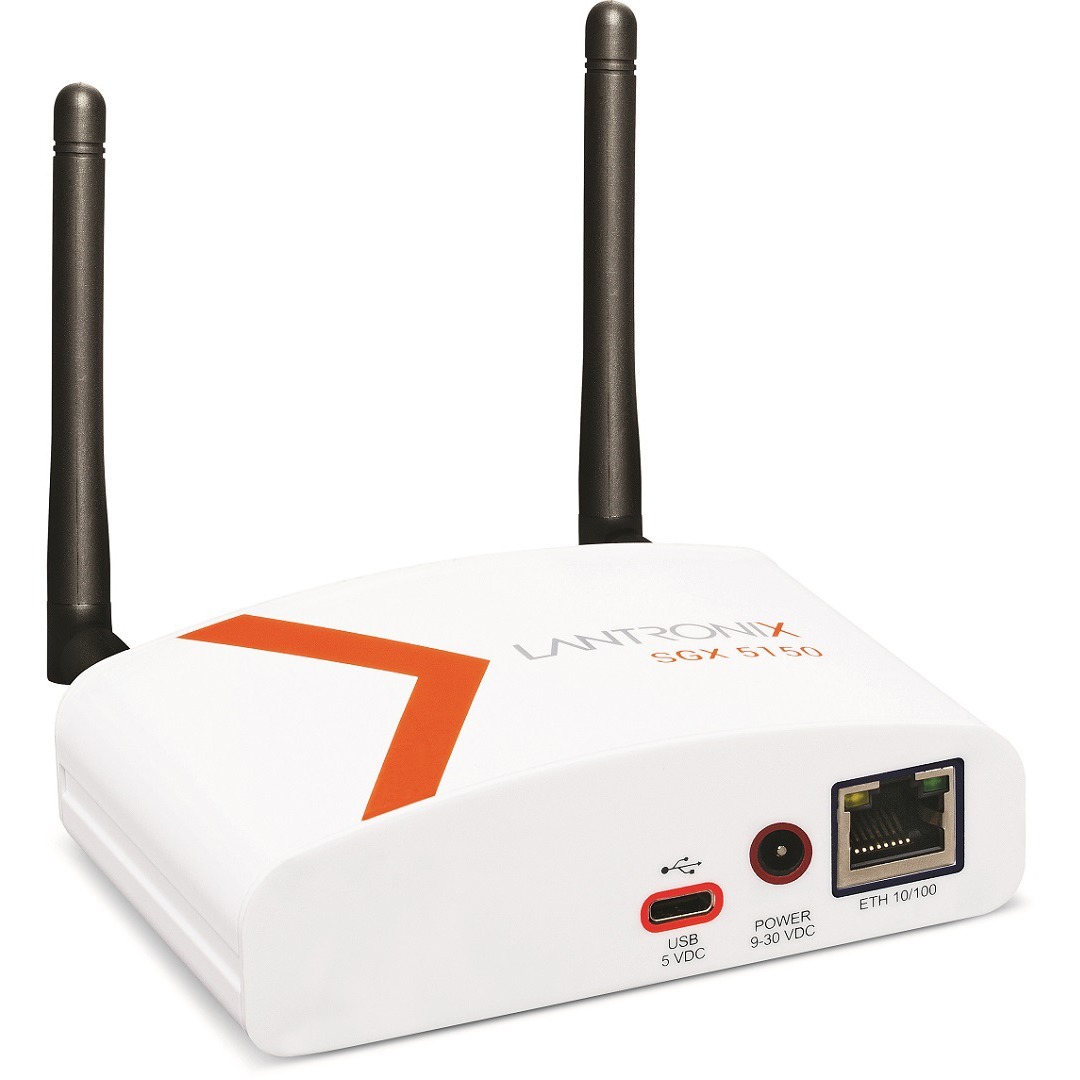

LANTRONIX SGX5150000US SGX 5150 IOT DEVICE GATEWAY 802.11a/b/g/n/ac, USB2.0, 10/100 Ethernet

Mfg Part Number:  SGX5150000US
Image may not reflect the actual item.
Price: $494.98
Quantity:
In Stock: 11
Last Updated: May 10, 2025
No Sales Tax except these states
, PO and Wire.

Connect Your Business-Critical Assets and Data Securely to the Enterprise Network

High Performance Wi-Fi®

Your device requires a trustworthy wireless connection. Equipped with industry-leading high-performance 5GHz (802.11ac) Wi-Fi, the SGX 5150 ensures reliable and persistent wireless enterprise connections and bandwidth for high-speed data processing.

TruPort Security

The SGX 5150 was designed from the ground up to support critical enterprise, government and military grade standards, so that your private data is delivered securely with absolute data integrity.

Essential IoT Applications

IoT deployment and network integration has never been easier. The SGX 5150 includes essential IoT apps that deliver multi-interface connectivity, full networking, extensive security, industry-leading device configuration management and robust system diagnostics so that you can quickly accelerate to an IoT business solution.

Multi-Interface Access

The SGX 5150 provides multiple interface options to connect to virtually any edge asset with singular or multiple RS-232/485 serial ports, USB 2.0 with host and device modes and Ethernet interfaces. The SGX 5150 provides an elegant and robust solution for organizations seeking compatibility with multiple devices or product lines.

More from the Manufacturer

Main Specification
General Information
Manufacturer Lantronix, Inc
Manufacturer Part Number SGX5150000US
Manufacturer Website Address http://www.lantronix.com
Brand Name Lantronix
Product Series SGX 5150
Product Name SGX 5150 IoT Device Gateway
Product Type Device Server
Media & Performance
Media Type Supported Twisted Pair
Wireless Specifications
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ac
Network & Communication
Ethernet Technology Fast Ethernet
Network Standard 10Base-T
Network Standard 100Base-TX
Interfaces/Ports
Network (RJ-45) Yes
USB Yes
Serial Port Yes
Number of Network (RJ-45) Ports 1
Number of USB Ports 1
Number of Serial Ports 2
Physical Characteristics
Form Factor Wall Mountable
Height 1"
Width 3.5"
Depth 4.3"
Weight (Approximate) 12.35 oz
Miscellaneous
Additional Information Wirelss Specifications:
  • 5G Wi-Fi (IEEE 802.11ac), 1x1 ac (MCS0 - MCS9)
  • 20, 40 and 80 MHz Channels with optional SGI
  • IEEE 802.11 n, 1x1 n (MCS0 - MCS7)
  • Bluetooth/WLAN Coexistence
  • Compatible with IEEE 802.11 a/b/g and Supports IEEE 802.11 d/h/j/i
  • Dual band 2.4 GHz and 5 GHz
Ethernet Specifications:
  • IEEE 802.3 MAC and PHY, 10BaseT and 100BaseT
  • USB Specifications - Configurable USB 2.0 HS/FS port with USB type C connector
  • USB Device (default setting) powered by a VBUS 5V
  • USB configurable host can provide VBUS 5V 0.5A (power supply or PoE)

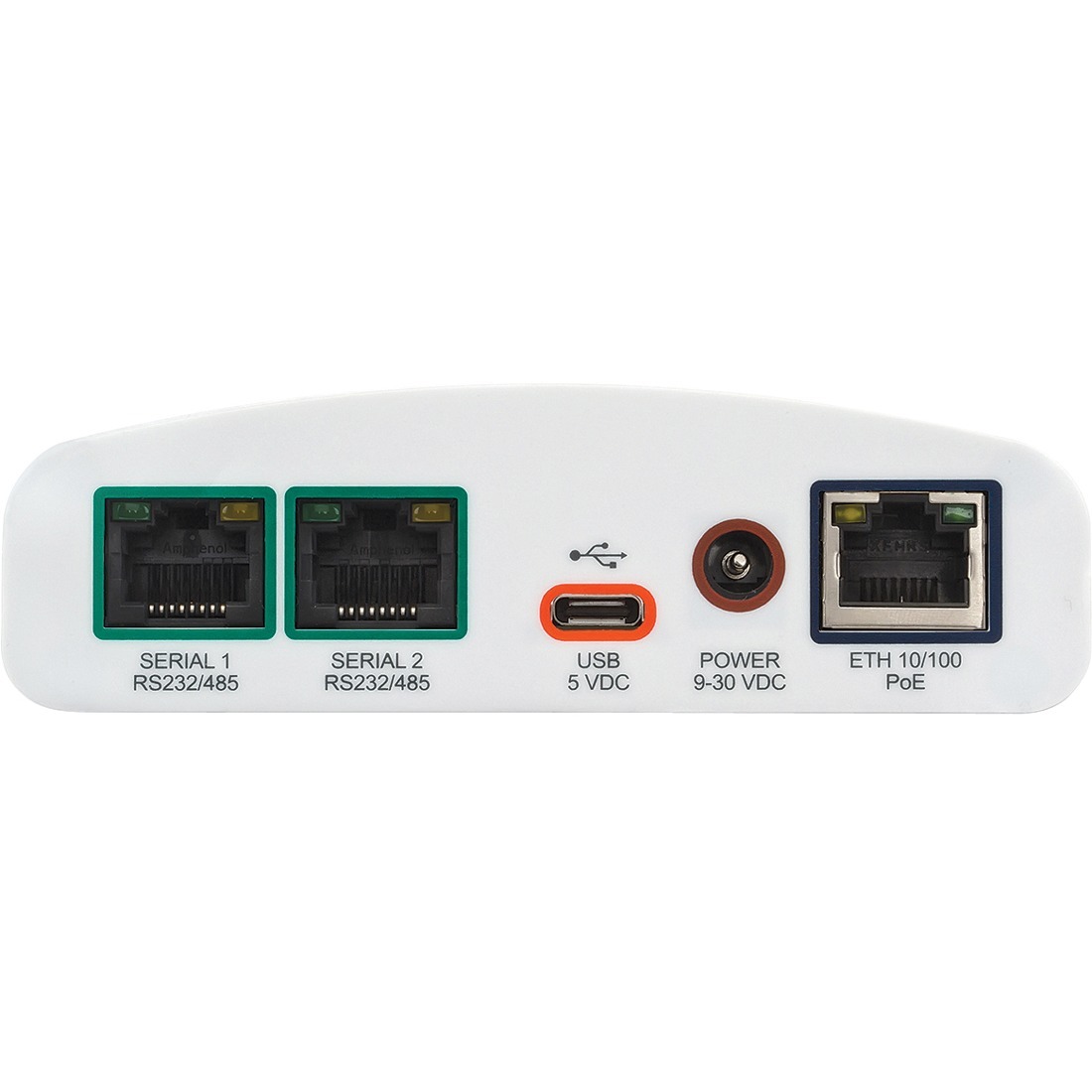

Physical Interface:
  • Upto 2xRJ-45 Serial Ports, can be RS-232 or Multi-protocol RS-232/422/485, Data rates - up to 921 Kbps
  • 15 KV ESD Protection
  • (1) USB port - Type C Host / Device Connector
  • (1) RJ-45 Ethernet port, 10/100Mbps, 1.5 KV Surge IsolationWLAN Security
TruPort Security:
  • AES/CCMP and TKIP encryption, 802.11i
  • WPA/WPA2 Pre-Shared Key (PSK) or IEEE 802.1X, AES-CCMP
  • Enterprise Security (WPA2-Enterprise)
  • EAP-TLS, EAP-TTLS (MS-CHAPv2), EAP-PEAPv0/EAP-MS-CHAP v2), EAP-PEAPv1, EAP-FAST
Management Interfaces:
  • DeviceInstaller, Web Manager (HTML5 Browser HTTP/HTTPS)
  • CLI (over serial ports, telnet or SSH)
  • OTA Field upgradeable
  • Supports SNMP v2, V3
  • XML Configuration records via CLI or FTP
Environmental:
  • Extended Operating Temp: -40° to 70° C, (-40° to 158° F)
  • Extended Storage Temp: -40° to 85° C, (-40° to 185° F)
  • IP Rating: 30, Relative Humidity: 5 to 95%, Non-condensing
  • ESD tolerance: Contact Discharge= 4Kv; Air Discharge=15Kv
Environmentally Friendly Yes
Warranty
Limited Warranty 5 Year
product information
