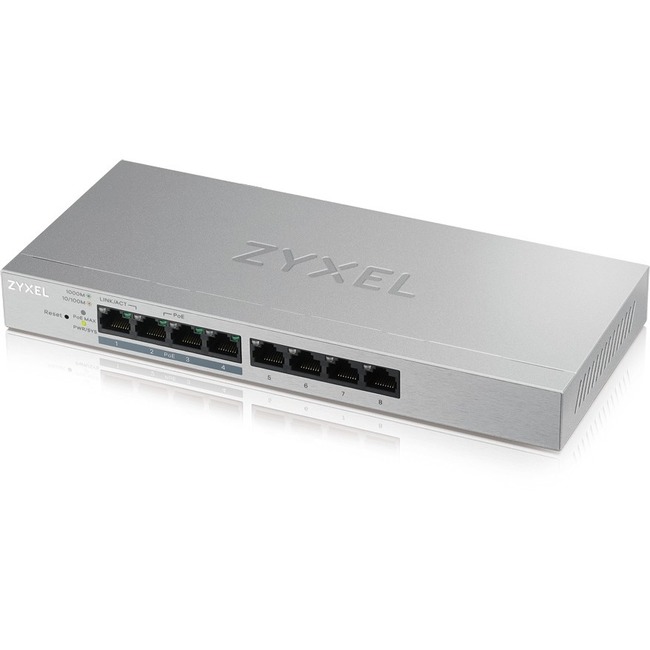

ZyXEL GS1200-8HPv2 Fanless 8 Port GbE POE Plus

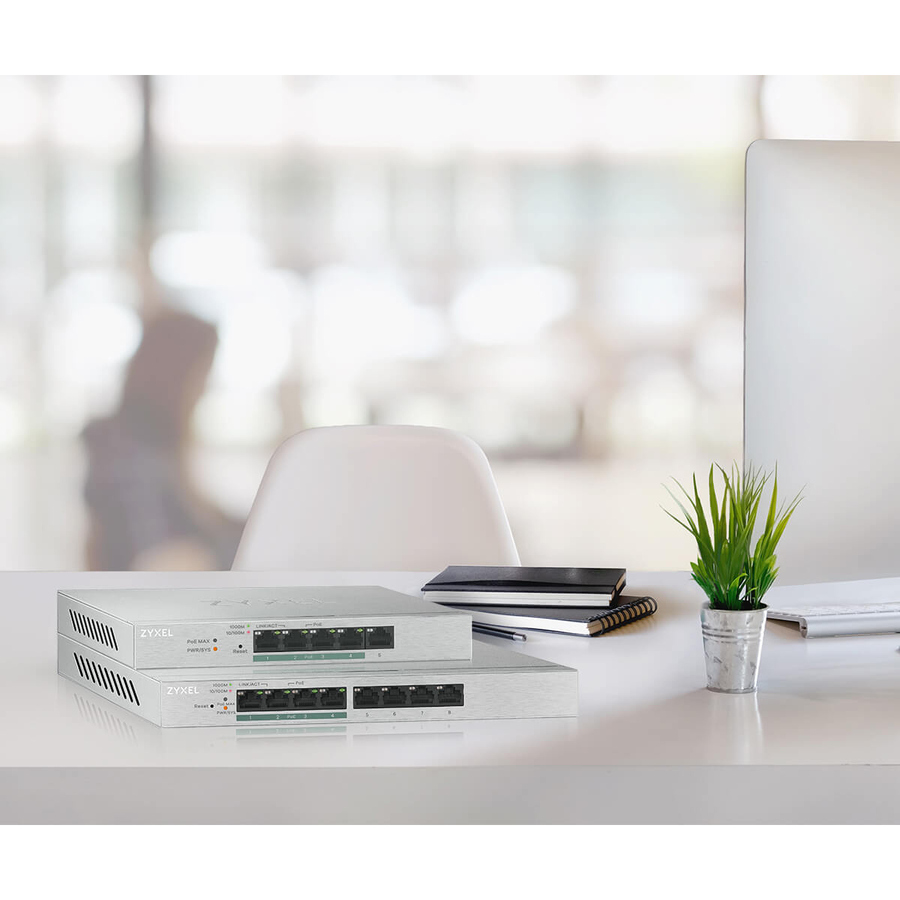

The Zyxel GS1200-5HP v2/GS1200-8HP v2 is equipped with 5 or 8 Gigabit ports includes 4 PoE ports compliance with IEEE 802.3at and automatically detect and supply power up to 60W total PoE budget.

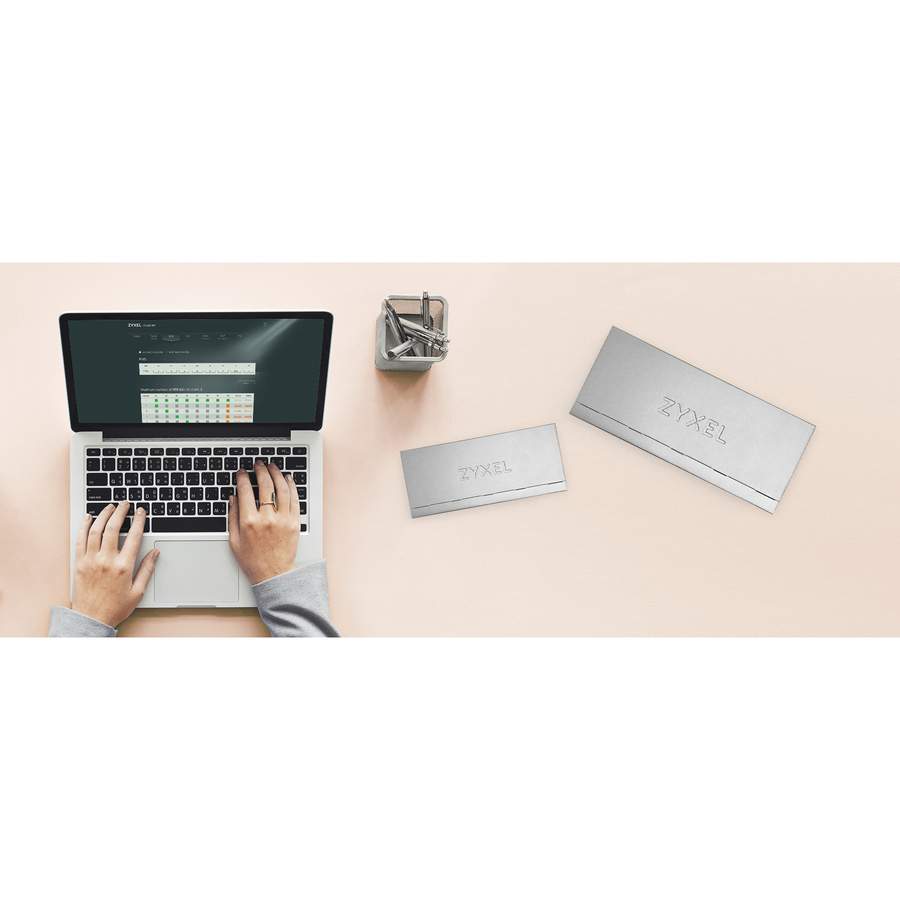

However, the Zyxel GS1200-5HP v2/GS1200-8HP v2 is more than just a typical PoE switch. It comes with an easy-to-use web configuration to prioritize, limit and/or protect network traffics. It has been designed specifically for customers who require simple control functions for office network management.

Benefits

Smart PoE+ 802.3af/802.3at support

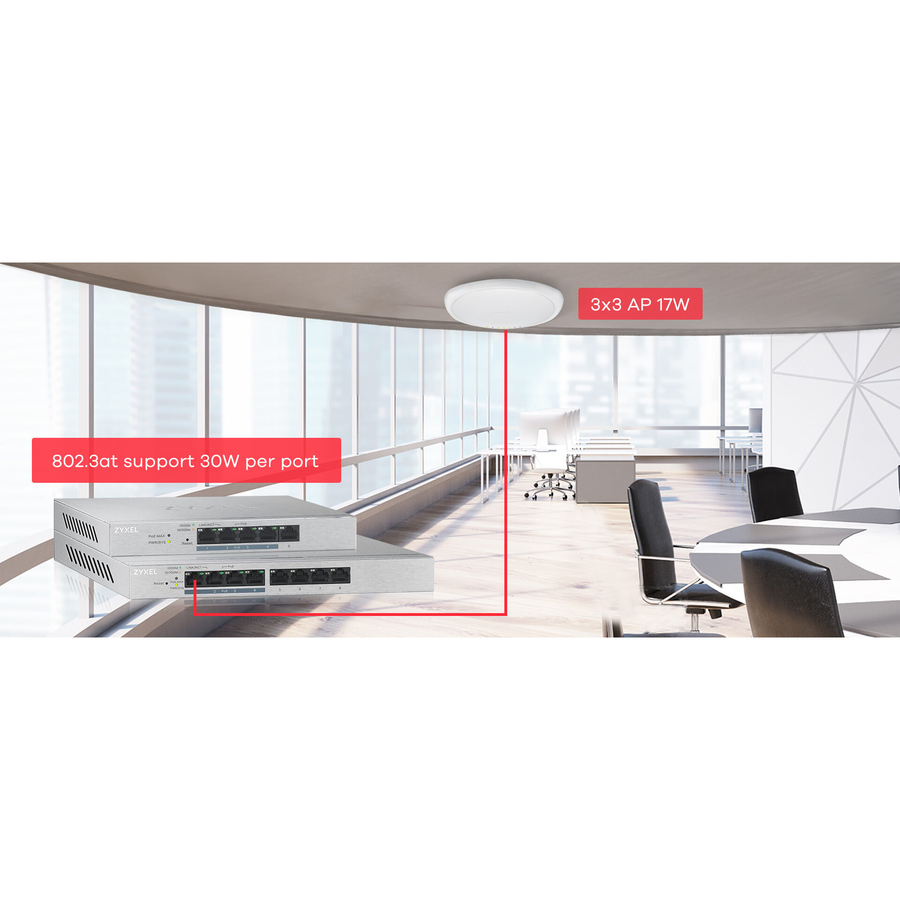

The GS1200 series supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices like wireless APs, IP cameras and VoIP phones. Web GUI management enables you to monitor the power status on each port and/or reboot the network devices, as needed.

Quality of Service

Port-based Quality of Service for better voice and video traffic control. Optimizing access bandwidth on the network.

VLAN

Segregating network into small groups for enhanced network security and efficiency

Link aggregation

Increases bigger bandwidth between 2 Ethernet ports to support aggregated uplink/downlink traffic.

IGMP snooping

Optimizing network efficiency on multicast traffic delivery without the need of an extra multicast router.

General Information
Manufacturer	ZYXEL Communications Corp.
Manufacturer Part Number	GS1200-8HPv2
Manufacturer Website Address	http://www.us.zyxel.com
Brand Name	ZYXEL
Product Model	GS1200-8HP v2
Product Name	8-Port GbE Web Managed PoE Switch
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	8
Port/Expansion Slot Details	8 x Gigabit Ethernet PoE+
Media & Performance
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T
Network & Communication
Layer Supported	2
Management & Protocols
Manageable	Yes
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	60 W

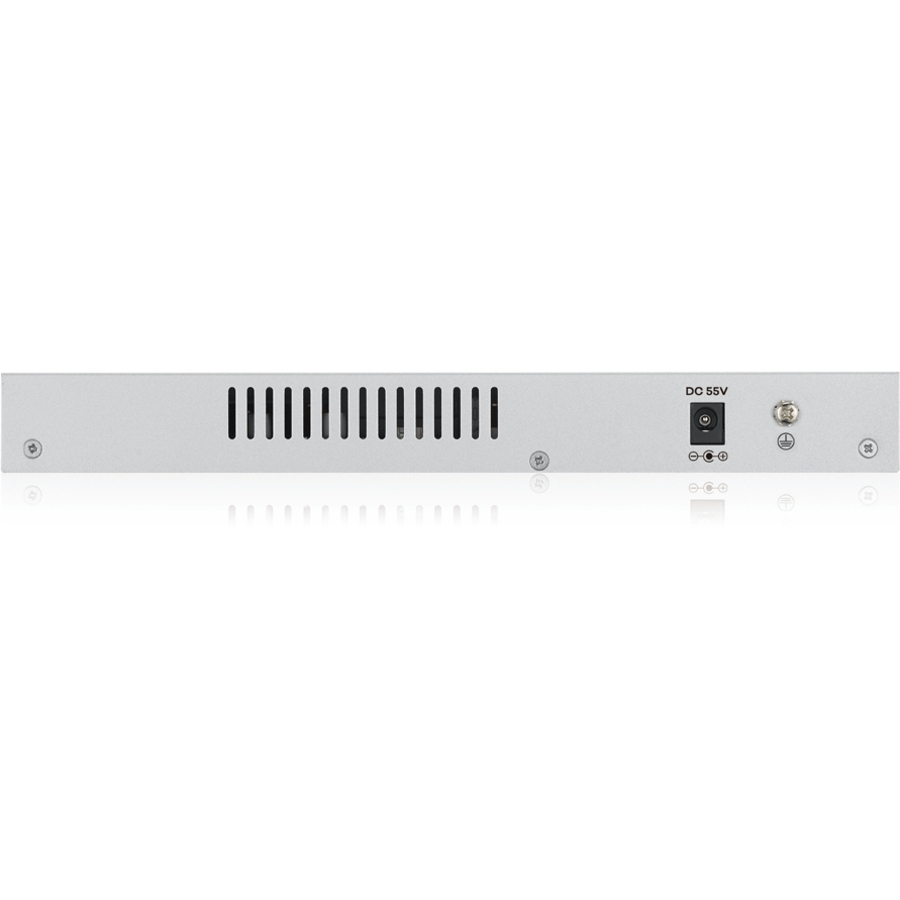

Power Source	Power Adapter
Redundant Power Supply Supported	No
Physical Characteristics
Form Factor	Desktop
Height	1"
Width	4.1"
Depth	4.1"
Length	9.5"
Weight (Approximate)	1.29 lb
Miscellaneous
Package Contents	8-Port GbE Web Managed PoE Switch Power Adapter Power Cord Quick Start Guide Safety Warning and DoC Rubber Foot Pads
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	Lifetime
