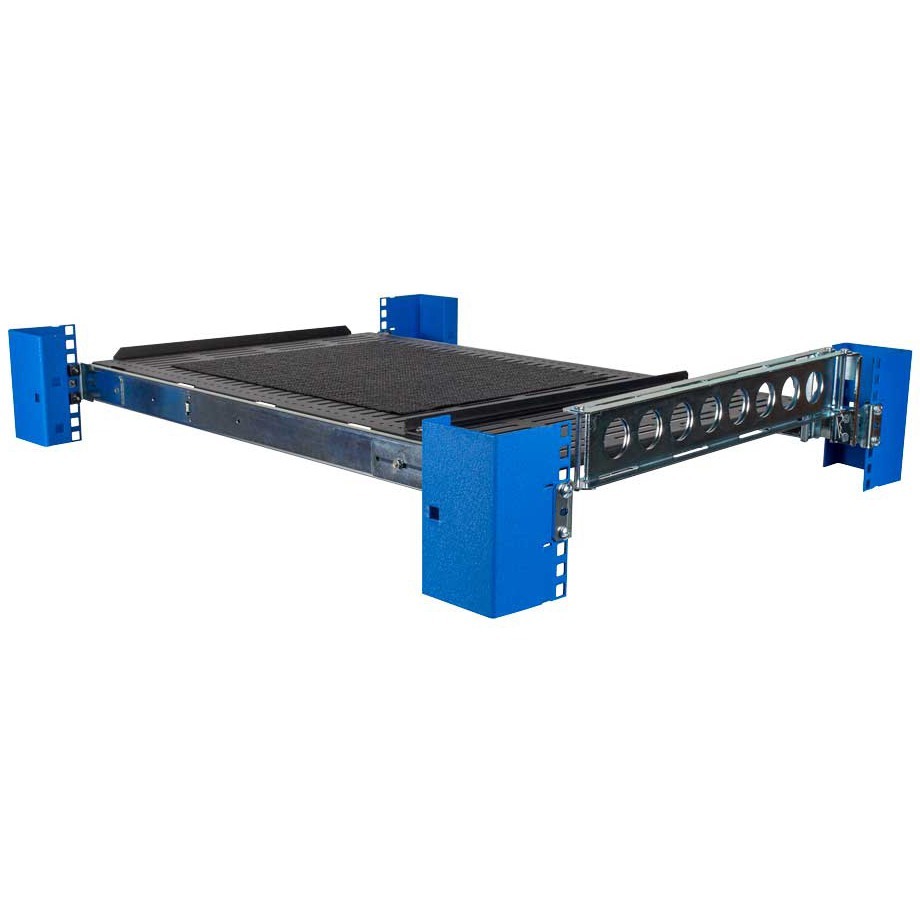

Rack Solutions 1USHL-115 Innovation Sliding Rack Mount Shelves

RackSolutions Sliding Equipment Shelves are compatible with most 19" EIA standard server racks. Our equipment shelves have a 95 lbs (43kgs) weight capacity and will support a wide variety of IT equipment. Computers up to 27" (685mm) deep can be supported on a 19 inch equipment shelf in any 4Post rack. Constructed of 14 GA steel, the RackSolutions Sliding Equipment Shelf is designed for storing your non-rack mountable equipment safely. The slide rails extend a full 30" (762mm) on this equipment shelf model. Cable management is a standard feature of equipment shelves providing a method to professionally route and secure the cables. Your purchase includes a removable front equipment stop bar, adjustable rear equipment stop bar, anti-slip mat, and optional straps for securing equipment for transport or seismic applications.

General Information
Manufacturer	Innovation First International, Inc
Manufacturer Part Number	1USHL-115
Manufacturer Website Address	http://www.innovationfirst.com
Brand Name	Rack Solutions
Product Model	1USHL-115
Product Name	Sliding Rack Mount Shelves
Product Type	Rack Shelf
Technical Information
Features	Cable Management
Rack Post Quantity	4
Physical Characteristics
Maximum Weight Capacity	110 lb
Width	17.7"
Depth	26.8"
Weight (Approximate)	19.10 lb
Rack Height	1U
Rack Width	19"
Miscellaneous
Package Contents	Sliding Rack Mount Shelves Cable Mgmt Arm
Compatibility	Rack Type: 4 Post 19" Rack (Server Racks, Equipment Racks, Cabinet Racks, and Open Frame Racks) Rack Depth: Mounting depth range is 15.5" to 31.5" deep (394-800mm) Square Hole Racks: Compatible with the industry standard 3/8" (10mm) square hole racks Rack manufacturers including Dell, HP-Compaq, IBM, APC, etc. Cage nuts included for square hole mounting Round Hole Racks: Compatible with all standard round (non-threaded) holes Rack manufacturers including HP and IBM Threaded Racks: Compatible with all standard threads including 10-32, 12-24, and Metric M6. Rack manufacturers including Chatsworth, Shark, Great Lakes, Middle Atlantic, Bud, etc.
Certifications & Standards	EIA-310
Country of Origin	United States
TAA Compliant	Yes

•  Rack shelf (sliding)
•  19"


RackSolution's Heavy Duty Sliding Rack Mount Shelf allows servers, desktops and tower computers to be rack mounted in 4 Post or 2 Post 19" racks. The equipment is secured to the shelf with front and rear braces. If additional security is required, there are 1" nylon straps and anti-slip mats available. Features include a space saving mounting tray, high quality ball-bearing slide rails, cable management, and universal rack compatibility.

This Heavy Duty Sliding Rack Mount Shelf is designed for servers, desktops, towers, and other equipment less than 17.7" wide and up to 28" in depth. The Heavy Duty Sliding Rack Mount Shelf will easily support equipment up to 110lbs.

The Heavy Duty Sliding Rack Mount Shelf is a viable alternative to the OEM Tower to Rack Conversion kits. The Heavy Duty Sliding Shelf will continue to be a valuable Capital Asset long after the original server has been upgraded.
