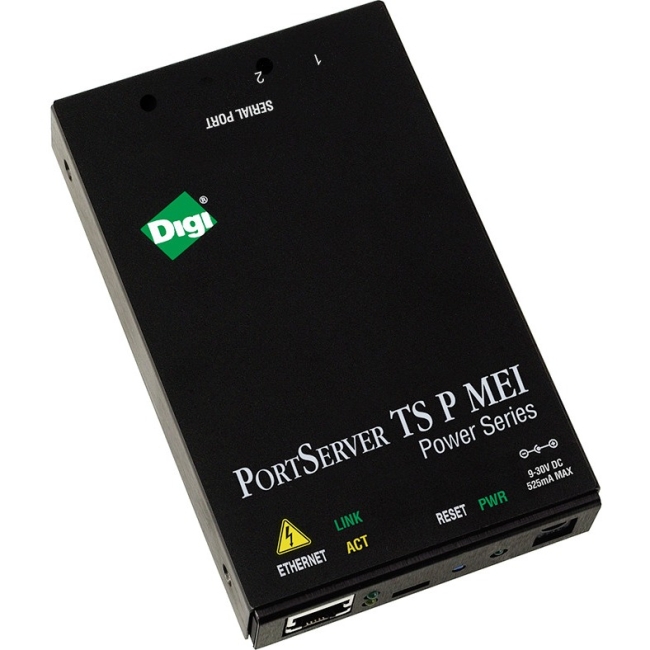

70001992 Digi PortServer TS 2 P MEI, 2 port RS-232/422/485 Powered Serial to Ethernet Device Server, 9-30VDC includes 12V/.5A power supply
Mfg Part Number: 70001992 , Item #: 2661565
Volume Prices:
| Qty | Unit Price |
|---|---|
| 1 + | $698.97 |
| 5 + | $694.91 |
| 10 + | $690.86 |
| 25 + | $686.80 |
, PO and Wire.
PortServer TS P MEI makes it easy to connect RS-232/422/485 serial devices to an IP network. By supporting versatile powering options like powered Ethernet and powered serial, this serial server can adapt to many applications where traditional power alternatives are required.
Powered Ethernet (802.3af, mid- and end-span support) makes it possible to run just one Ethernet cable to the device server for both power and communications. The powered serial feature enables PortServer TS P MEI to power a device over serial using Ring Indicator (RI) or DTR pins. Each power feature is available in addition to a traditional power connector, and can serve as redundant power in case of an outage from either source.
Available in two- and four-port versions, PortServer TS P MEI delivers universal, high performance multiport serial-to- Ethernet connectivity. It is ideal for applications requiring COM ports, serial tunneling, or where TCP/UDP Socket functionality is needed.
| General Information | |
| Manufacturer | Digi International |
| Manufacturer Part Number | 70001992 |
| Manufacturer Website Address | http://www.digi.com |
| Brand Name | Digi |
| Product Line | PortServer |
| Product Model | TS P MEI |
| Product Name | PortServer TS 2 P MEI (mid- and end-span PoE) (International) |
| Product Type | Device Server |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Wireless Specifications | |
| Wireless LAN | No |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Standard | 10/100Base-TX |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | No |
| Serial Port | Yes |
| Parallel Port | No |
| Centronics Port | No |
| PoE (RJ-45) Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Serial Ports | 2 |
| Physical Characteristics | |
| Height | 1" |
| Width | 5.3" |
| Depth | 3.3" |
| Weight (Approximate) | 2.25 oz |
