PANORAMA ANTENNAS
PANORAMA ANTENNAS LPBEM-7-27-2SP LPB THE LOW PROFILE LTE ANT IS A MAGNETIC LOW PROFILE ANTENNA SUPPORTING 4G/3G/
Mfg Part Number: LPBEM-7-27-2SP , Item #: 2617286
, PO and Wire.

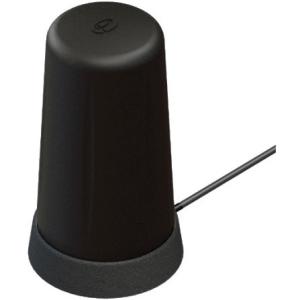

The Panorama LPBEM is a versatile low profile magnetic antenna for LTE, 2G/3G/4G, M2M and IOT Applications.
- Low profile magnetic design
- Excellent Bandwidth
- Supports 2G/3G/4G, 868 & 915MHz
The Panorama LPBEM-7-27 is a range of low cost high performance magnetic mount antennas for temporary fit applications. At only 95mm (3.7") high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear.
The LPBEM offers excellent performance across a wide bandwidth. The LPBEM-7-27 covers global cellular and LTE frequencies from 698-960 MHz and 1710-3800MHz making it an extremely versatile product. Although intended for magnetic mounting on a conductive ground plane the antenna can also be used for desk mounting applications with some impact on performance.
Supplied with a convenient 2m (6') length of flexible RG174 cable the LPBEM is easy to install and compatible with a large range of modems.
| General Information | |
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | LPBEM-7-27-2SP |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Brand Name | Panorama Antennas |
| Product Name | LPBEM-7-27 | Magnetic Low Profile 2G/3G/4G Antenna |
| Product Type | Antenna |
| Technical Information | |
| Directivity | Omni-directional |
| Operating Frequency Range | 1710 MHz to 3800 MHz |
| Operating Frequency Range | 698 MHz to 960 MHz |
| Antenna Gain (Isotropic) | 5 dBi |
| Interfaces/Ports | |
| Connector Type | SMA |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.74" |
| Diameter | 1.89" |
| Miscellaneous | |
| Application/Usage | Wireless Data Network |
| Application/Usage | Cellular Network |
