CHELSIO SM25G-SR 25G SHORT REACH SFP28 OPTIC MODULE
Mfg Part Number: SM25G-SR , Item #: 2616475

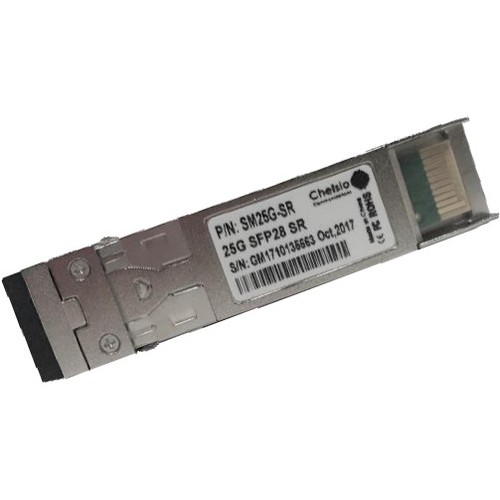

Image may not reflect the actual item.
Price: $542.94
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 01, 2024
No Sales Tax except these states
, PO and Wire.
Chelsio's SM25G-SR 25Gb/s SFP28 short reach transceiver modules are designed for 25 Gigabit Ethernet links over multimode fiber and certified for use with Chelsio's 25-Gigabit Ethernet Unified Wire adapters. The optical module offers a cost-effective and power-efficient network connectivity solution for high- speed data applications.
The Chelsio SM25G-SR optical module is compatible with Chelsio's T6-based Unified Wire adapters. The T6 adapters support PCI Express 3.0 host bus interface, and are optimized for storage, cloud computing, HPC, virtualization and other datacenter applications. The sixth-generation T6 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP, iSCSI, FCoE, iWARP RDMA, IPsec, TLS/SSL, DTLS and SMB 3.X crypto processing. As a result, the system benefits from higher bandwidth, lower latency and reduced power consumption.
Characteristics
Chelsio's SM25G-SR SFP28 transceiver modules are fully compliant with IEEE 802.3ae (10GbE) and IEEE 802.3by (25GbE) specifications; and adhere to RoHS-6 standards.
The T6 adapters with SM25G-SR transceiver modules enable a unified wire for LAN, SAN, and cluster traffic. Built upon a combination of high bandwidth and low latency architecture, the T6 solution offers a complete set of storage and cluster protocols operating over Ethernet (iSCSI, FCoE and iWARP).
T6 solution's port-to-port and adapter-to-adapter failover features are ideal for critical applications that require redundancy and high-availability capabilities. Full Software suite was run with these optical modules and Chelsio recommends using these transceiver modules only with Chelsio adapters to allow the adapter warranty and support structure to remain intact.
The Chelsio SM25G-SR optical module is compatible with Chelsio's T6-based Unified Wire adapters. The T6 adapters support PCI Express 3.0 host bus interface, and are optimized for storage, cloud computing, HPC, virtualization and other datacenter applications. The sixth-generation T6 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP, iSCSI, FCoE, iWARP RDMA, IPsec, TLS/SSL, DTLS and SMB 3.X crypto processing. As a result, the system benefits from higher bandwidth, lower latency and reduced power consumption.
Characteristics
Chelsio's SM25G-SR SFP28 transceiver modules are fully compliant with IEEE 802.3ae (10GbE) and IEEE 802.3by (25GbE) specifications; and adhere to RoHS-6 standards.
The T6 adapters with SM25G-SR transceiver modules enable a unified wire for LAN, SAN, and cluster traffic. Built upon a combination of high bandwidth and low latency architecture, the T6 solution offers a complete set of storage and cluster protocols operating over Ethernet (iSCSI, FCoE and iWARP).
T6 solution's port-to-port and adapter-to-adapter failover features are ideal for critical applications that require redundancy and high-availability capabilities. Full Software suite was run with these optical modules and Chelsio recommends using these transceiver modules only with Chelsio adapters to allow the adapter warranty and support structure to remain intact.
Main Specification
| General Information | |
| Manufacturer | Chelsio Communications |
| Manufacturer Part Number | SM25G-SR |
| Manufacturer Website Address | http://www.chelsio.com |
| Brand Name | Chelsio |
| Product Model | SM25G-SR |
| Product Name | 25Gb Optical Module |
| Product Type | SFP28 |
| Technical Information | |
| Application/Usage | Data Networking |
| Application/Usage | Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Interfaces/Ports Details | 1 x 25GBase-SR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 25 Gigabit Ethernet |
| Network Technology | 25GBase-SR |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Miscellaneous | |
| Compatibility | Chelsio Wire Adapters:
|
| Environmentally Friendly | Yes |
