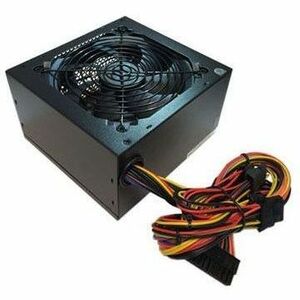

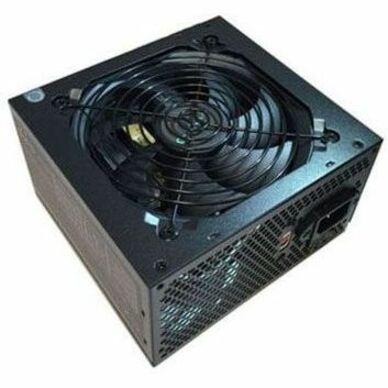

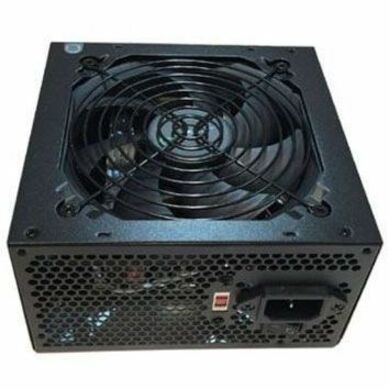

Image may not reflect the actual item.
Price: $54.90
+ Free Shipping
Quantity:
In Stock: 26
Last Updated: Nov 01, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Apevia Corporation |
| Manufacturer Part Number | ATX-VS450W |
| Manufacturer Website Address | http://www.apevia.com |
| Brand Name | Apevia |
| Product Line | Venus |
| Product Model | ATX-VS450W |
| Product Name | Venus ATX-VS450W 450W Power Supply |
| Package Type | Retail |
| Packaged Quantity | 10 |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V |
| Number of Fans | 1 |
| Fan Diameter | 120 mm |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | -12 V DC |
| Output Voltage | 12 V DC |
| Output Voltage | 5 V SB |
| Output Voltage | 5 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage Detail | 12 V DC @ 32 A |
| Output Voltage Detail | 3.3 V DC @ 16 A |
| Output Voltage Detail | 5 V DC @ 16 A |
| Output Voltage Detail | 5 V SB @ 2.5 A |
| Output Voltage Detail | -12 V DC @ 0.3 A |
| Output Power | 450 W |
| Input Frequency | 60Hz |
| Interfaces/Ports | |

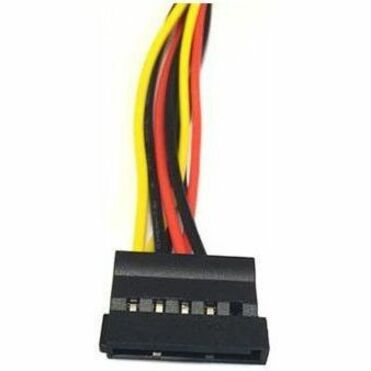

| Number of SATA Power Connectors | 3 |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Internal |
| Height | 3.3" |
| Width | 5.5" |
| Weight (Approximate) | 3 lb |
| Miscellaneous | |
| Country of Origin | China |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
Specifications
- Mfr Part Number: ATX-VS450W
- Features:
- 450W Power with 12cm black fan
- High quality components and housing
- High stability with 5% tolerance of 5V, 3.3V & 12V output
- Low noise auto-thermally control 120mm fan
- Maximum Power: 450 W
- Input:
- Voltage Range: 115 - 230V
- Frequency: 50 - 60Hz
- Current: 10A for 115VAC, 5A for 230VAC
- Type: ATX12V

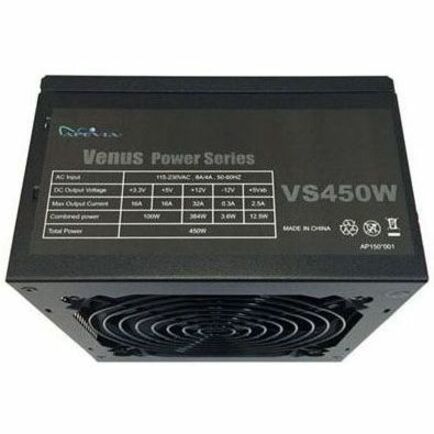

- Output: +3.3V @ 16A, +5V @ 16A, +12V @ 32A, -12V @ 0.3A, +5Vsb @ 2.5A

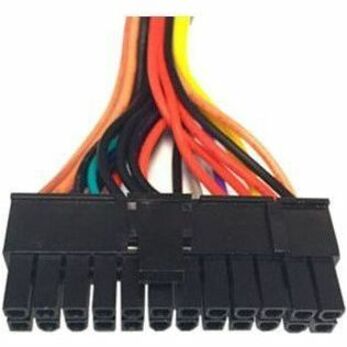

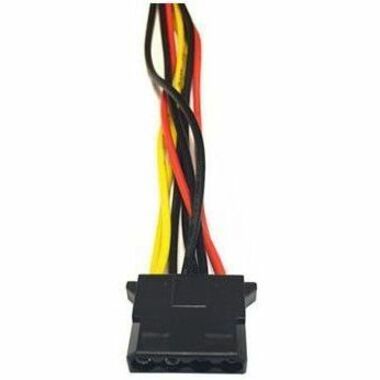

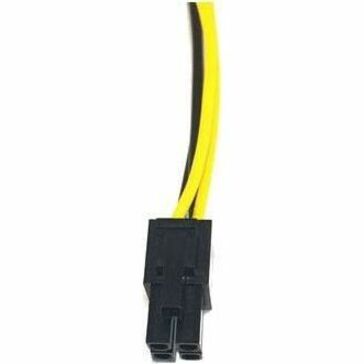

- Connectors: 1x 20/24pin Main Connector, 1x 4pin ATX Connector, 2x SATA Connectors, 4x Peripheral Connectors, 1x Floppy Connector
- Fan: Forced air ventilation by 1 x 120mm black fan
- Color: Black sandblasting coated case
- Dimensions (WxLxH): 5.5 x 5.9 x 3.4 inch / 140.0 x 159.0 x 86.0 mm
- Weight: 3.0 lbs
