APEVIA

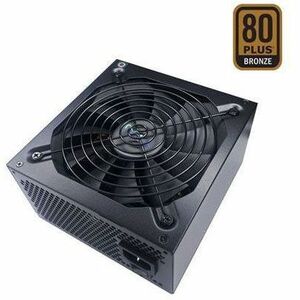

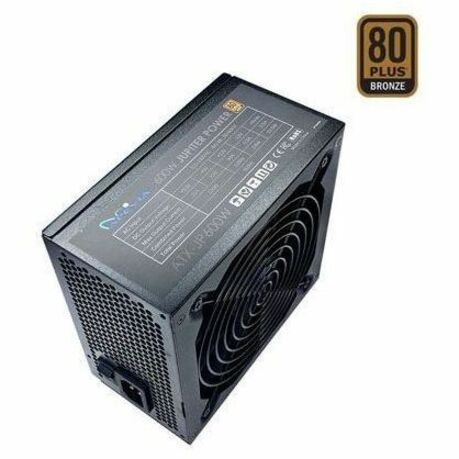

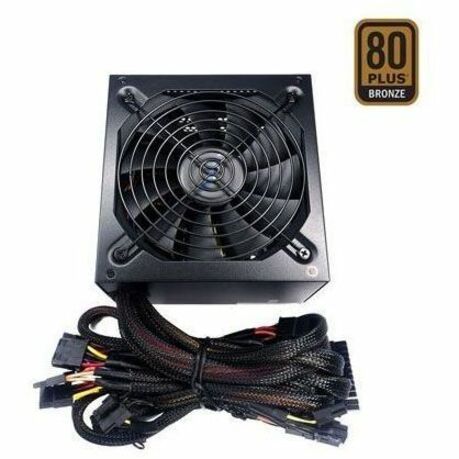

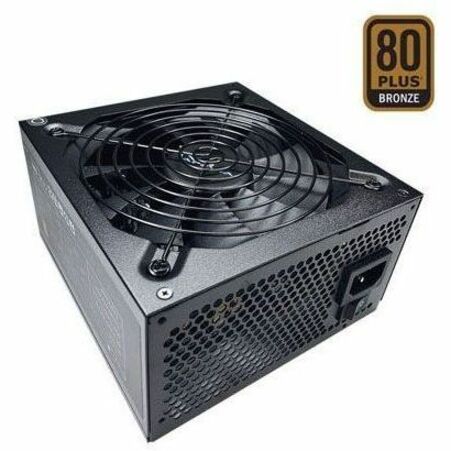

Apevia Jupiter Series ATX-JP600W 600W 80 PLUS Bronze ATX12V Power Supply
Mfg Part Number: ATX-JP600W , Item #: 2610581
Image may not reflect the actual item.
Price: $89.26
+ Free Shipping
Quantity:
In Stock: 5
Last Updated: Jul 02, 2025
No Sales Tax except these states
, PO and Wire.
Apevia Jupiter series power supply is 80 Plus Bronze certified. It offers spellbinding performance for high-end PC gaming rigs and extreme systems that demand the most reliable and efficient energy source. This versatile PS supports NVidia SLI, as well as ATI crossfire and Haswell. The Jupiter series is also ideal for dual and quad core CPUs. The super-silent thermally controlled automatic sensor regulates fan speed while reducing noise. And a powerful 135mm black fan delivers outstanding ventilation.
- 600W Power with 13.5cm black fan
- 80+ Bronze certified
- High stability with 5% tolerance of 5V, 3.3V & 12V output
- High quality components and housing
- Low noise auto-thermally control 135mm fan
- Supports single 12v output for higher power usage
- Universal AC input by active PFC (99%PF Typical)
- Supports SLI, Crossfire & Haswell
- 20 + 4 pin main connector can be used for 20 pin or 24 pin
- 4/8 Pin ATX 12V connector
- 4 x 6+2 Pin PCI - Express
- 4 x SATA connector
- 4 x 4 pin peripheral connector
- 1 x floppy connector
- Look at the label

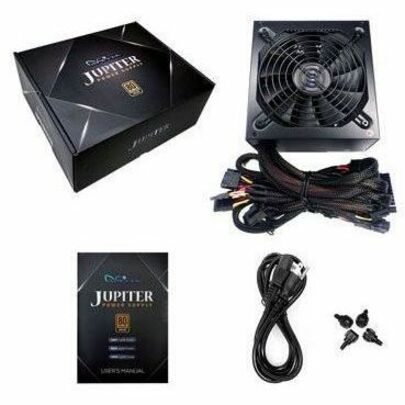

- Retail box
- Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)
Main Specification
| General Information | |
| Manufacturer | Apevia Corporation |
| Manufacturer Part Number | ATX-JP600W |
| Manufacturer Website Address | http://www.apevia.com |
| Brand Name | Apevia |
| Product Line | Jupiter |
| Product Model | ATX-JP600W |
| Product Name | Jupiter ATX-JP600W 600W Power Supply |
| Package Type | Retail |
| Packaged Quantity | 10 |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V |
| Efficiency | 82% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Diameter | 135 mm |
| Protection Type | Over Voltage |
| Protection Type | Short Circuit |
| Protection Type | Over Power |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 5 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage | 12 V DC |
| Output Voltage | 5 V SB |
| Output Voltage | -12 V |
| Output Voltage Detail | 3.3 V DC @ 20 A |
| Output Voltage Detail | 5 V DC @ 20 A |
| Output Voltage Detail | 5 V SB @ 2.5 A |
| Output Voltage Detail | -12 V DC @ 0.3 A |
| Output Voltage Detail | 12 V DC @ 44 A |
| Output Power | 600 W |
| Input Frequency | 60Hz |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 4 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Internal |
| Height | 3.3" |
| Width | 5.9" |
| Weight (Approximate) | 5 lb |
| Miscellaneous | |
| Energy Efficiency Certification | 80 Plus Bronze |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
