SHUTTLE
SHUTTLE DS67U7 SLIM FANLES PC I7-6500U MAX 32GB DDR3L NO RAM HDD
Mfg Part Number: DS67U7 , Item #: 2606706
, PO and Wire.

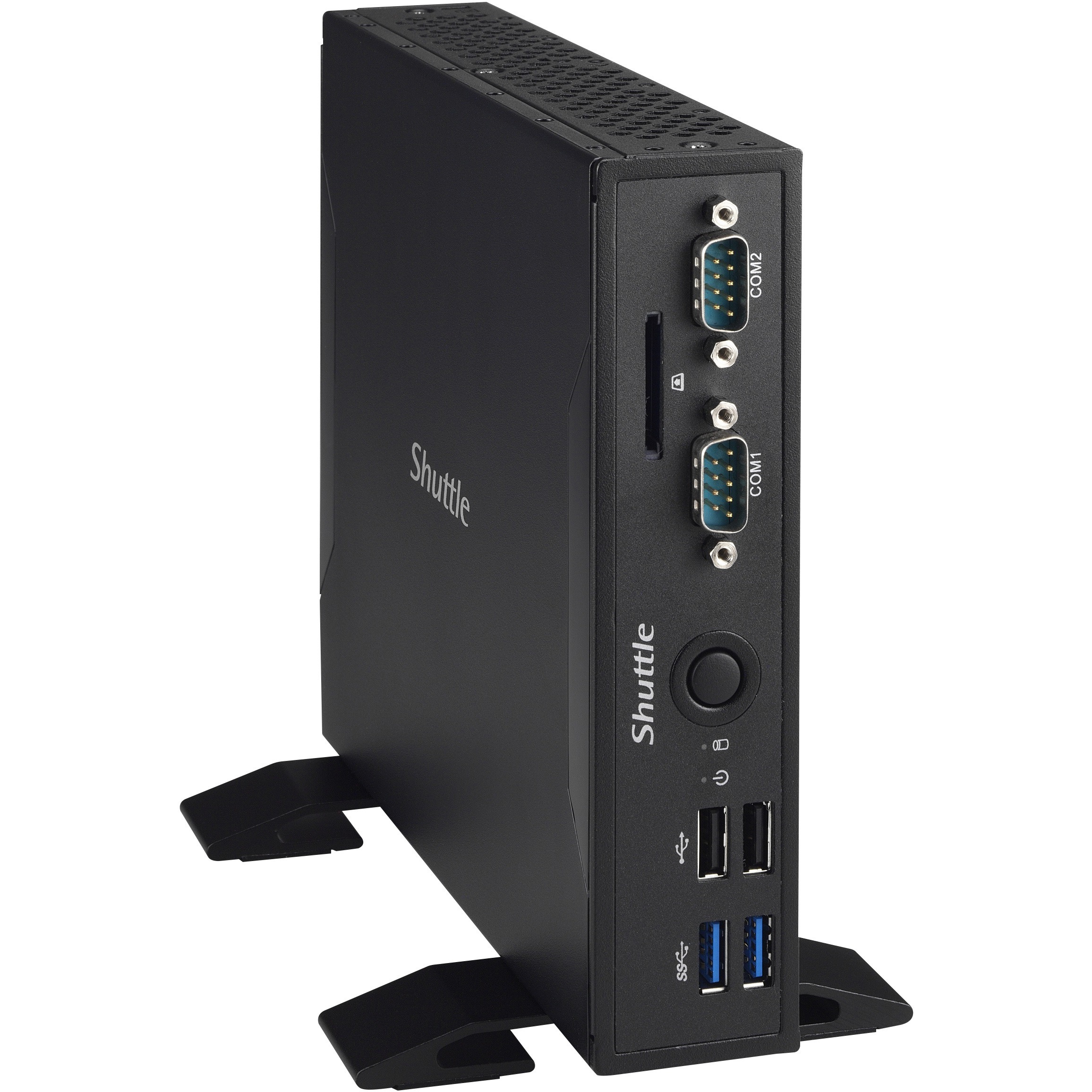

Fanless Slim PC with Skylake-U processor in industrial design

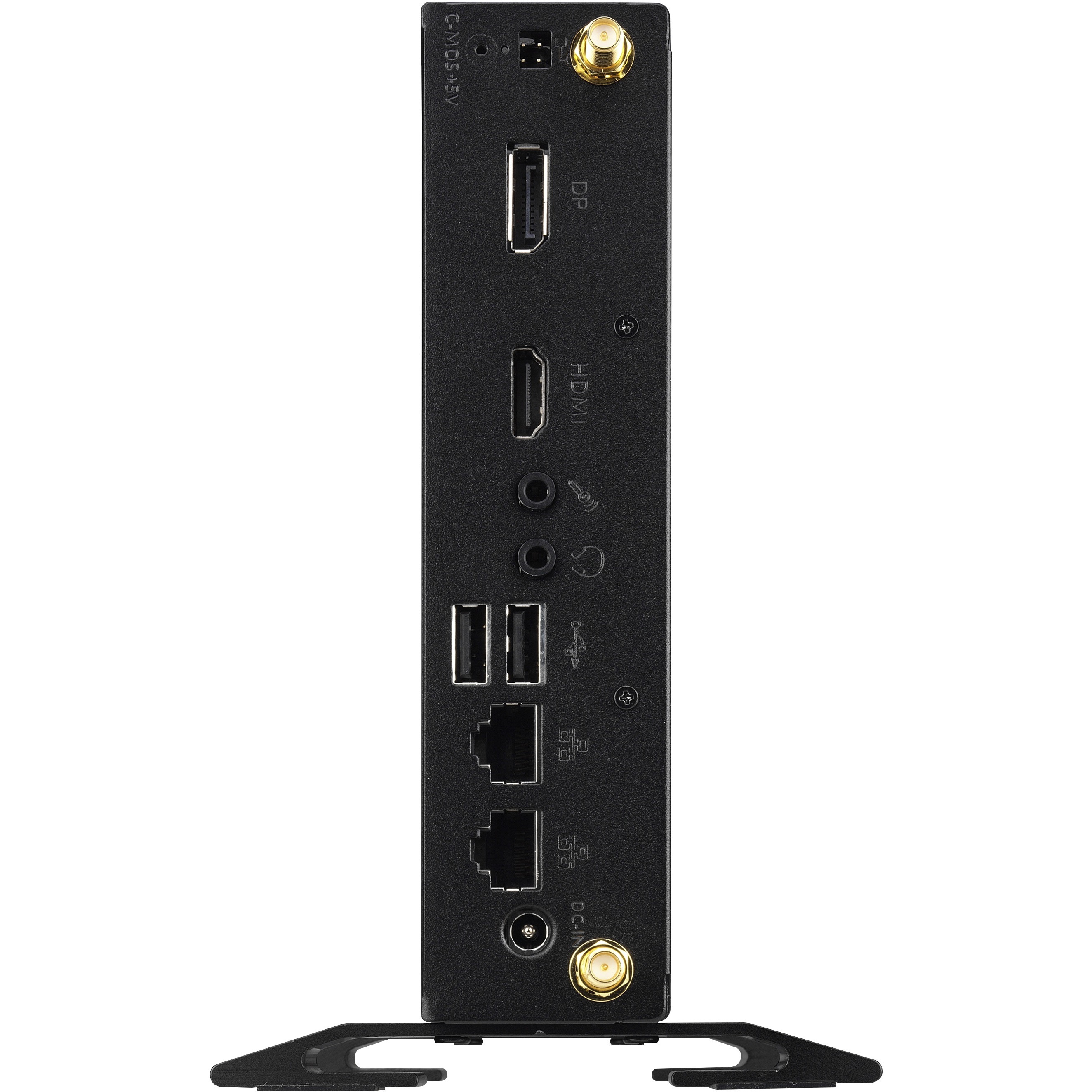

The DS67U7 is a fanless slim PC with a robust 1.3 litre metal chassis and exceptional connectivity: HDMI, DisplayPort, Dual Intel LAN, USB 3.0/2.0, serial ports, audio, card reader and W-LAN 802.11ac with two antennas. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, a 2.5" drive and an M.2 SSD card. The built-in Dual Core Intel "Skylake-U" processor with integrated HD graphics provides ample performance for playback 4K content. Thanks to its re-designed passive cooling architecture, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle Slim-PC Barebone DS67U7 is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Cloud Computing, Office PC and Multimedia.
| General Information | |
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | DS67U7 |
| Manufacturer Website Address | http://www.us.shuttle.com |
| Brand Name | Shuttle |
| Product Line | XPC |
| Product Model | DS67U7 |
| Product Name | XPC DS67U7 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Type | Core i7 |
| Processor Generation | 6th Gen |
| Processor Model | i7-6500U |
| Processor Speed | 2.50 GHz |
| Memory | |
| Memory Technology | DDR3L SDRAM |
| Display & Graphics | |
| Graphics Controller Model | HD Graphics 520 |
| Graphics Memory Technology | DDR3L SDRAM |
| Graphics Memory Accessibility | Shared |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| DisplayPort | Yes |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Slim PC |
| Height | 1.6" |
| Width | 6.5" |
| Depth | 7.9" |
| Weight (Approximate) | 3.15 lb |
| Miscellaneous | |
| Features | Security Slot |
