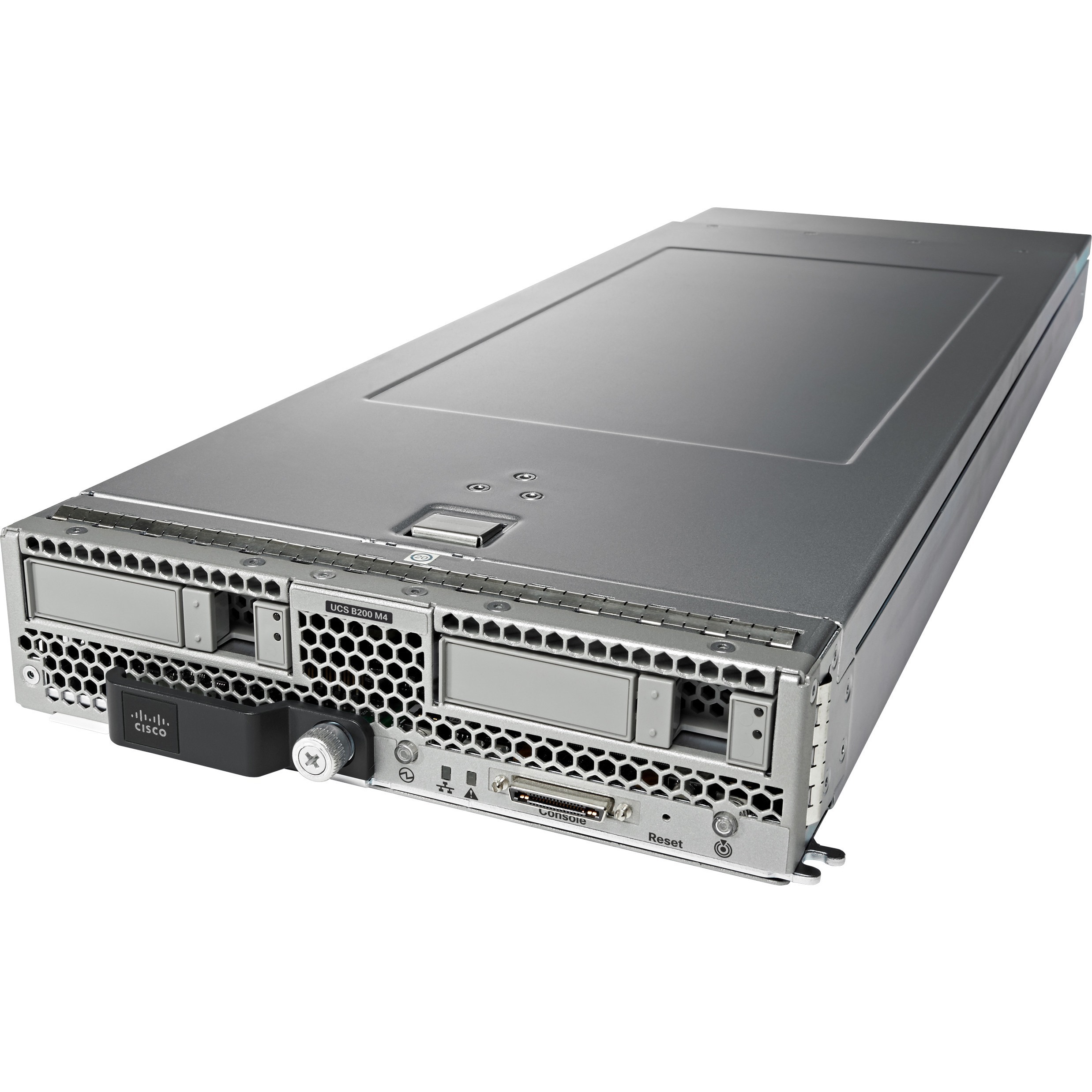

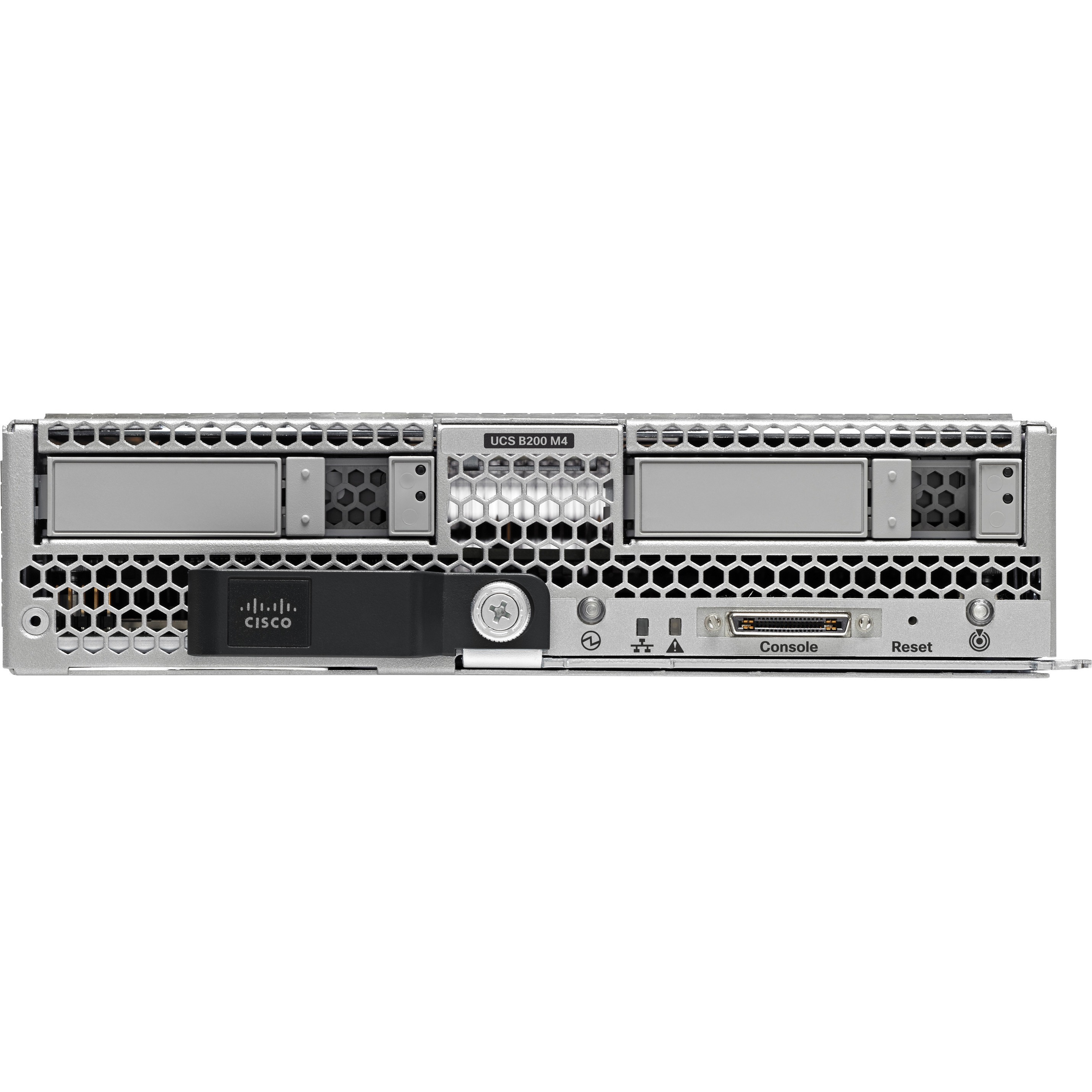

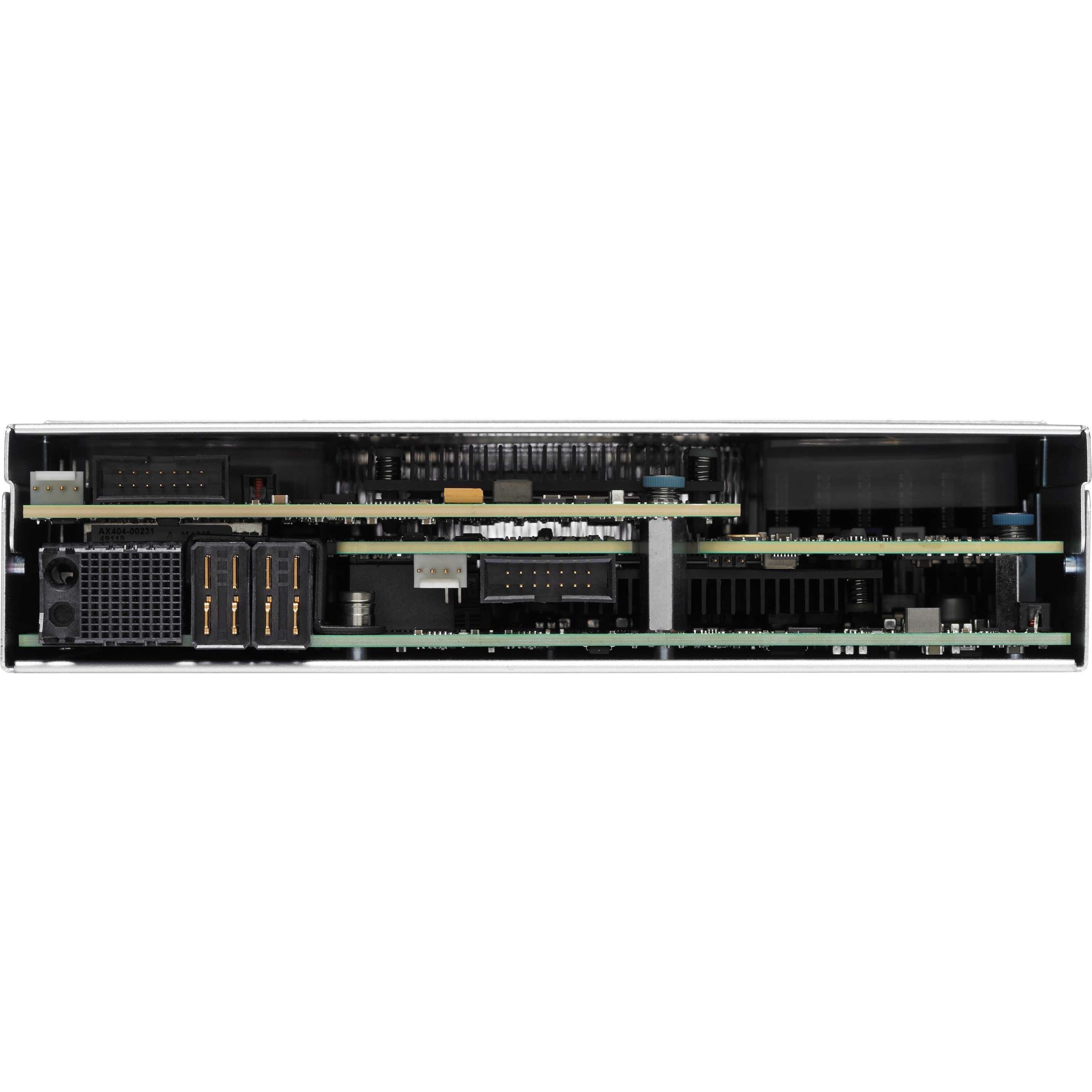

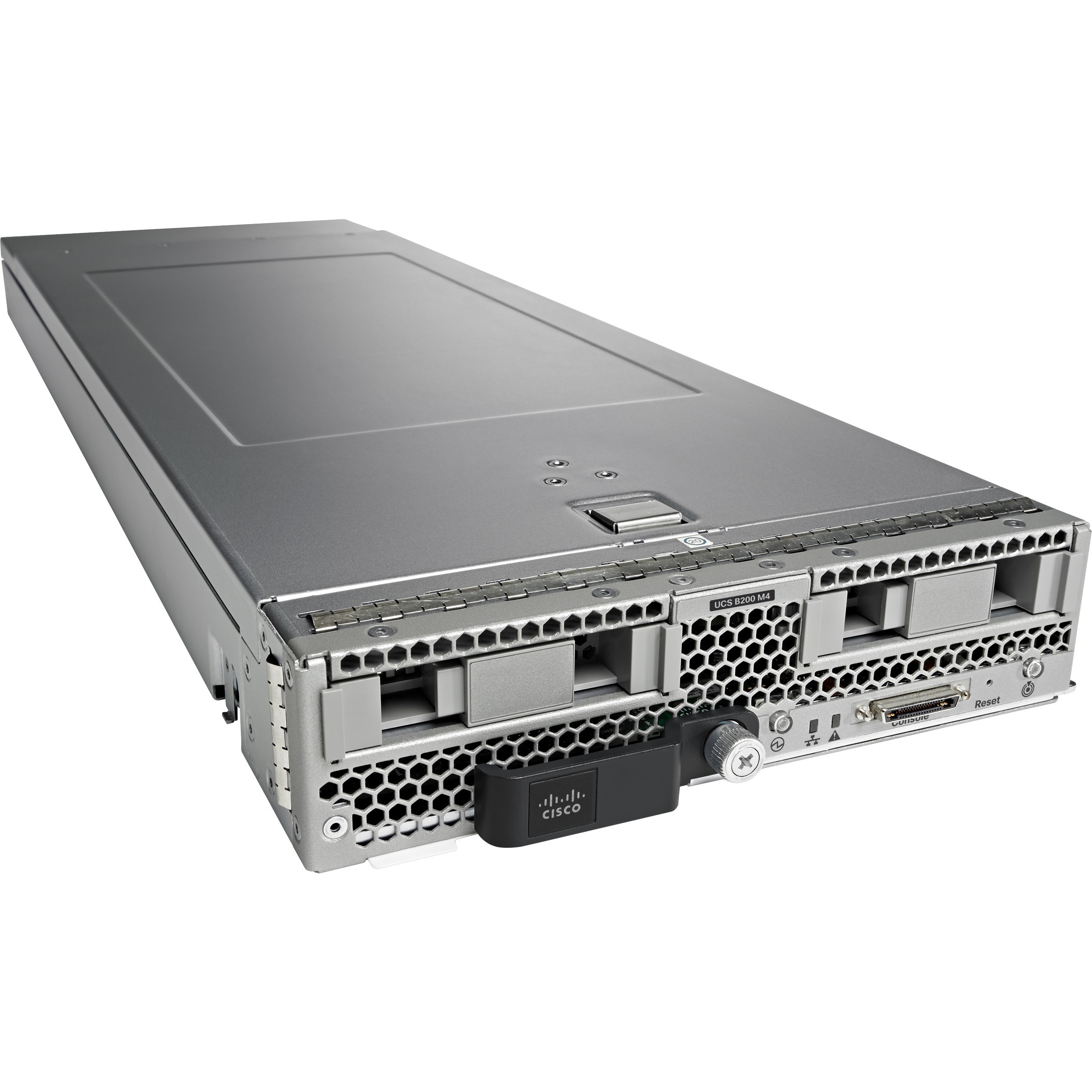

UCS-SP-B200M4-B-A3 Cisco UCS SmartPlay Select B200 M4 Advanced 3 (Not sold Standalone ) - Server - blade - 2-way - 2 x Xeon E5-2650V4 / 2.2 GHz - RAM 256 GB - SAS - hot-swap 2.5" - no HDD - G200e - 10 GigE, 10Gb FCoE - Monitor : none

The Cisco Unified Computing System™ (Cisco UCS®) combines Cisco UCS B-Series Blade Servers and C-Series Rack Servers with networking and storage access into a single converged system with simplified management, greater cost efficiency and agility, and increased visibility and control. One of the newest servers in the Cisco UCS portfolio is the Cisco UCS B200 M4 Blade Server.

The UCS B200 M4 Blade Server delivers performance, flexibility and optimization for data centers and remote sites. This enterprise-class server offers market-leading performance, versatility, and density without compromise for workloads ranging from web infrastructure to distributed databases. The Cisco UCS B200 M4 server can quickly deploy stateless physical and virtual workloads, with the programmable ease of use of the Cisco UCS Manager software and simplified server access with Cisco®SingleConnect technology. Based on the Intel® Xeon® processor E5-2600 v3 product family, it offers up to 768 GB of memory using 32GB DIMMs, up to two drives, and up to 80 Gbps I/O throughput. The Cisco UCS B200 M4 offers exceptional levels of performance, flexibility, and I/O throughput to run your most demanding applications.

In addition, Cisco UCS has the architectural advantage of not having to power and cool excess switches, NICs and HBAs in each blade server chassis. Having a larger power budget per blade server provides uncompromised expandability and capabilities, as in the new Cisco UCS B200 M4 server with its leading memory-slot and drive capacity.

General Information
Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCS-SP-B200M4-B-A3
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	B200 M4
Product Name	UCS B200 M4 Server
Product Type	Server
Processor
Number of Processors Supported	2
Number of Processors Installed	2
Processor Type	Xeon
Processor Model	E5-2650 v4
Processor Core	Dodeca-core (12 Core)
Processor Speed	2.20 GHz
Memory
Standard Memory	256 GB
Maximum Memory Supported	1.50 TB
Memory Technology	DDR4 SDRAM
Controllers
Controller Type	Serial ATA
Controller Type	12Gb/s SAS
RAID Supported	Yes
RAID Levels	0, 1
Display & Graphics
Graphics Controller Model	G200e
Graphics Memory Capacity	8 MB
Network & Communication
Ethernet Technology	10 Gigabit Ethernet
Physical Characteristics
Form Factor	Blade
Height	2"
Width	8"
Depth	24.4"
Weight (Approximate)	15.98 lb
Warranty
Limited Warranty	3 Year
