MIMO MONITORS
MIMO MONITORS UM-1080CH-OF 10.1IN LCD 1280X800 800:1 HDMI USB 14MS OPEN FRAME 10CAP-TOUCH
Mfg Part Number: UM-1080CH-OF , Item #: 2576531
, PO and Wire.

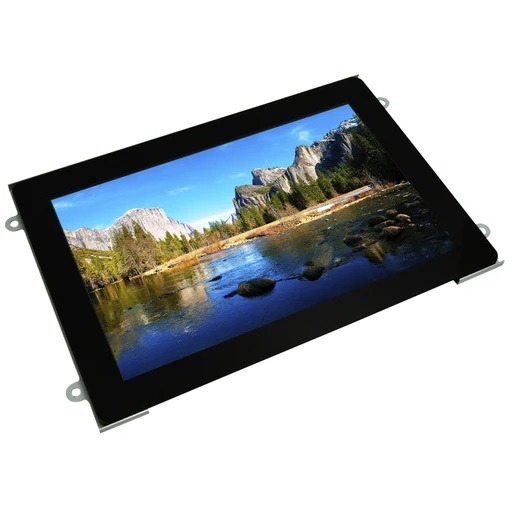

Multi Point Capacitive Touch Open Frame 10.1" IPS USB Monitor
The UM-1080C-OF/UM-1080CH-OF is our widest viewing angle open frame 10.1" monitor. The UM-1080C-OF/UM-1080CH-OF is a 10.1" open frame capacitive touch monitor for applications that will be integrated into other equipment or enclosures. Same slick design features but in a long-lasting molded metal product cycle-enclosure. Future generation panels can be phased-in without external changes. The UM-1080C-OF/UM-1080CH-OF open frame capacitive touch display is designed to provide the most cost effective solutions for consumer, retail POS, and hospitality markets.
Available in Single Cable USB Video
Utilizing the same single cable USB display technology as our line of displays, the UM-1080C-OF is our widest viewing angle 10.1" monitor. The screen can display in either landscape or portrait orientations and has nearly 180 degree viewing angles, all while sending video, touch, and power over a single USB connection.
| General Information | |
| Manufacturer | Mimo Monitors, Inc |
| Manufacturer Part Number | UM-1080CH-OF |
| Manufacturer Website Address | http://www.mimomonitors.com |
| Brand Name | Mimo Monitors |
| Product Model | UM-1080CH-OF |
| Product Name | 10.1" Capacitive Touch Open Frame Display |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 10" |
| Viewable Screen Size | 10.1" |
| Screen Mode | WXGA |
| Response Time | 14 ms |
| Aspect Ratio | 16:10 |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Video | |
| Maximum Resolution | 1280 x 800 |
| Contrast Ratio | 800:1 |
| Native Contrast Ratio | 800:1 |
| Brightness | 350 Nit |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen Type | Capacitive |
| Multi-touch Screen | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| Physical Characteristics | |
| Height | 5.9" |
| Width | 9" |
| Depth | 0.5" |
| Miscellaneous | |
| Country of Origin | South Korea |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
