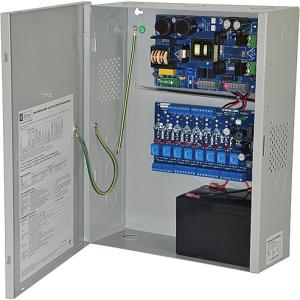

ALTRONIX EFLOW102NA8D EFLOW102NB PWR SPLY W/ACM8CB UL/CUL LISTED CE CSFM APPROVED

eFlow102NA8D distributes and switches power to access control systems and accessories. It converts a 120VAC 60Hz input into eight (8) independently controlled 12VDC PTC protected outputs. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

General Information
Manufacturer	Altronix Corporation
Manufacturer Part Number	EFLOW102NA8D
Manufacturer Website Address	http://www.altronix.com
Brand Name	Altronix
Product Line	eFlow
Product Model	eFlow102NA8D
Product Name	eFlow102NA8D Power Supply
Product Type	Power Supply
Power Description
Number of +12V Rails	8
Input Voltage	120 V AC
Output Voltage	12 V DC
Output Voltage Detail	12 V DC @ 10 A
Output Current	10 A
Physical Characteristics
Form Factor	Wall Mount
Height	15.5"
Width	12.3"
Depth	4.5"
Weight (Approximate)	8.65 lb
Miscellaneous
Compatibility	Access Control System Burglar Alarm System
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	Lifetime
