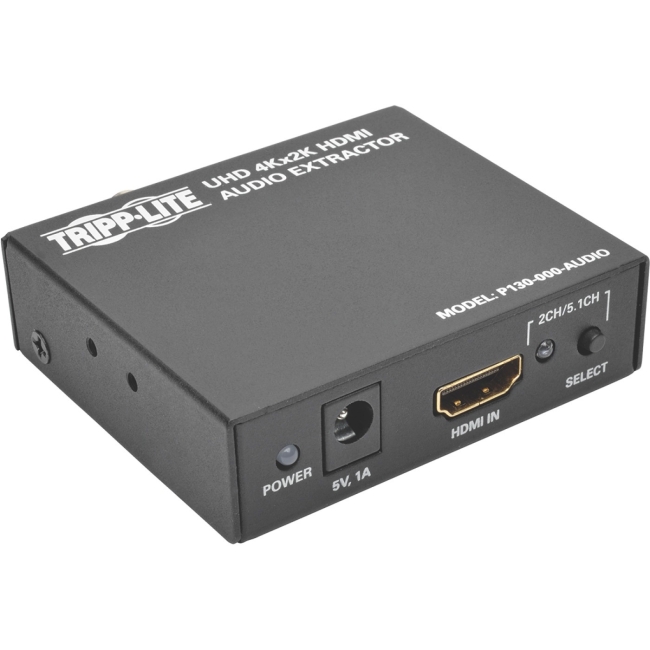

TRIPP LITE P130-000-AUDIO UHD 4KX2K HDMI AUDIO EXTRACTOR 4K X 2K DE-EMBEDDER ULTRA HIGH DEF

The P130-000-AUDIO UHD 4K x 2K HDMI Audio De-Embedder/Extractor is an ideal solution for connecting an HDMI source, such as a Blu-ray™ player or video game system, to audio speakers that don't have an HDMI input port. It separates the audio track from the HDMI signal and sends it directly to an alternate HDMI audio system. It features 3.5 mm stereo, TOSLINK digital optical and RCA digital audio outputs to match most non-HDMI receivers and audio systems.

The P130-000-AUDIO supports both two-channel stereo and multi-channel audio up to 5.1 surround sound. It also supports both uncompressed audio, such as LPCM, and compressed audio formats, including DTS® and Dolby Digital®. An LED indicates when the unit is receiving power, transmitting an audio/video signal or transmitting 5.1-channel surround sound.

On the video side, the P130-000-AUDIO transmits Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. It supports 24-bit True Color (8 bits per channel) at 4K x 2K, 36-bit Deep Color (12 bits per channel) at 1080p, and optional 3D formats up to 50/60 Hz.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	P130-000-AUDIO
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Model	P130-000-AUDIO
Product Name	P130-000-AUDIO UHD 4K x 2K HDMI Audio De-Embedder/Extractor
Product Type	Signal Extractor
Technical Information
Functions	Audio Extraction
Functions	Audio De-embedding
Maximum Resolution	3840 x 2160
Interfaces/Ports
HDMI	Yes
Audio Line Out	Yes
Miscellaneous
Package Contents	P130-000-AUDIO UHD 4K x 2K HDMI Audio De-Embedder/Extractor External Power Supply (Input: 100-240V, 50/60 Hz, 0.3A; Output: 5V, 1A) International Plug Adapters (North America, Europe, U.K. and Australia) Owner's Manual
Country of Origin	Vietnam
Environmentally Friendly	Yes
Warranty
Limited Warranty	2 Year
