TRIPP LITE B126-1A1-POC 125FT HMDI OVER CAT5/6 EXTENDER KIT ACTIVE AUDIO VIDEO 1080P

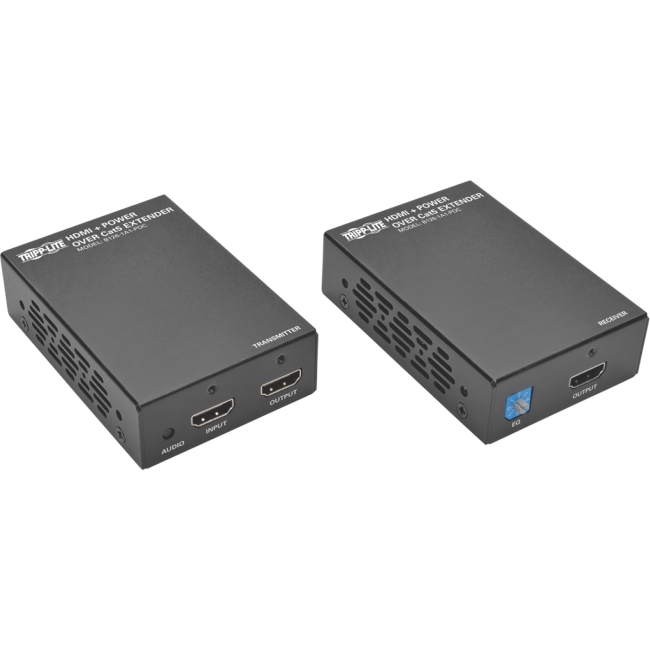

The B126-1A1-POC HDMI over Cat5 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI audio/video signal to a projector, monitor or television. The kit is ideal for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow.

HDMI cable (see Tripp Lite's P569-Series) connects an optional local display and the audio/video source, such as a Blu-ray™ player, to the transmitter's HDMI ports and a remote display to the receiver. Cat5e/6/6a cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). Built-in Power over Cable (POC) technology powers the receiver over Cat5e/6/6a cable, so no external power supply on the display side is needed.

The B126-1A1-POC can extend a high-definition 1080p (@ 60 Hz) signal up to 125 feet. In addition to crystal-clear video, the B126-1A1-POC delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM). Built-in equalization control lets you fine-tune the image quality at the remote display. Supports 24-bit True Color (8 bits per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

Extends High-Definition Signals

• Extends a 1080p (@ 60 Hz) signal up to 125 ft.
• Transmitter and receiver connect with one Cat5e/6/6a cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)
• Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
• Supports 24-bit True Color (8 bits per channel) and HDCP
• Built-in equalization control lets you adjust the image on the local monitor

Easy to Set Up and Use

• Plug-and-play engineering-no software or drivers to download and install
• Works with all operating systems and HDMI video sources
• Units connect quickly to monitors with HDMI cable, such as Tripp Lite's P569-Series
• LEDs indicate at a glance when the units are receiving power and an HDMI signal
• Included mounting hardware lets you install the units on a wall, rack or pole

TAA Compliant

• Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B126-1A1-POC
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	B126-1A1-POC
Product Name	B126-1A1-POC Video Extender Transmitter/Receiver
Product Type	Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	1
Maximum Operating Distance	125 ft
Video
Graphics Modes	Full HD
Maximum Video Resolution	1920 x 1080
Interfaces/Ports
Network (RJ-45)	Yes
HDMI In	Yes
HDMI Out	Yes
Number of Network (RJ-45) Ports	2
Number of HDMI Inputs	1
Number of HDMI Outputs	2
Media & Performance
Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6a
Physical Characteristics
Form Factor	Pole-mountable
Form Factor	Rack-mountable
Form Factor	Wall Mountable
Miscellaneous
Package Contents	Transmitter Unit Receiver Unit Screwdriver for Adjusting Equalization External Power Supply with NEMA 1-15P Plug and 5 ft. Cord (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A) Mounting Hardware Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	1 Year
