TRIPP LITE
TRIPP LITE SRWF6U36 6U WALL MOUNT RACK ENCLOSURE SVR CABINET LOW PROFILE 36IN DEEP
Mfg Part Number: SRWF6U36 , Item #: 2522525
Special Note: Apr 11, 2022
NCNR; If you do not have loading facility, please contact our CST for special handling service.
Image may not reflect the actual item.
Price: $599.99
Quantity:
In Stock: 189
Last Updated: Jun 15, 2026
No Sales Tax except these states
, PO and Wire.

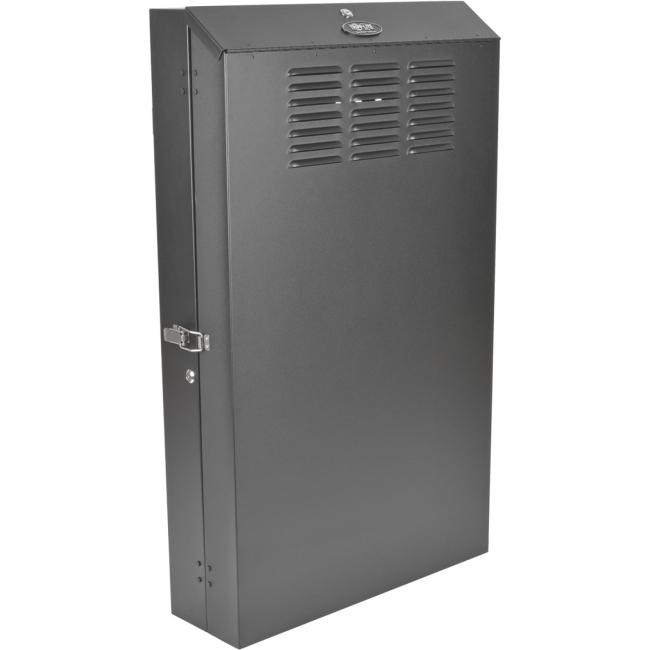

The SRWF6U36 SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 pounds.
Because the low-profile cabinet mounts vertically, it extends less than 12 inches from the wall while housing equipment up to 36 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 6U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.
The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF6U36 comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Because the low-profile cabinet mounts vertically, it extends less than 12 inches from the wall while housing equipment up to 36 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 6U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.
The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF6U36 comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Main Specification
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRWF6U36 |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRWF6U36 |
| Product Name | SmartRack SRWF6U36 Rack Cabinet |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | Battery Pack |
| Application/Usage | Server |
| Application/Usage | UPS |
| Application/Usage | LAN Switch |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Maximum Weight Capacity | 149.91 lb |
| Static/Stationary Weight Capacity | 149.91 lb |
| Height | 43" |
| Width | 25.6" |
| Depth | 11.5" |
| Weight (Approximate) | 88.18 lb |
| Rack Depth | 36" |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
