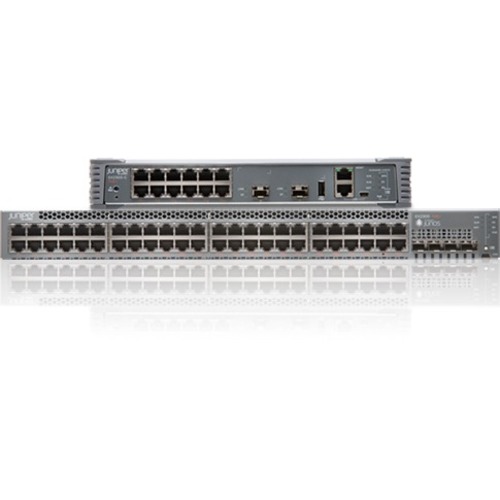

EX2300 and EX2300-C Ethernet Switches deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. Featuring a small, 1U footprint, the EX2300 and EX2300-C are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
The EX2300 offers 24 10/100/1000BASE-T ports in a single platform, while the EX2300-C offers 12 10/100/1000BASE-T ports. Both models are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices. Optional front panel 10GbE uplink ports support connections to higher-layer devices.
Both models support Juniper's unique Virtual Chassis technology, enabling up to four of the switches to be interconnected and managed as a single device. Both models can also act as satellite devices in a Juniper Junos Fusion Enterprise deployment, which combines large numbers of access switches into a logical management platform.
General Information | |
Manufacturer | Juniper Networks, Inc |
Manufacturer Part Number | EX2300-48P |
Manufacturer Website Address | http://www.juniper.net |
Brand Name | Juniper |
Product Series | EX2300 |
Product Model | EX2300-48P |
Product Name | EX2300 Ethernet Switch |
Product Type | Layer 3 Switch |
Interfaces/Ports | |
Total Number of Network Ports | 48 |
Modular | Yes |
Stack Port | No |
Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
Media & Performance | |
Media Type Supported | Optical Fiber |
Media Type Supported | Twisted Pair |
Ethernet Technology | Gigabit Ethernet |
Ethernet Technology | 10 Gigabit Ethernet |
Network Technology | 10GBase-X |
Network Technology | 10/100/1000Base-TX |
I/O Expansions | |
Total Number of Expansion Slots | 4.0 |
Expansion Slot Type | SFP+ |
Shared SFP Slot | No |
Number of SFP+ Slots | 4 |
Network & Communication | |
Layer Supported | 4 |
Management & Protocols | |
Manageable | Yes |
Power Description | |
Power Source | Power Supply |
Physical Characteristics | |
Compatible Rack Unit | 1U |
Form Factor | Desktop |
Form Factor | Rack-mountable |
Form Factor | Wall Mountable |
Height | 1.8" |
Width | 17.4" |
Depth | 10.2" |
Miscellaneous | |
Environmentally Friendly | Yes |
