TRIPP LITE

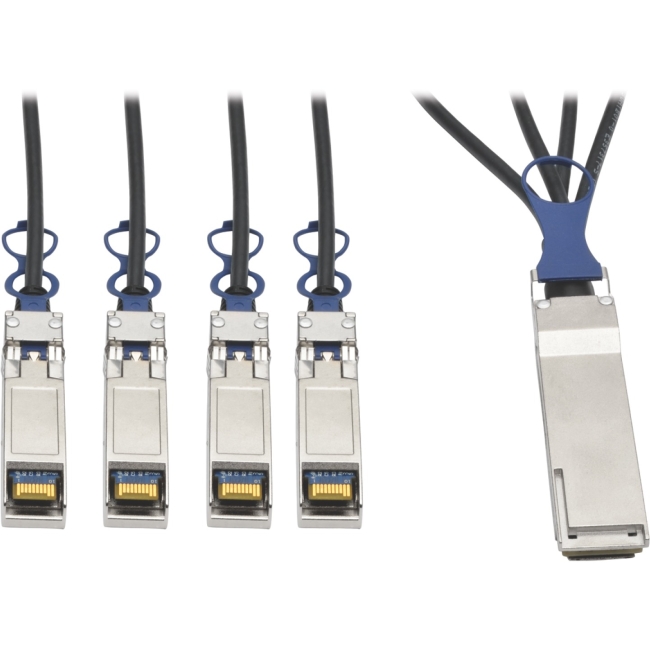

TRIPP LITE N281-03M-BK 40GBE TO 10GBE BREAKOUT CABLE PASSIVE COPPER 3M 10 QSFP+ TO SFP+
Mfg Part Number: N281-03M-BK , Item #: 2508488
, PO and Wire.
The N281-03M-BK 40 GbE QSFP+ to 10 GbE SFP+ Passive DAC Copper Breakout Cable provides next-generation performance by connecting your 40 GbE QSFP+ system to four 10 GbE SFP+ servers, switches and/or adapters. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
This three-meter hot-pluggable cable features zinc die-cast QSFP+ and SFP+ male connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 40-Gigabit Ethernet (40GBASE-CR4), 10GBASE-CR4, 6G SAS, Fibre Channel and SONET.
Flexible 30 AWG conductors maintain a smooth high-frequency response (20 GHz). The N281-03M-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8431 and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports. Compatible with SDR, DDR and QDR.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N28103MBK |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | N281-03M-BK |
| Product Name | N281-03M-BK QSFP+/SFP+ Network Cable |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | QSFP+/SFP+ |
| Cable Length | 10 ft |
| Connector Type on First End | QSFP+ Network - Male |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector Type on Second End | SFP+ Network - Male |
| Connector on Second End Details | 4 x SFP+ Network - Male |
| Device Supported | Network Device |
| Device Supported | Server |
| Device Supported | Switch |
| American Wire Gauge | 30 AWG |
| Data Transfer Rate | 40 Gbit/s |
| Features | Passive |
| Features | Crosstalk Protection |
| Features | EMI/RF Protection |
| Features | Flexible |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Shipping Height | 17" |
| Shipping Width | 14" |
| Shipping Weight (Approximate) | 1.10 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
Similar Products:
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
