B+B SmartWorx/Advantech
B+B SmartWorx/Advantech ADAM-4571 ENET TO 232/422/485 1 PORT
Mfg Part Number: ADAM-4571 , Item #: 2506115

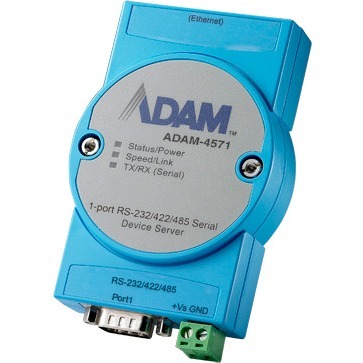

Image may not reflect the actual item.
Price: $194.71
+ Free Shipping
Quantity:
More to Come
Last Updated: Oct 28, 2025
No Sales Tax except these states
, PO and Wire.
- Supports RS-232/422/485 serial communication
- Provides 10/100 Mbps auto-sensing Ethernet port
- Supports baud rate up to 921.6 kbps
- Provides COM port redirection (Virtual COM), TCP and UDP operation modes
- Allows a max. of 5 hosts to access one serial port
- Allows a max. of 16 hosts to be accessed as TCP client mode
- Supports auto re-connection function
- Built-in 15 KV ESD protection for all serial signals
- Automatic RS-485 data flow control
- Supports remote update firmware
Main Specification
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | ADAM-4571 |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Model | ADAM-4571 |
| Product Name | 1-port RS-232/422/485 Serial Device Server |
| Product Type | Device Server |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Wireless Specifications | |
| Wireless LAN | No |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Standard | 10/100Base-TX |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Phone Line (RJ-11) | No |
| Network (RJ-11) | No |
| USB | No |
| Serial Port | Yes |
| Parallel Port | No |
| Centronics Port | No |
| PoE (RJ-45) Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of Serial Ports | 1 |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Form Factor | Wall Mountable |
| Height | 1.2" |
| Width | 5.1" |
| Depth | 2.8" |
| Miscellaneous | |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 5 Year |
