RARITAN
RARITAN PX3-4039V-E2 1PH 208V 24A 20XC13 6XC19 6X5-20R L14-30
Mfg Part Number: PX3-4039V-E2 , Item #: 2502970

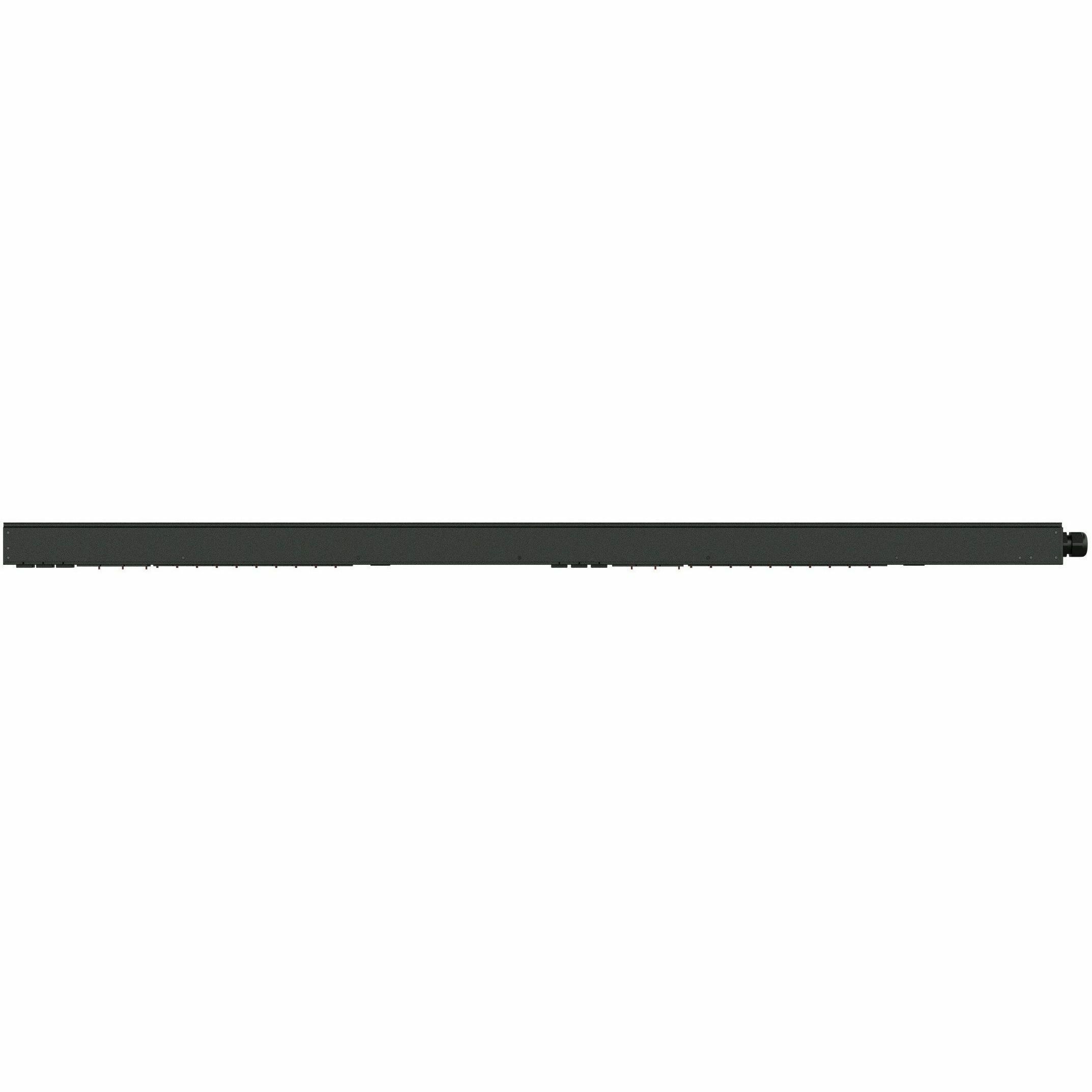

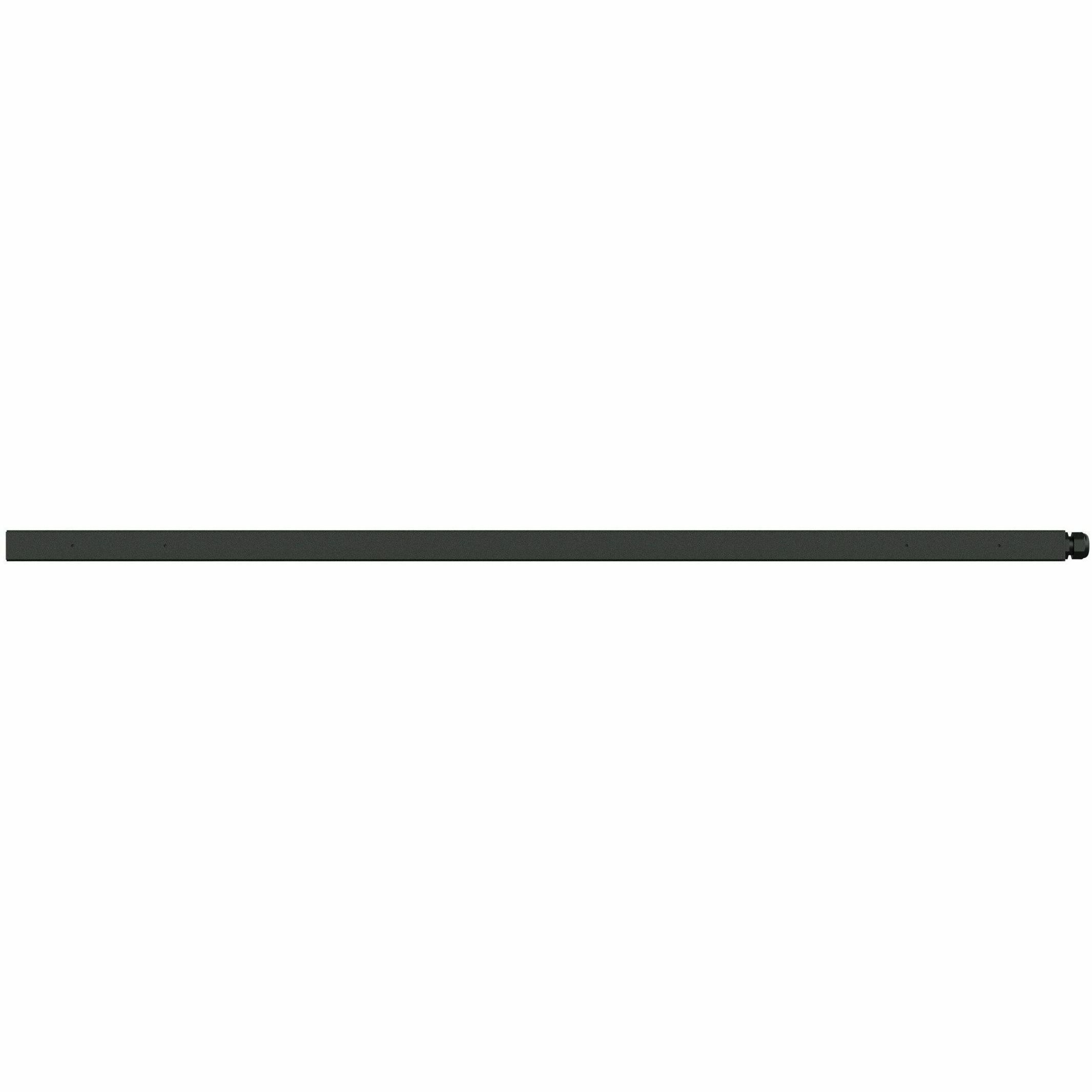

Image may not reflect the actual item.
Price: $3,243.29
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 07, 2026
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-4039V-E2 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Raritan |
| Product Series | PX3 |
| Product Model | PX3-4039V-E2 |
| Product Name | PX3-4039V-E2 32-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered-by-Outlet |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L14-30P (3P4W) |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 6 x NEMA 5-20R |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 20 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Protection Type | Branch Circuit |
| Locking Receptacles | SecureLock |
| Features | LCD Display |
| Features | Onboard Display |
| Load Capacity (VA) | 5 W |
| Power Description | |
| Input Voltage | 208 V AC |
| Input Voltage Range | 190 V AC - 208 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 100 V AC - 208 V AC |
| Power Rating (VA) | 5000 VA |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Management | |
| Remote Outlet Switching | No |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Other |
| Product Color | Black Powder Coat |
| Mount Type | Rack-mountable |
| Cord Length | 9.84 ft |
| Height | 70.1" |
| Width | 2.1" |
| Depth | 2.8" |
| Weight (Approximate) | 16.76 lb |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 85% |
| Miscellaneous | |
| Certifications & Standards |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
