N281-02M-BK Tripp Lite Passive DAC Copper Breakout Cable - 40GBase direct attach cable - QSFP+ - 4x SFP+ - 6.6 ft - SFF-8431/SFF-8436 - black
Mfg Part Number: N281-02M-BK , Item #: 2502404
Special Note: Jun 26, 2023
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.

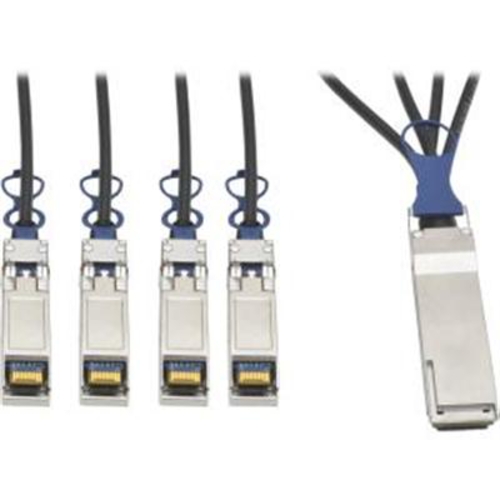

The N281-02M-BK 40 GbE QSFP+ to 10 GbE SFP+ Passive DAC Copper Breakout Cable provides next-generation performance by connecting your 40 GbE QSFP+ system to four 10 GbE SFP+ servers, switches and/or adapters. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
This two-meter hot-pluggable cable features zinc die-cast QSFP+ and SFP+ male connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 40-Gigabit Ethernet (40GBASE-CR4), 10GBASE-CR4, 6G SAS, Fibre Channel and SONET.
Flexible 30 AWG conductors maintain a smooth high-frequency response (20 GHz). The N281-02M-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8431 and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports. Compatible with SDR, DDR and QDR.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N281-02M-BK |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Model | N281-02M-BK |
| Product Name | N281-02M-BK QSFP+/SFP+ Network Cable |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | QSFP+/SFP+ |
| Cable Length | 6.60 ft |
| Connector Type on First End | QSFP+ Network - Male |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector Type on Second End | SFP+ Network - Male |
| Connector on Second End Details | 4 x SFP+ Network - Male |
| Device Supported | Switch |
| Device Supported | Server |
| Device Supported | Network Device |
| American Wire Gauge | 30 AWG |
| Data Transfer Rate | 40 Gbit/s |
| Features | Crosstalk Protection |
| Features | EMI/RF Protection |
| Features | Flexible |
| Features | Passive |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Shipping Height | 17" |
| Shipping Width | 14" |
| Shipping Weight (Approximate) | 12.80 oz |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
