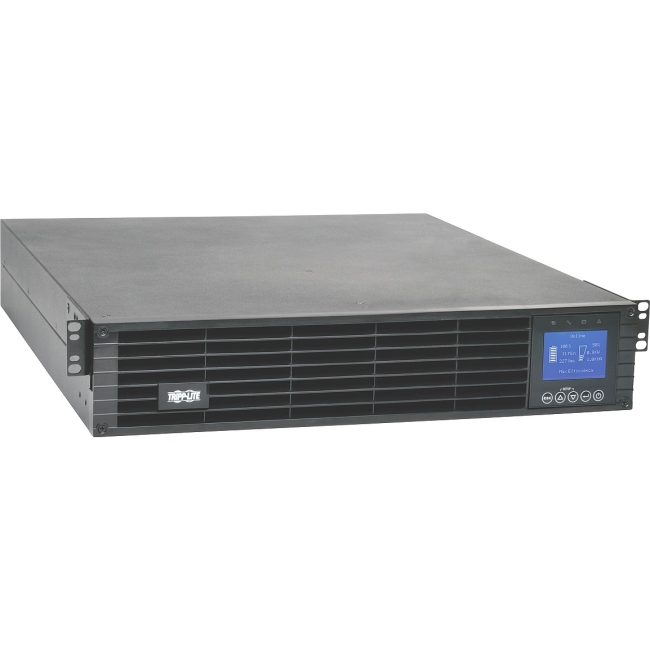

TRIPP LITE SUINT2200LCD2U 2200VA 1980W UPS SMART ONLINE INTL LCD RACKMOUNT 208/230V USB 2U

Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SUINT2200LCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72RT, sold separately).

Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

10 Outlets Protect Your Connected Components
Eight C13 and two C19 outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Five outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Clear LCD Interface Keeps You Informed at a Glance
The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation.

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	SUINT2200LCD2U
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartOnline
Product Model	SUINT2200LCD2U
Product Name	SmartOnline SUINT2200LCD2U 2200VA Rack-mountable UPS
Product Type	Double Conversion Online UPS
Technical Information
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C19
Receptacle Detail	8 x IEC 60320 C13
Receptacle Detail	1 x IEC 60320 C19
Power Description
Load Capacity (VA)	2200 VA
Load Capacity (Watt)	1980 W
Input Voltage	230 V AC
Input Voltage	220 V AC
Input Voltage	208 V AC
Input Voltage	200 V AC
Input Voltage	240 V AC
Output Voltage	230 V AC
Output Voltage	208 V AC
Output Voltage	220 V AC
Output Voltage	240 V AC
Output Voltage	200 V AC
Battery Information
Backup/Run Time (Full Load)	4.30 Minute
Typical Battery Recharge Time	3 Hour
Physical Characteristics
Height	3.5"
Width	17.2"
Depth	19.5"
Form Factor	Rack-mountable
Weight (Approximate)	50.94 lb
Miscellaneous
Package Contents	SmartOnline SUINT2200LCD2U 2200VA Rack-mountable UPS 4-Post Rack-mount Installation Kit USB Cable RS-232 Cable C19-to-C20 Power Cable 2 x C13-to-C14 Power Cables Owner's Manual
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
