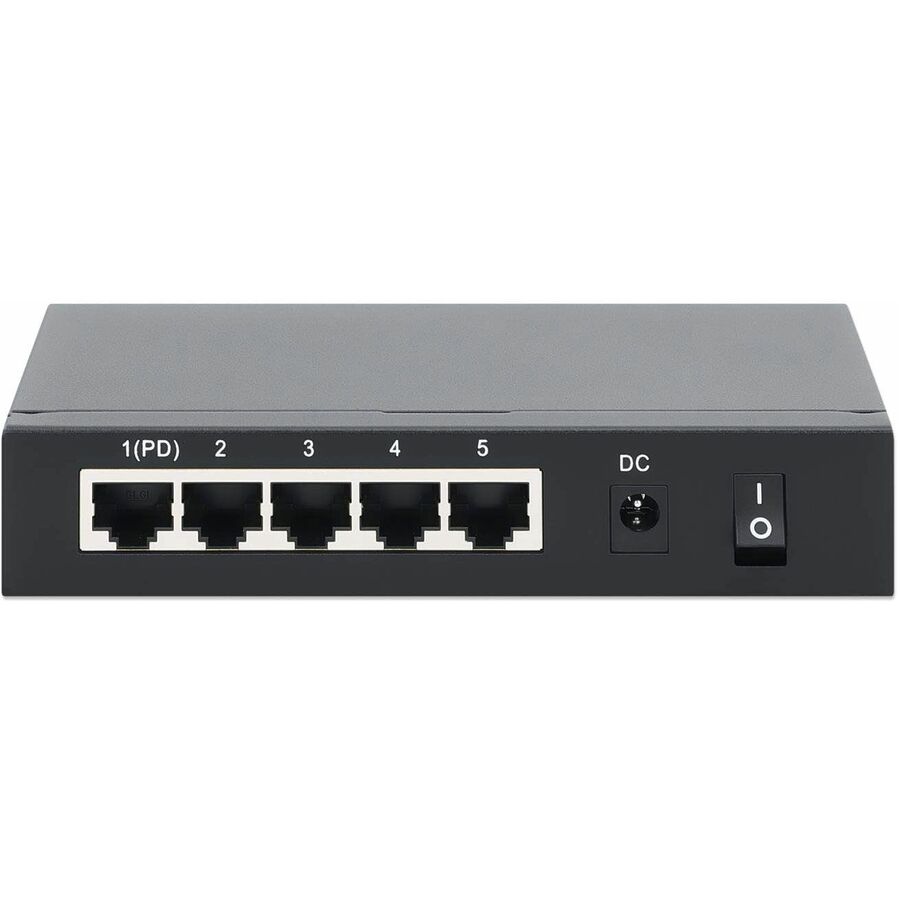

INTELLINET NETWORKING 561082 5 Port Gigabit PoE Switch

Get the most out each Power over Ethernet connection with this PoE passthrough switch

The PoE-Powered 5-Port Gigabit Switch with PoE-Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports, this switch can power up to four wireless LAN access points and bridges, VoIP phones or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds of up to 1,000 Mbps.

Usable as a PoE extender

Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring, which ultimately minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices.

Power over Ethernet 802.3at Compliant

This switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of a PoE Splitter from Intellinet Network Solutions.

The Perfect Workgroup Switch

When you connect the PD port (port 5) to a PoE+ enabled IEEE 802.3af/at compliant PoE injector or switch, this product uses some of the electric current to power itself and passes the available surplus power to up to four PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of the PSE ports in your data center.

Eliminate Bottlenecks with Gigabit Speeds

Equipped with five auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 10 Gbps switch fabric provides plenty of performance for your computers and other networking devices.

Wall-mount option

For full installation flexibility, you can mount the switch on the wall through its four built-in holes or use the included non-slip rubber feet to place it on a desktop.

General Information
Manufacturer	IC INTRACOM
Manufacturer Part Number	561082
Manufacturer Website Address	http://www.icintracom.com
Brand Name	Intellinet
Product Name	PoE Powered 5-Port Gigabit Switch with PoE Passthrough
Package Type	Retail
Product Type	Ethernet Switch
Technical Information
Features	Fanless
Interfaces/Ports
Total Number of Network Ports	5
Uplink Port	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	5 x Gigabit Ethernet PoE
Media & Performance
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-TX
Network & Communication
Layer Supported	2
Networking Standards	IEEE 802.3af
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.3az
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.3at
Management & Protocols
Manageable	Yes
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	26 W
Input Voltage	230 V AC
Input Voltage	120 V AC
Frequency	50 Hz
Frequency	60 Hz
Power Source	Power Adapter
Power Consumption	30 W
Physical Characteristics
Product Material	Metal
Form Factor	Desktop
Form Factor	Compact
Form Factor	Wall Mountable
Height	1.1"
Width	5.5"
Length	3.1"
Weight (Approximate)	9.52 oz
Miscellaneous
Package Contents	PoE Powered 5-Port Gigabit Switch with PoE Passthrough Power Adapter Power Cable Instructions
Application/Usage	IP Camera
Application/Usage	VoIP Phone
Application/Usage	Wireless Access Point
Application/Usage	Network
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
