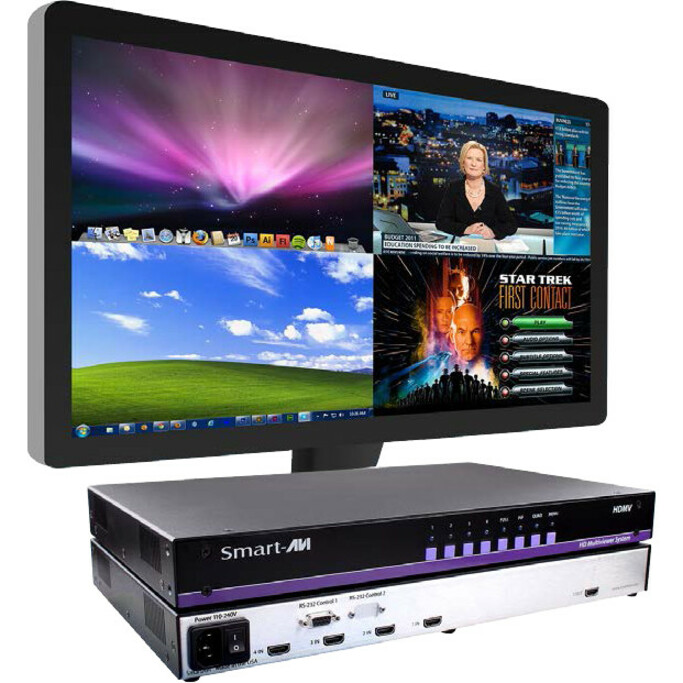

SMARTAVI SM-HDMV-S 4PORT HDMI STEREO AUDIO RS-232 REAL-TIME MULTIVIEWER
Mfg Part Number: SM-HDMV-S , Item #: 2479798
Image may not reflect the actual item.
Price: $3,639.06
+ Free Shipping
Quantity:
More to Come
Last Updated: Oct 04, 2025
No Sales Tax except these states
, PO and Wire.
The HDMV is a member of SmartAVI's HD Multiviewer series of products that allows users to view up to four different HD digital video sources on one display device simultaneously. Connections to video sources are managed via HDMI or DVI connectors, with advanced viewing options such as dual-mode, quad-mode, full-screen mode, and PIP (picture in picture) mode. Use this device to simplify the management of multiple video sources by accessing and controlling them from a single set of controls on one display.
- View up to four sources on a single monitor at the press of a button
- On-screen display (OSD) makes setup and switching easy
- Display each computer with clean and crisp high-resolution video
- Supports DVI-D input resolutions up to 1900 x 1200
- Supports 1080p HDMI output (1920 x 1080)
- Delivers uncompressed digital video with zero signal loss
- HDCP and HDMI 1.4 compliant
- Supports EDID for total control of compliant displays
- Outputs HDMI up to 40 feet
- 1920 x 1080 HDMI or DVI-D
- Change views by pressing the tact switches, keyboard hotkeys and RS-232
- Quad-mode splits the screen to show four sources on one screen
- Dual-mode splits the screen to show two sources on one screen
- PiP-mode displays one device in full screen with three thumbnail views
Main Specification
| General Information | |
| Manufacturer | Smart Audio Video Innovation |
| Manufacturer Part Number | SM-HDMV-S |
| Manufacturer Website Address | http://www.smartavi.com |
| Brand Name | SmartAVI |
| Product Model | SM-HDMV |
| Product Name | 4-Port HDMI, Real-Time Multiviewer with PiP/Dual/Quad/Full Modes |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 4 |
| Device Supported | Display |
| Device Supported | Computer |
| Number of Displays Supported | 1 |
| Video | |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Maximum Operating Distance | 40 ft |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17" |
| Depth | 10.2" |
| Weight (Approximate) | 4.05 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
