SMARTAVI
SMARTAVI HDR16X16S 16X16 HDMI RS-232 IR TCP/IP ROUTER UP TO 40FT
Mfg Part Number: HDR16X16S , Item #: 2479708

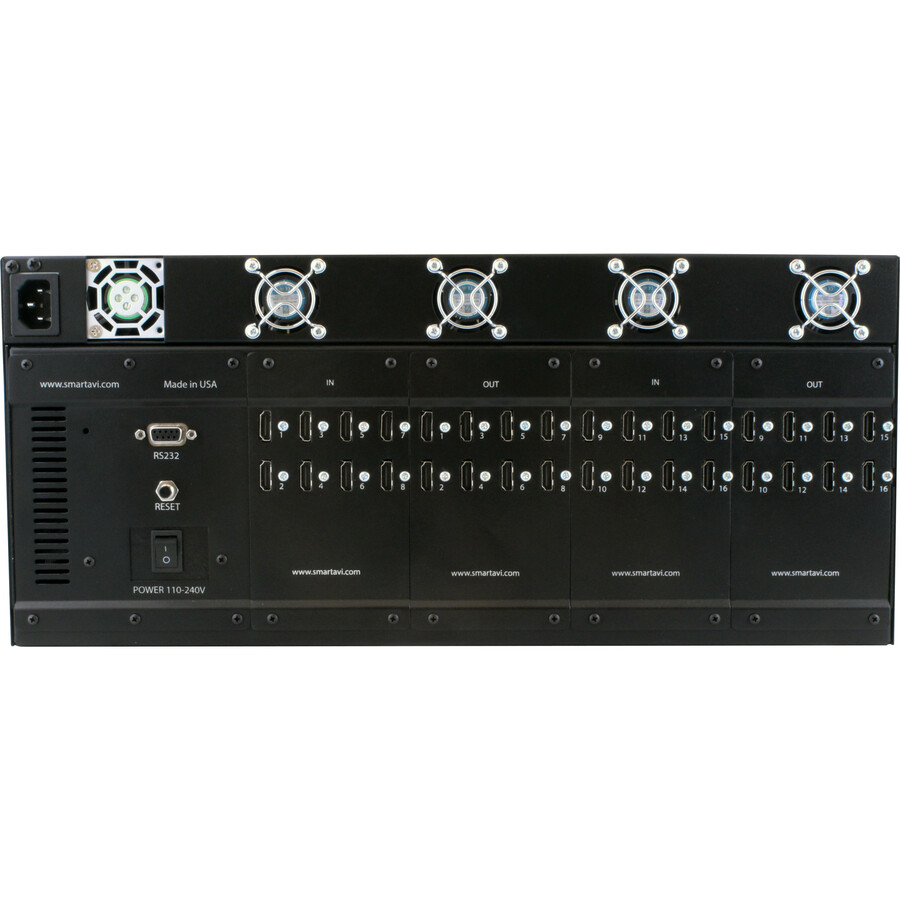

Image may not reflect the actual item.
Price: $8,537.87
+ Free Shipping
Quantity:
More to Come
Last Updated: Sep 07, 2025
No Sales Tax except these states
, PO and Wire.
The HDR 16x16 conforms to the HDMI 1.4 standard and provides a connection to view any sixteen HDMI video sources on any combination of sixteen video displays. The matrix configuration provides maximum flexibility, allowing switching between any high-definition source and/or display. The HDR 16x16 provides HDMI output up to 40 feet with HDTV resolutions of 480p, 720p, 1080i and 1080p. The system works with Blu-ray players, TiVo systems, HT PCs and satellite set-top boxes that connect to an HDMI display.
Users can switch to any source locally or remotely via a RS-232, IR, USB or TCP/IP connection. Our HDMI router is controlled by Windows®-based software that is easy to understand and simple to use - a cornerstone of all SmartAVI products.
Users can switch to any source locally or remotely via a RS-232, IR, USB or TCP/IP connection. Our HDMI router is controlled by Windows®-based software that is easy to understand and simple to use - a cornerstone of all SmartAVI products.
Main Specification
| General Information | |
| Manufacturer | Smart Audio Video Innovation |
| Manufacturer Part Number | HDR16X16S |
| Manufacturer Website Address | http://www.smartavi.com |
| Brand Name | SmartAVI |
| Product Model | HDR16X16S |
| Product Name | HDMI 16x16 Matrix Switcher |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 16 |
| Device Supported | Display |
| Device Supported | Digital Signage |
| Device Supported | Computer |
| Device Supported | Blu-ray Disc Player |
| Device Supported | Gaming Console |
| Device Supported | Camera |
| Number of Displays Supported | 16 |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 16 |
| Number of HDMI Outputs | 16 |
| Media & Performance | |
| Maximum Operating Distance | 40 ft |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 5.3" |
| Width | 19" |
| Depth | 13" |
| Weight (Approximate) | 15 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 1 Year |
