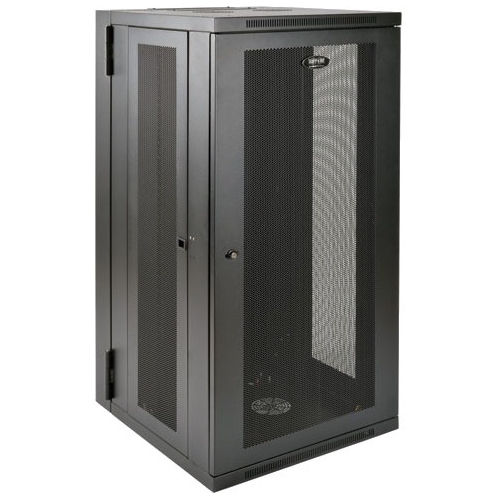

SRW26USDP Tripp Lite 26U Wall Mount Rack Enclosure Server Cabinet Swinging Hinged Door Deep - 19" 26U Wide x 24.50" Deep Wall Mountable for UPS - Black - Steel

The SRW26USDP SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

The SRW26USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	SRW26USDP
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Line	SmartRack
Product Model	SRW26USDP
Product Name	SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back
Product Type	Rack Cabinet
Technical Information
Application/Usage	UPS
Physical Characteristics
Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Product Material	Steel
Maximum Weight Capacity	250 lb
Static/Stationary Weight Capacity	250 lb
Height	49.6"
Width	23.6"
Depth	25.5"
Weight (Approximate)	124.90 lb
Rack Height	26U
Rack Width	19"
Rack Depth	24.50"
Miscellaneous
Package Contents	SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back 48 x M6 Screws 48 x M6 Cage Nuts 48 x M6 Washers 48 x 12-24 Screws 2 x Keys Owner's Manual
Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	5 Year
