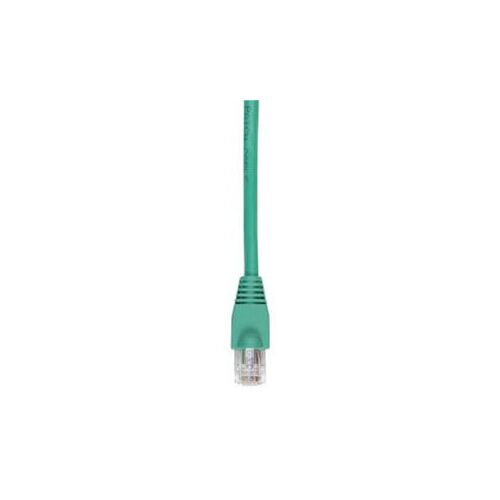

N201-005-GN Tripp Lite Cat6 Gigabit Snagless Molded Patch Cable

With Tripp Lite's new category 6 molded patch cables you can stay ahead of the game by using this high-speed cable to distribute data, voice and video. These cables deliver stable performance up to 550MHz. Each comes UL verified meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with high-quality copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum. Designed for use in category 6, category 5e and category 5 applications. Cat6 cables are available in a variety of colors with a snagless boot preventing cable snags. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	N201-005-GN
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Model	N201-005-GN
Product Name	Cat.6 Patch Network Cable
Product Type	Network Cable
Technical Information
Cable Type	Category 6
Cable Characteristic	Patch Cable
Cable Length	5 ft
Connector Type on First End	RJ-45 Network - Male
Connector on First End Details	1 x RJ-45 Network - Male
Connector Type on Second End	RJ-45 Network - Male
Connector on Second End Details	1 x RJ-45 Network - Male
Contact Plating	Gold
Conductor	Copper
Shielding	No
Jacket Type	CM
Device Supported	Network Device
American Wire Gauge	24 AWG
Data Transfer Rate	1 Gbit/s
Boot Type	Snagless
Boot Type	Molded
Features	Damage Resistant
Features	Strain Relief
Features	Stranded
Features	Minimized Near-End Crosstalk (NEXT)
Physical Characteristics
Color Family	Green
Product Color	Green
Jacket Color	Green
Product Material	Copper
Jacket Material	Polyvinyl Chloride (PVC)
Material Details	Copper - Conductor
Shipping Height	16"
Shipping Width	18"
Shipping Weight (Approximate)	1.60 lb
Miscellaneous
Package Contents	Cat6 Patch Cable 5-ft. Cat6 Green Gigabit Patch Cord Snagless Molded
Additional Information	Drastically reduce impedance & structural return loss compared to standard 100MHz wire. Integral strain relief Applications : For 1000 Base-T (1Gbps Ethernet), 10/100 Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring TYPE 3 applications as well as EIA/TIA applications.
Certifications & Standards	IEEE 802.3ab IEEE 802.5 ANSI/EIA/TIA 568 ISO/IEC 11801 ETL (category 6 draft 11)
Environmentally Friendly	Yes
Country of Origin	China
Warranty
Limited Warranty	Lifetime

General Information
Type	Cat 6
Connector End A	RJ45
Connector End A Pin Count	8
Connector End B	RJ45
Connector End B Pin Count	8
Gender	Male / Male
Length	-
Color	-

•  5' Green Cat6 Gigabit Snagless Patch Cable

Meets Category 6 cabling standards
With Tripp Lite's category 6 molded patch cables you can stay ahead of the game by using this high-speed cable to distribute data, voice and video. These cables deliver stable performance up to 550MHz. Each comes UL verified meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with high-quality copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum. Designed for use in category 6, category 5e and category 5 applications. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Features:
Meets category 6 cabling standards.
Premium cabling for category 6, category 5e and category 5 applications
Length: 5-ft. Color: green Connectors: RJ45 male
Drastically reduce impedance & structural return loss compared to standard 100MHz wire
High-quality copper wire and a staggered-pin plug design to keep near-end crosstalk levels to a minimum
Feature molded connectors with integral strain relief
Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation
PVC 4-pair stranded UTP
Deliver stable performance up to 550MHz/1Gbps communication
Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11)
Warranteed to be free from defects in materials and workmanship for life

System Requirements:
For 1000BASE-T (1Gbps Ethernet), 10/100BASE(Ethernet), 100Mps TPDDI, 155Mbps ATM, ISDN, voice and Token Ring TYPE 3 applications as well as EIA/TIA applications.
