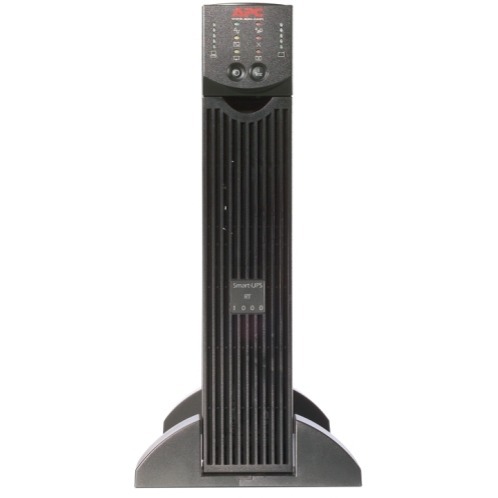

SURT1000XLI APC Smart-UPS RT 1000VA

Smart-UPS RT is a family of high preformance UPSs for servers, networking equipment, telecommunication systems, industrial and medical equipment, and other mission-critical applications. Smart-UPS RT UPSs are based on the field-proven, industry-leading Smart-UPS functionality, but features double conversion on-line topology, which delivers tight voltage and frequency regulation, zero transfer time to and from battery, and input power factor correction. While offering advanced performance and high availability features, the Smart-UPS RT can be managed using PowerChute software, as well as an array of SmartSlot accessories. Smart-UPS RT provides battery back up to the load through the use of internal batteries. However, an unlimited number of external battery packs can be added to meet desired levels of runtime. All Smart-UPS RTs and battery packs ship in tower configuration, while easily converting to the 19" rack-mount mode with the addition of an APC Rail Kit.

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SURT1000XLI
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Series	RT
Product Name	Smart-UPS RT 1000VA
Packaged Quantity	1 Each
Product Type	Double Conversion Online UPS
Technical Information

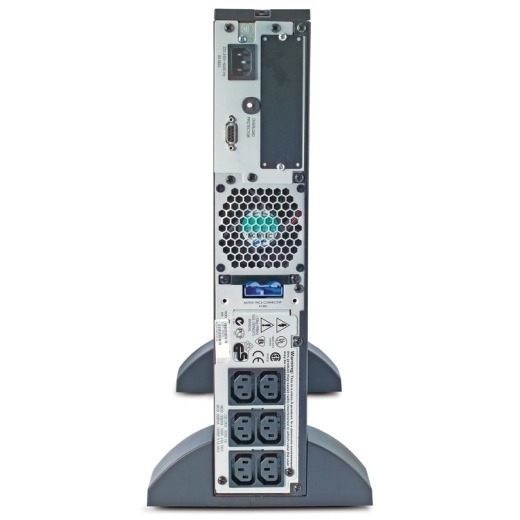

Plug/Connector Type	IEC 320-C14
Receptacle Type	IEC 60320 C13
Receptacle Detail	2
Receptacle Detail	6 x IEC 60320 C13
Number of Battery & Surge Outlets	8
Bypass Switch	Automatic
Emergency Power OFF	Optional
Transfer Time	0 ns
Power Description
Load Capacity (VA)	1000 VA
Load Capacity (Watt)	700 W
Input Voltage	220 V AC
Output Voltage	230 V AC
Waveform Type	Sine Wave
Surge Energy Rating	420 J
Management
Alarm	Low Battery
Alarm	Overload
Alarm	On Battery
Battery Management	Intelligent Battery Management
Controls/Indicators
Status Indicators	LED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery, Overload and Bypass Indicators.
Interfaces/Ports
Serial Port	Yes
Total Number of Expansion Slots	1
Battery Information
Battery Characteristics	Spill-proof, Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	10.20 Minute
Backup/Run Time (Half Load)	24.40 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Environmental Conditions
Maximum Operating Temperature	122°F (50°C)
Sound Emission (A-Weighted)	50 dB(A)
Thermal Dissipation	70.04 W
Physical Characteristics
Color Family	Black
Product Color	Black
Height	3.4"
Width	17"
Depth	19"
Form Factor	Tower
Weight (Approximate)	50.60 lb
Miscellaneous
Package Contents	Smart-UPS RT 1000VA CD with software Smart UPS signalling RS-232 cable User manual
Additional Information	Automatic Self Test Automatic Shutdown Automatic Voltage Regulation (AVR) Built-in automatic bypass Cold-start Compact and Lightweight Designed and manufactured under ISO9001 / ISO14001 certification Downloadable Firmware Early-warning Problem Notification Faster Recharge Time Generator Compatible Input Power Factor Correction Lightning and Surge Protection Load Meter Multi-colored Flashing LED Network-grade line conditioning Overload Handling Capacity Programmable Frequency Scalable Run Time Surge Protection Temperature Compensated Battery Charging Terminal Mode Programmability Unattended Safe & Graceful Shutdown Up to 90% efficiency Web Management Wide input voltage range Multiple Output Voltages Configurable for 220 : 230 or 240 nominal output voltage
Certifications & Standards	C-tick CE EN 50091-1 EN 50091-2 EN 55022 Class A EN 60950 EN 61000-3-2 GOST PCBC VDE UL 1449
Environmentally Friendly	Yes
Warranty
Limited Warranty	2 Year

Smart-UPS RT is a family of high performance UPSs for servers, networking equipment, telecommunication systems, industrial and medical equipment, and other mission-critical applications. Smart-UPS RT UPSs are based on the field-proven, industry-leading Smart-UPS functionality, but feature double conversion on-line topology, which delivers tight voltage and frequency regulation, zero transfer time to and from battery, and input power factor correction. While offering advanced performance and high availability features, the Smart-UPS RT can be managed using PowerChute software, as well as an array of SmartSlot accessories. Smart-UPS RT provides battery back up to the load through the use of internal batteries. However, an unlimited number of external battery packs can be added to meet desired levels of runtime. All Smart-UPS RTs and battery packs ship in tower configuration, while easily converting to the 19" rack-mount mode with the addition of an APC Rail kit.
