VIKING ELECTRONICS LV-1K Line Verification Panel with Key

PRODUCT DETAILS

ASME A17.1-2010 code requires that "the two-way communications means within the (elevator) car shall include a means to verify operability of the telephone line". When your local municipality adopts this ASME A17.1 code the LV-1K can be added to fulfill all requirements for visual and audible signaling when it is determined the elevator phone line is not functioning.

The LV-1K elevator phone line verification panel is essentially ­­­­­four products in one. First, it can be added to any new or existing Viking 1600A Series elevator emergency as a single phone stand alone solution. With the LV-1K installed, the 1600A Series phone will check the elevator phone line for actual dial tone on a daily basis. The LV-1K also continuously monitors for loss of Talk Battery voltage and will immediately provide an audible and visual indication when the elevator phone line has been accidentally cut or disconnected.

Second, it can be wired to a Viking model LC-6 six port concentrator, to provide visual and audible signaling for any grouping of elevators that are controlled by the same "FIRE RECALL" switch. The LC-6 not only allows 2 to 6 Viking elevator emergency phones share the same LV-1K Line Verification Panel, but it also allows the cost savings of those phones being able to share a single telephone line, and still meet all requirements of ASME A17.1.

Third, it can be added to any Viking 1600-IP Series elevator emergency phone as a stand alone solution. The LV-1K continuously monitors the 1600-IP Series phone's relay output for a loss of PoE power or communication with the server. The LV-1K will immediately provide an audible and visual indication when the LAN connection has been accidentally cut, disconnected or is out-of-service.

Fourth, since the LV-1K continuously watches for loss of Talk Battery voltage, it can be used to provide an audible and visual indication when any analog station or telephone line has been accidentally cut or disconnected from any telecom device.

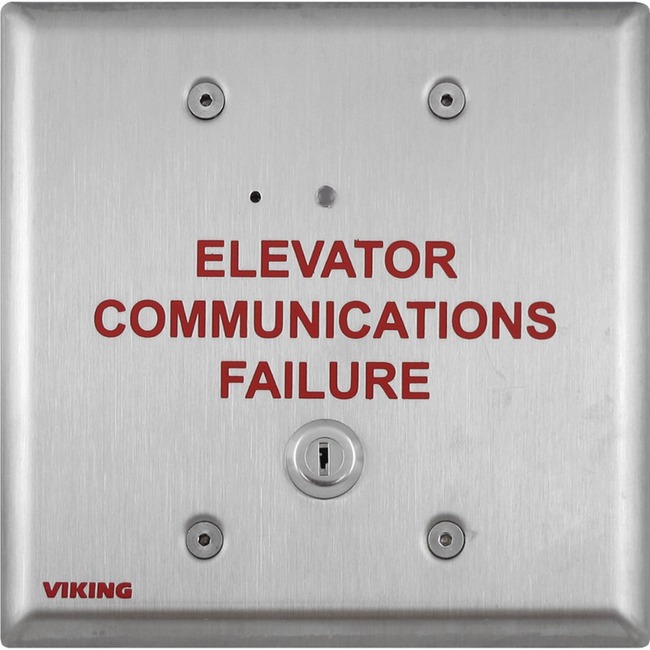

In accordance to ASME A17.1, the LV-1K is labeled "ELEVATOR COMMUNICATION FAILURE" in ¼" high red letters, and will sound an audible signal every 30 seconds and flash a red light when a telephone line fault is detected. Authorized personnel can silence the audible signal with the included key switch. The LED will remain flashing until the fault is corrected.
