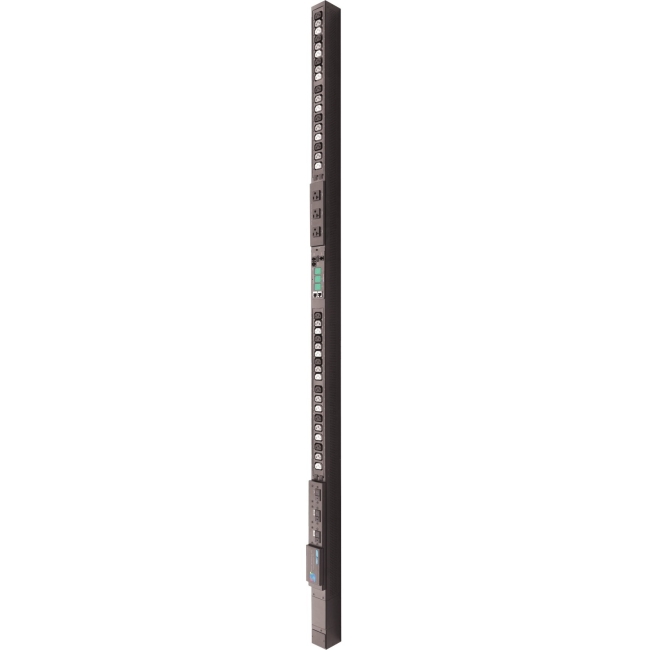

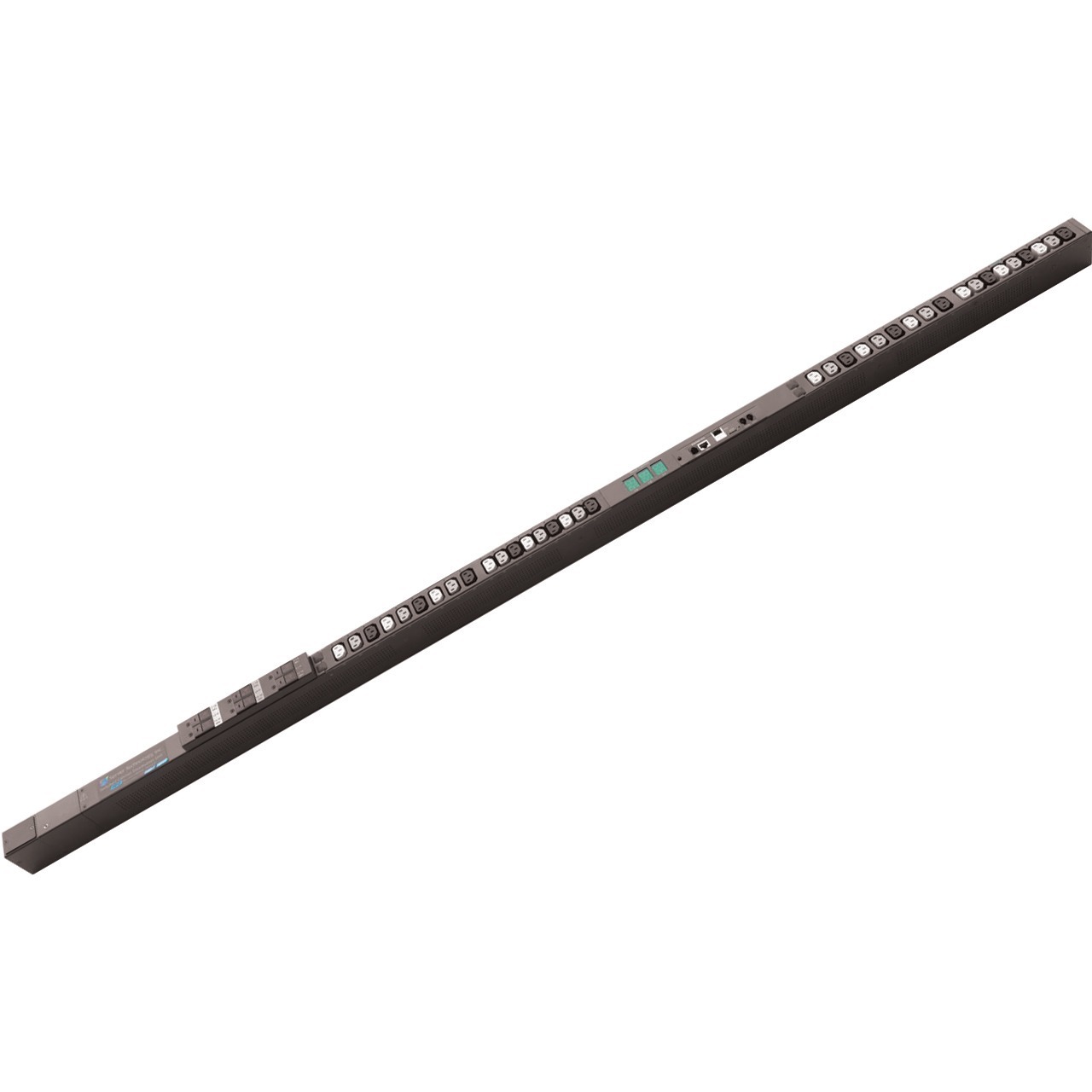

SERVER TECHNOLOGY C2W36CE-DCMFA900 SWITCHED MASTER PRO2 (36) CONFIGURABLE ALT PHASE HDOT OUTLETS, 208V 3PH DELTA 3B

The Server Technology PRO2 Switched Rack PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched "Master" PDU can be connected to as many as three PRO2 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

General Information
Manufacturer	Server Technology, Inc
Manufacturer Part Number	C2W36CE-DCMFA900
Manufacturer Website Address	http://www.servertech.com
Brand Name	Server Technology
Product Series	PRO2
Product Name	PRO2 36-Outlets PDU
Product Type	PDU
Technical Information
Plug/Connector Type	NEMA L15-20P
Receptacle Type	IEC 60320 C13
Receptacle Detail	36 x IEC 60320 C13
Protection Type	Circuit Protection
Power Description
Input Voltage	230 V AC
Output Voltage	120 V AC
Output Voltage	230 V AC
Power Rating (Watt)	8600 W
Input Current	30 A
Physical Characteristics
Mount Type	Rack-mountable
Rack Height	0U
Height	70"
Width	2.2"
Depth	2.5"
Weight (Approximate)	22.05 lb
Miscellaneous
Certifications & Standards	cTUVus
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
