CA-1E6-00S1WN-00 Thermaltake Suppressor F1 Mini ITX Chassis

The new Suppressor F1 is an ITX based chassis with a 200mm fan in the brushed front panel. Smart interchangeable side panels allow users to flip it accordingly to showcase either for superior liquid cooling or superb airflow, which allows you to make your own personal setup, having a really powerful mini system.

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Chamber Design

Suppressor F1 has divided into two main chambers: the upper chamber is made for cooling performance and efficiency, and the lower chamber is made for PSU and cable management. With the aid of the removable 2.5"/3.5" drive device racks, users can enjoy to the freedom of gain the maximum interior space for advance cooling performance or liquid system build.

Outstanding Ventilation

With a promising cooling ability, Suppressor F1 has various mounting points to supports all types of cooling systems that includes DIY/AIO liquid cooling systems and air cooling units. A large 200mm fan is preinstalled in the front, along with two optional 80mm turbo fans at the rear, guarantee to hold up any type of gaming system.

Interchangeable Side Panel

Symmetrical panels allow users to build the system with personality. Play around the panels accordingly for either the best viewing presentation or cooling performance. Two magnetic side filters are removable, users can freely make adjustment. Also, a removable PSU dust filter and adjustable shockproof rubbers is built with the bottom panel of the chassis to prolong the PSU usage.

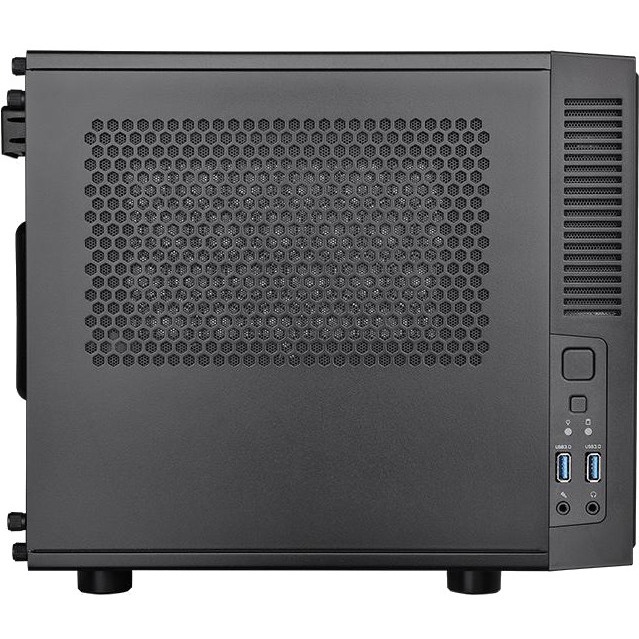

Handy I/O Ports

Design with convenience and cleanness in mind, Suppressor F1 has built in dual USB 3.0 and HD audio connectors together with the Power and Reset Button on the side of front panel, which not only keep the panel clean and simple, it also grants a direct and easy access for external devices.

Great Expansion in Compact Size

Suppressor F1 is designed with high-end gaming system compatibility, gamers can easily install up to 4 data storage devices with the modular drive racks, a dual expansion slot VGA with the length up to 255mm, a tower CPU cooler with height up to 140mm, together with a high wattage PSU of length up to 180mm, and still offers a 80mm cable management space.

General Information
Manufacturer	Thermaltake Technology Co., Ltd
Manufacturer Part Number	CA-1E6-00S1WN-00
Manufacturer Website Address	http://www.thermaltakeusa.com
Brand Name	Thermaltake
Product Line	Suppressor
Product Model	Suppressor F1
Product Name	Suppressor F1 Mini ITX Chassis
Product Type	Gaming Computer Case
Technical Information
Motherboard Supported	Mini ITX
Number of Fans Supported	5
Number of Fans Installed	1
Installed Fan Size	7.87"
Bays
Number of External 5.25" Bays	0
Number of External 3.5" Bays	0
Number of Internal 3.5" Bays	2
Number of Internal 2.5" Bays	2
Number of Total Expansion Bays	4
I/O Expansions
Total Number of Expansion Slots	2
Interfaces/Ports
Total Number of USB Ports	2
Total Number of Audio In Ports	1
Total Number of Audio Out Ports	1
Power Description
Power Supply Installed	No
Number of Power Supplies Supported	1
Number of Power Supplies Installed	0
Physical Characteristics
Color Family	Black
Product Color	Black
Product Material	Plastic
Product Material	SPCC
Height	10.9"
Width	10.2"
Depth	12.6"
Weight (Approximate)	7.05 lb

Specifications

• Mfr Part Number: CA-1E6-00S1WN-00
• Features:
  • Thermaltake Suppressor F1 Mini ITX Chassis
  • Chamber Design
  • Outstanding Ventilation
  • Interchangeable Side Panel
  • Handy I/P Ports
  • Great Expansion in Compact Size
• Case Type: Mini-ITX Cube Case
• Color: Exterior & Interior - Black
• Material: SPCC
• M/B Type: Mini ITX (6.7" x 6.7")
• Drive Bays: 4
  • Internal Bay: 2x 3.5", 2x 2.5"
• Expansion Slots: 2
• Cooling System:
  • Front: 1x 120/140/200 Fan Vent (1x 200 x 200 x 30 mm Fan is inchlded, 800rpm, 13dBA)
  • Rear: 2x 80 mm Fan Vents (Fans not included)
  • Radiator Support:
    • Front: 1x 120/140mm
• Side Windows: Transparent Window (Interchangeable)
• Front I/O Panel: 2x USB 3.0 Ports, 1x HD Audio
• Maximum Compatibility:
  • VGA Card Length Limitation: 255mm (Inner chassis), 285mm (Outer chassis)
  • CPU Cooler Height Limitation: 140 mm
  • PSU Length Limitation: 200mm
• Power Supply: None, Supports Standard PS2 Power Supply
• Dimensions (WxDxH): 10.2 x 12.6 x 10.9 inch / 260.0 x 319.0 x 276.0 m
• Weight: 7.1 lbs / 3.2 kg
