320X2128 LSI Logic MegaRAID SCSI 320-2 RAID Controller

Mfg Part Number:  320X2128

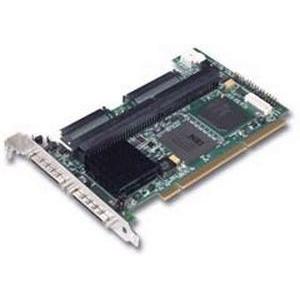

Image may not reflect the actual item.
Price: $79.98 + Free Shipping
Quantity:
In Stock: 1
Last Updated: Jun 16, 2025
No Sales Tax except these states
, PO and Wire.

The MegaRAID SCSI 320-2X offers system builders a robust and powerful RAID solution designed around a high-speed PCI-X host interface for maximum data throughput and fault tolerant data protection. The highly flexible design features two internal and two external Ultra320 SCSI connectors for maximum storage connectivity. Its a half-length form factor offers space-saving configurability for today's rack-mount and appliance chassis architectures.

By leveraging a powerful yet reliable RAID engine with advanced features, including: 64-bit addressing support, flexible memory and caching policies, easy-to-use management utilities, and quick installation and setup capabilities, the MegaRAID SCSI 320-2X is quickly becoming the preferred Ultra320 RAID solution of OEMs, system integrators and value added resellers (VARs) worldwide.

Main Specification
General Information
Manufacturer LSI Logic Corp
Manufacturer Part Number 320X2128
Manufacturer Website Address http://www.lsilogic.com
Brand Name LSI Logic
Product Line MegaRAID
Product Model MegaRAID SCSI 320-2
Product Name MegaRAID SCSI 320-2 RAID Controller
Product Type SCSI Controller
Technical Information
Host Interface PCI-X
Controller Type Ultra320 SCSI
RAID Supported Yes
RAID Levels 10
RAID Levels 5
RAID Levels 0
RAID Levels 1
Number of Physical Drive Supported 30
Number of Logical Drive Supported 40
Maximum Data Transfer Rate 320
Interfaces/Ports
Total Number of SCSI Ports 4
Number of SCSI Ports (Internal) 2
Number of SCSI Ports (External) 2
SCSI Connector Details 2 x VHDCI
SCSI Connector Details 2 x HD-68
Physical Characteristics
Height 4.2"
Width 6.9"
Form Factor Plug-in Card
Miscellaneous
Additional Information

Power requirements:

  • 3.3V
  • 5V
  • +12V
  • -12V

Raid Features:

  • Background initialization for Quick RAID 5 setup
  • Full (standard) Initialization of Logical Disks
  • FlexRAID:
  • Online Capacity Expansion and RAID Level Migration
  • FlexRAID Power Fail Option:
  • Auto resume during reconstruction if the system shuts down
  • Microsoft Server Clustering Support (MSCS):
  • Hardware support
  • MSCS support via unified firmware
  • Random logical drive deletion without bringing the system down
  • Variable stripe size for all logical drives
  • Multiple Cache Policies setting On Logical Drive Basis:
  • Write-back
  • Write-through
  • Read-ahead: Disable/Enable
  • Adaptive and Cache/Direct I/O
  • Adjustable task rate:
  • Check Consistency and Rebuild Progress
  • Force Boot option
  • Drive Roaming
  • Drive Coercion
  • Mixed capacity/speed drives in same enclosure and in the same array

Fault Tolerance:

  • COD - Configuration On Disk and NVRAM
  • Auto detection of failed drives
  • Automatic and transparent rebuild of hot spare drives
  • Hot swapping new drives w/o bringing system down
  • Battery backed cache memory (optional)
  • Support for SAF-TE enclosure management
  • SMART monitoring
Compatibility
  • CD-ROM
  • Tape drives
Warranty
Limited Warranty 3 Year
product information
Main Specifications
Product Description LSI Logic MegaRAID SCSI 320-2X - storage controller (RAID) - Ultra320 SCSI - PCI-X
Device Type Storage controller (RAID) - plug-in card
Interface Type PCI-X hot-plug 133 MHz
Dimensions (WxDxH) 6.9 in x 4.2 in
Controller Interface Type Ultra320 SCSI
Data Transfer Rate 320 MBps
Buffer Size 128 MB
Supported Devices Disk array (RAID)
Channel Qty 2
Max Storage Devices Qty 30
RAID Level RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
System Requirements Red Hat Linux 9, Microsoft Windows 2000, Novell NetWare 5.1, Microsoft Windows XP, Novell NetWare 6, SuSE Linux 8.1, Red Hat Linux 8.0, Red Hat Linux Advanced Server 2.1, SCO OpenServer 5.0.7, SuSE Linux Enterprise Server 8, Microsoft Windows Server 2003, UnixWare 7.1.3, Novell NetWare 6.5
Manufacturer Warranty 3 years warranty
General
Device Type Storage controller (RAID) - plug-in card
Interface Type PCI-X hot-plug 133 MHz
Depth 6.9 in
Height 4.2 in
Compatibility PC, Unix
Storage Controller
Controller Interface Type Ultra320 SCSI
Data Transfer Rate 320 MBps
Buffer Size 128 MB
Supported Devices Disk array (RAID)
Channel Qty 2
Max Storage Devices Qty 30
RAID Level RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Processor Intel IOP321
Expansion / Connectivity
Expansion Slot(s) 1 x memory
Interfaces 2 x storage - Ultra320 SCSI - 68 pin VHDCI (mini-Centronics) ( external )
2 x storage - Ultra320 SCSI - 68 pin HD D-Sub (HD-68) ( internal )
Compatible Slots 1 x PCI-X hot-plug 133 MHz - half-length
Software / System Requirements
OS Required Red Hat Linux 9, Microsoft Windows 2000, Novell NetWare 5.1, Microsoft Windows XP, Novell NetWare 6, SuSE Linux 8.1, Red Hat Linux 8.0, Red Hat Linux Advanced Server 2.1, SCO OpenServer 5.0.7, SuSE Linux Enterprise Server 8, Microsoft Windows Server 2003, UnixWare 7.1.3, Novell NetWare 6.5
